1.7 Step Indicator Update
What you are building

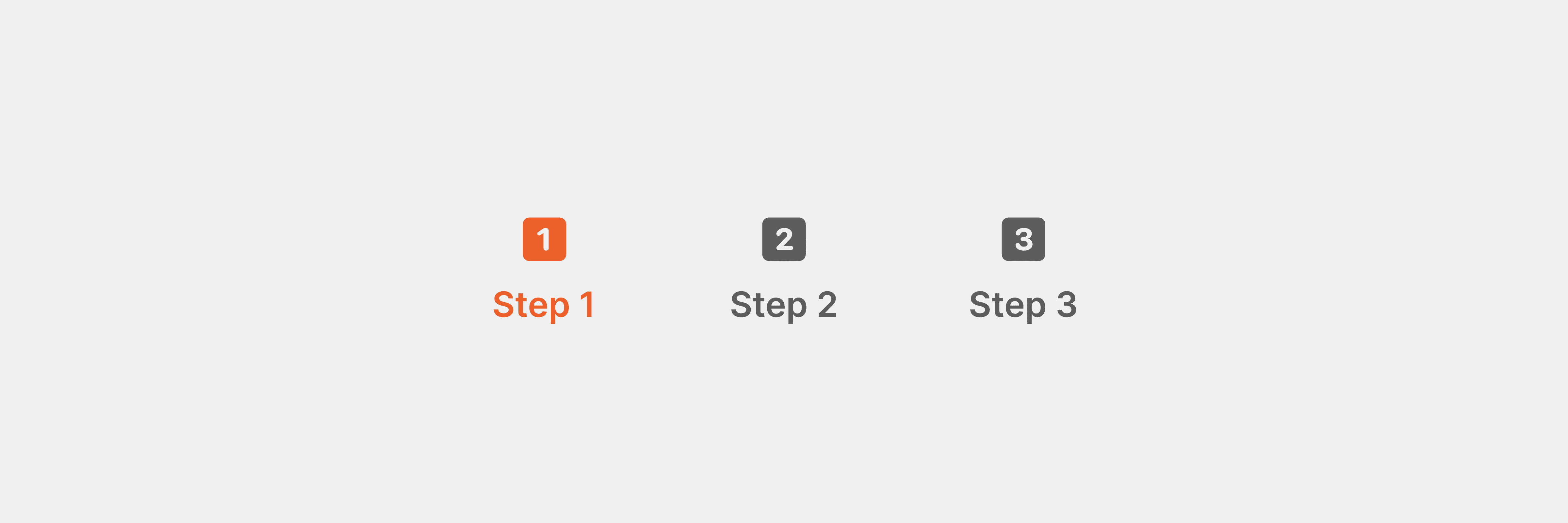

A step indicator that updates visually as the user progresses.
Tap Proceed to move forward.
Each step highlights in order.
This pattern is commonly used in onboarding, forms, and multi-step flows in iOS.
How to think about it
This interaction introduces explicit state tracking.
Instead of reading state from position or opacity, you now track it directly using a variable.
The UI listens to that variable and updates itself when the value changes.
Recreate this in ProtoPie

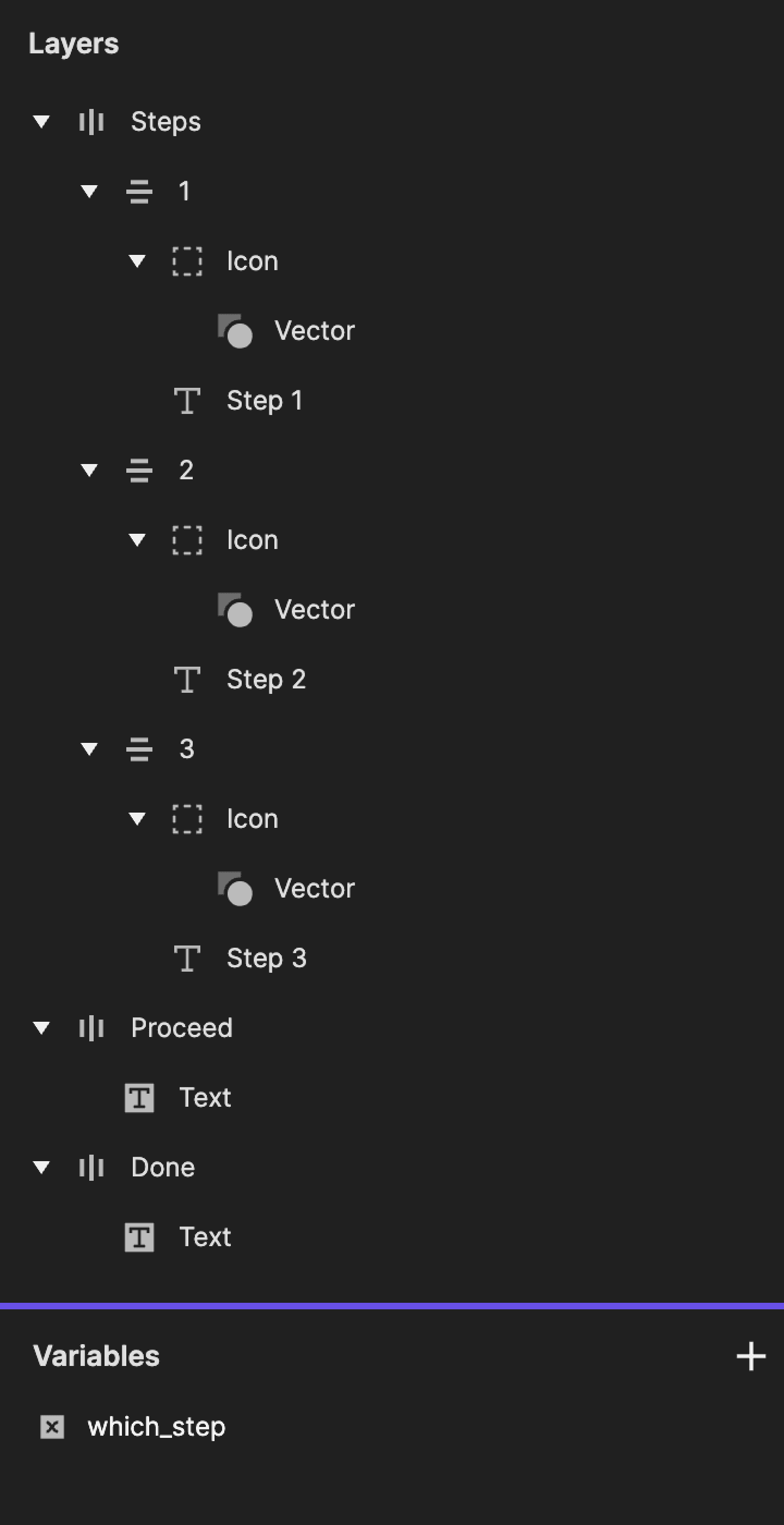

Start by creating a Steps container with three step items.
Each step includes:
An Icon (vector)
A Text label
Below the steps, create two buttons:
Proceed
Done
Create a variable named which_step.
Type: Number
Default value: 1
This variable represents the current step.

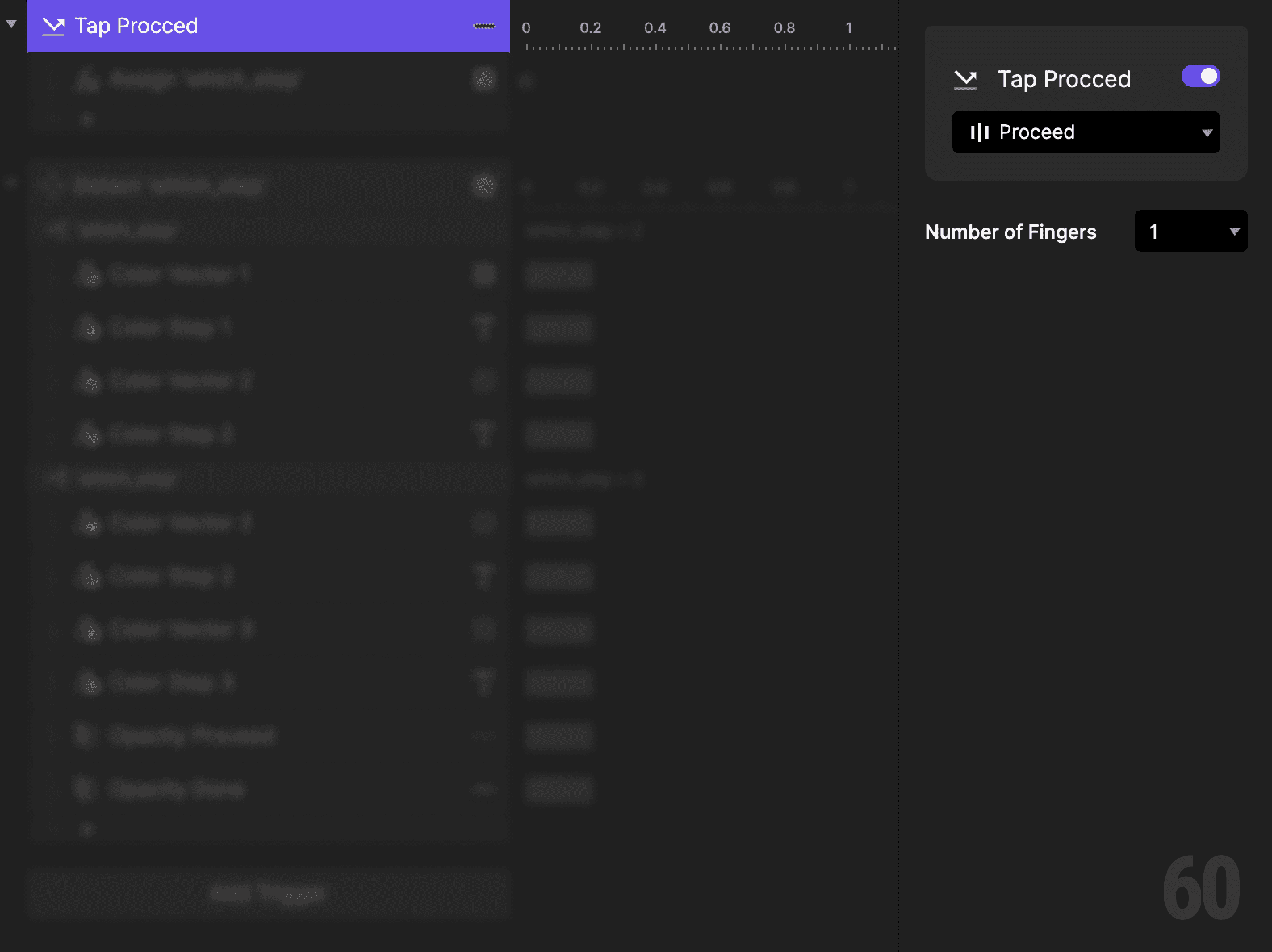

Step 1: Add tap trigger to Proceed
Select the Proceed button.
Add a Tap trigger.

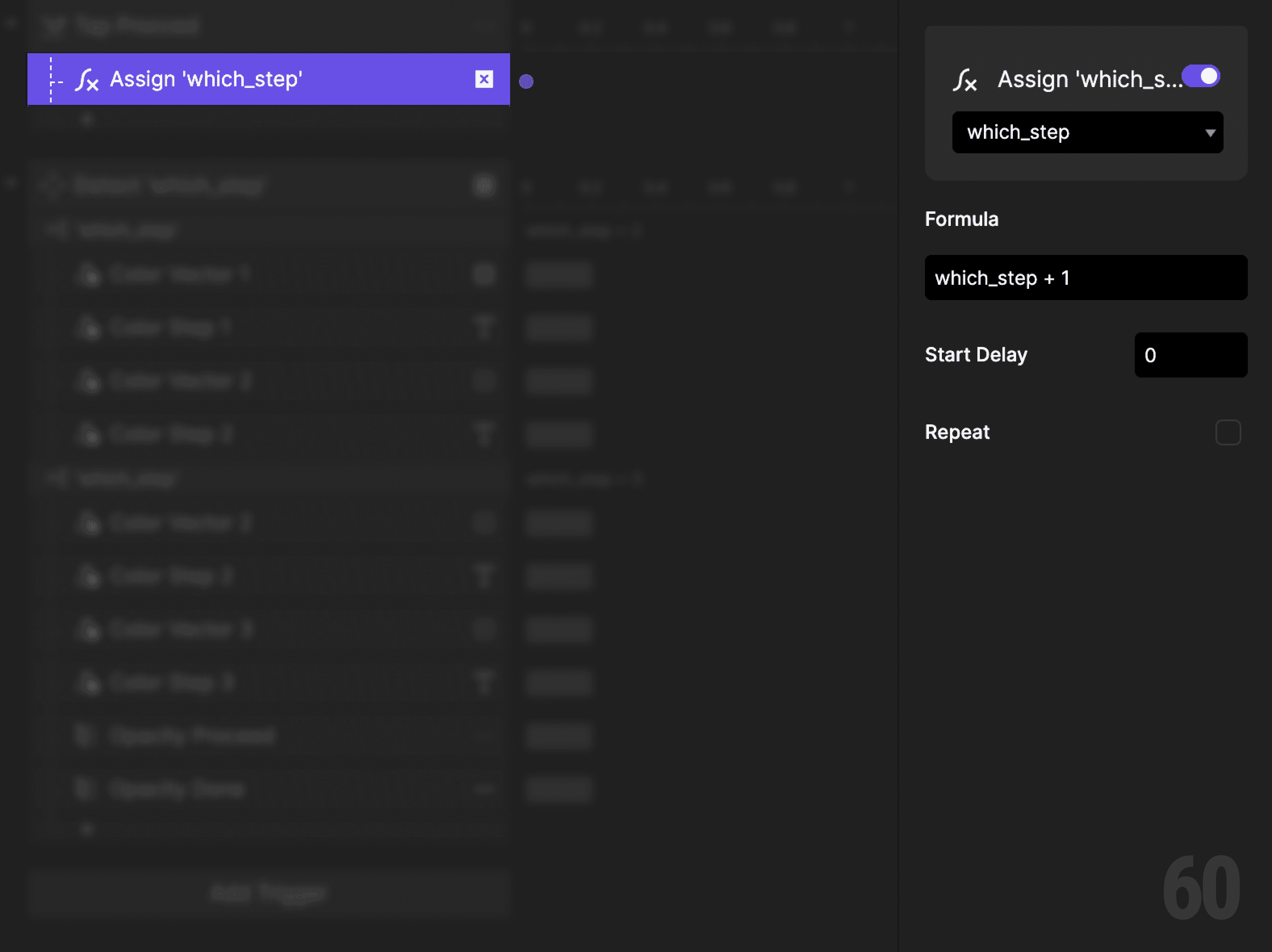

Step 2: Increment the step value
Add an Assign response.
Target variable: which_step
Formula: which_step + 1
Each tap moves the flow forward by one step.

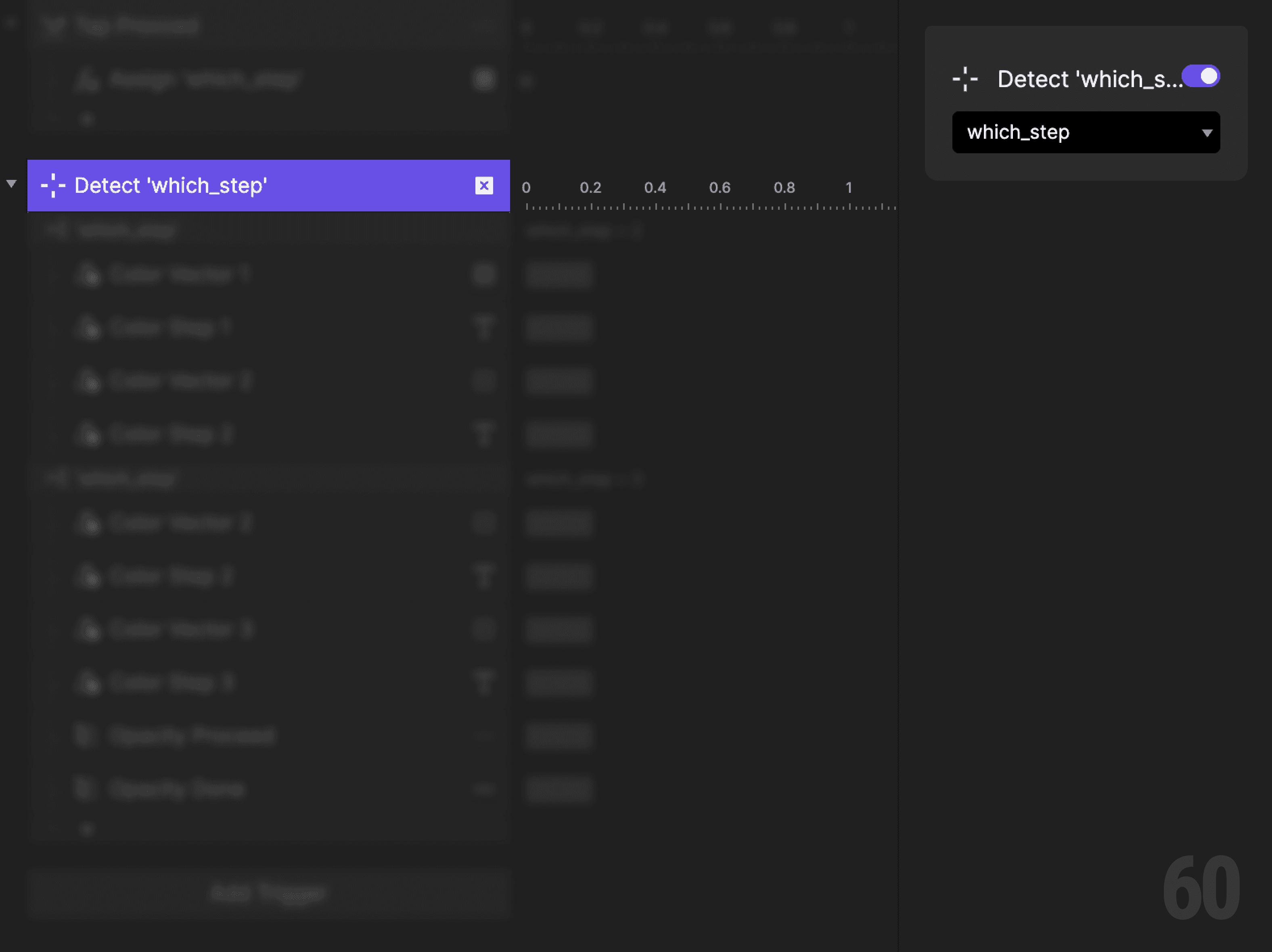

Step 3: Detect variable changes
Add a Detect trigger.
Variable: which_step
This allows the interface to react whenever the step changes.

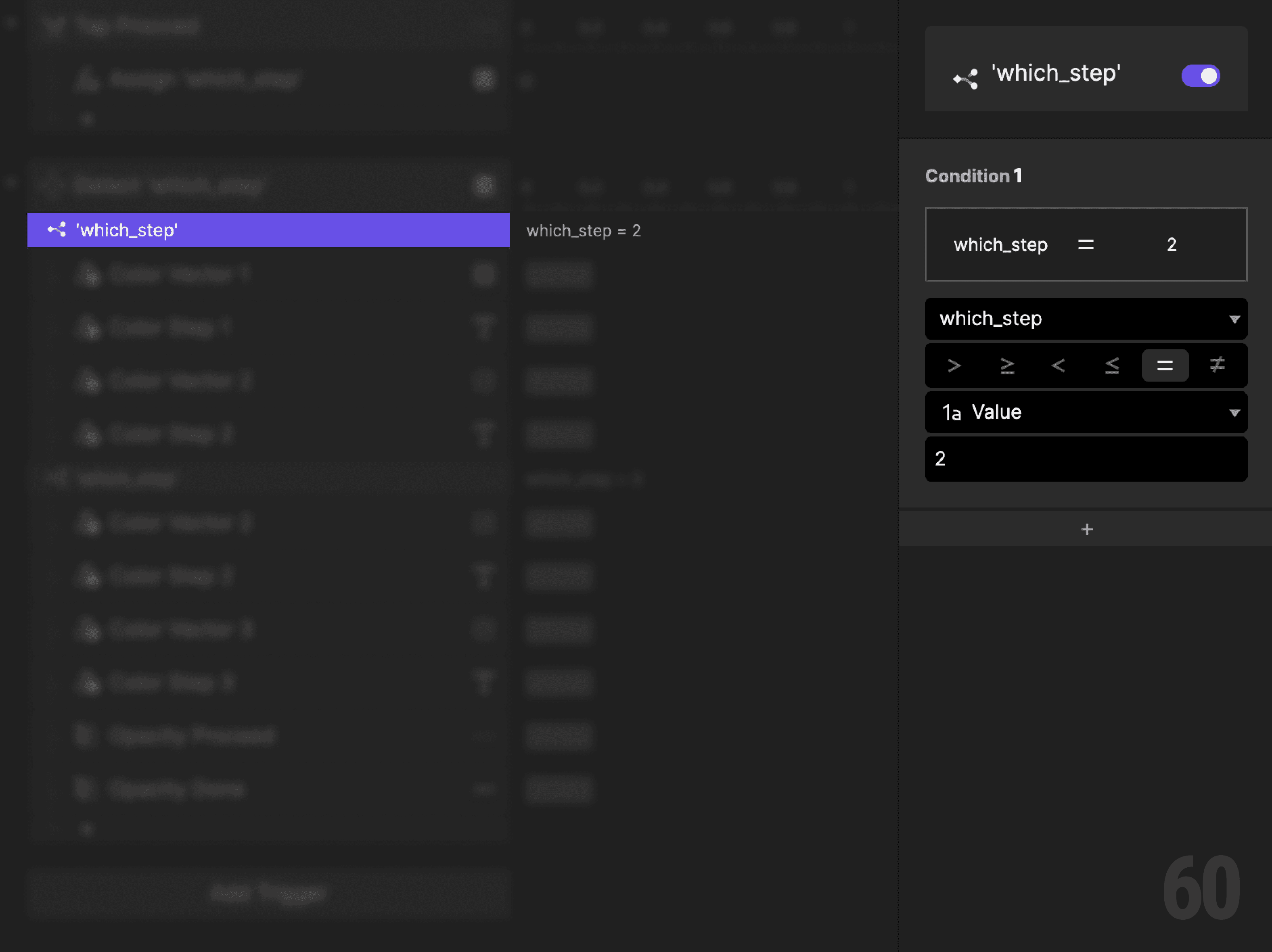

Step 4: Create a condition (Step 2)
Add a Condition to the Detect trigger.
This reads as:
When which_step equals 2, then do the following.

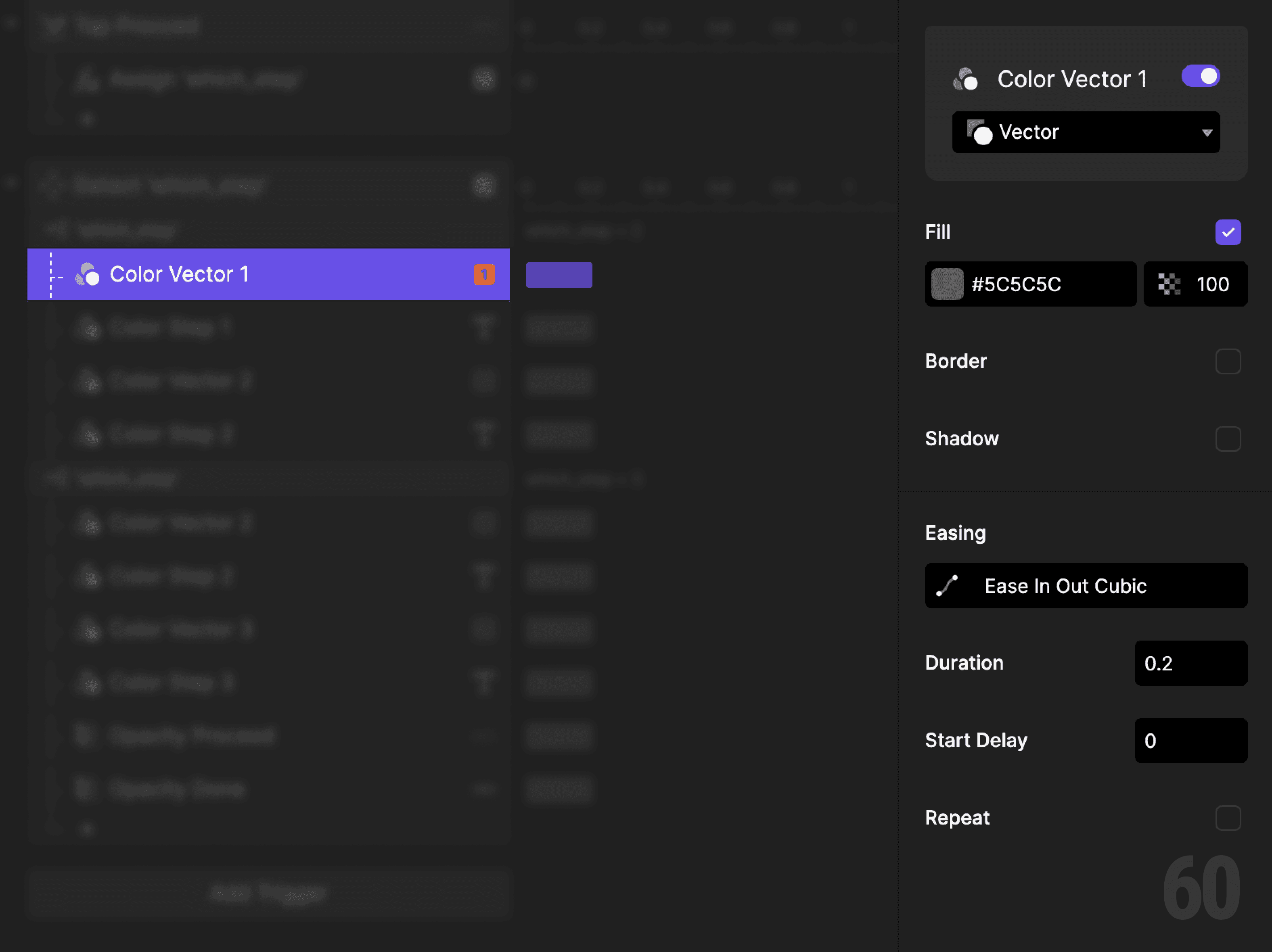

Step 5: Reset Step 1 styles
Add a Color response.
Target: Step 1 Vector
Set fill back to default

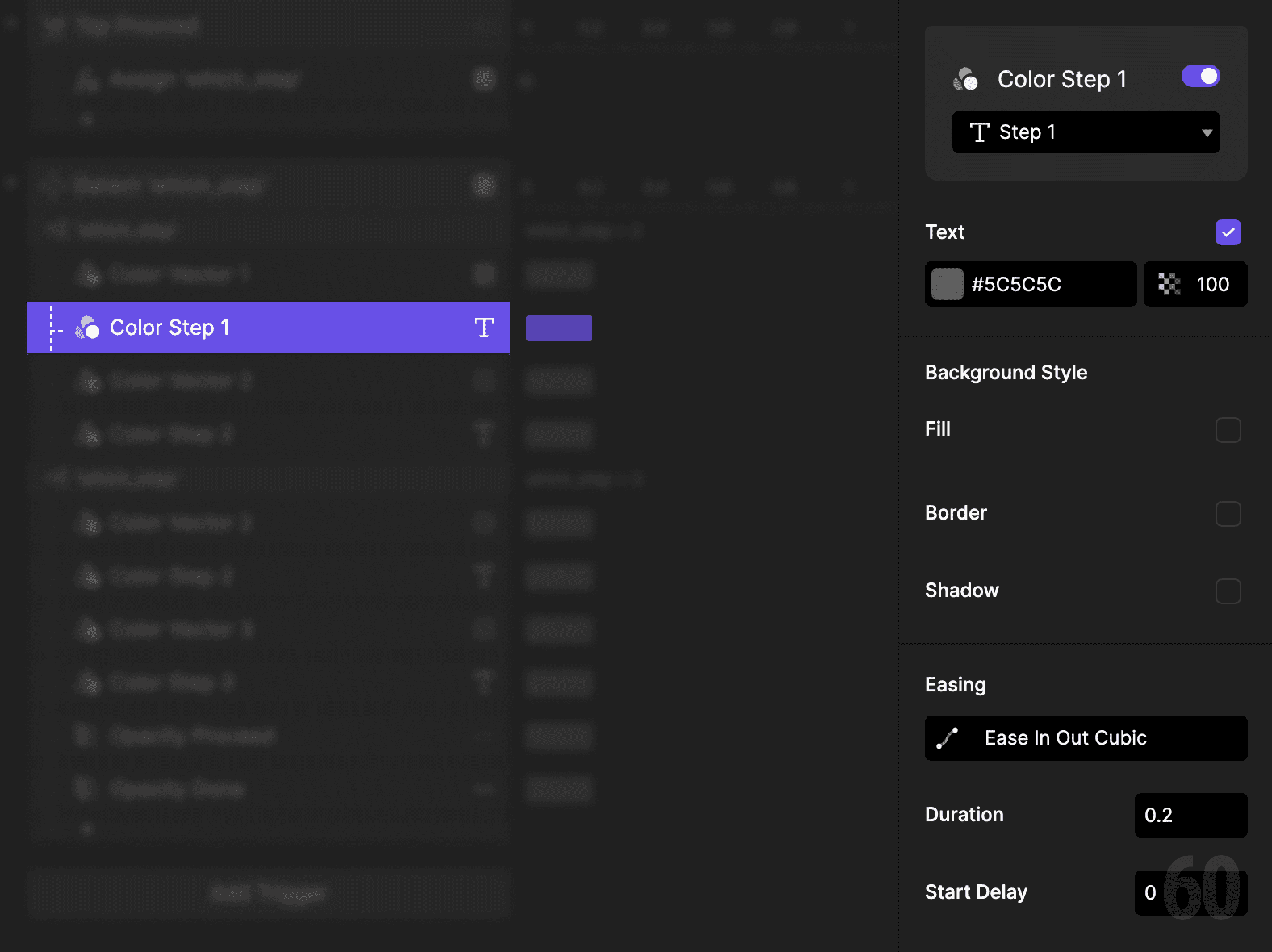

Step 6: Reset Step 1 text
Add another Color response.
Target: Step 1 Text
Set fill back to default

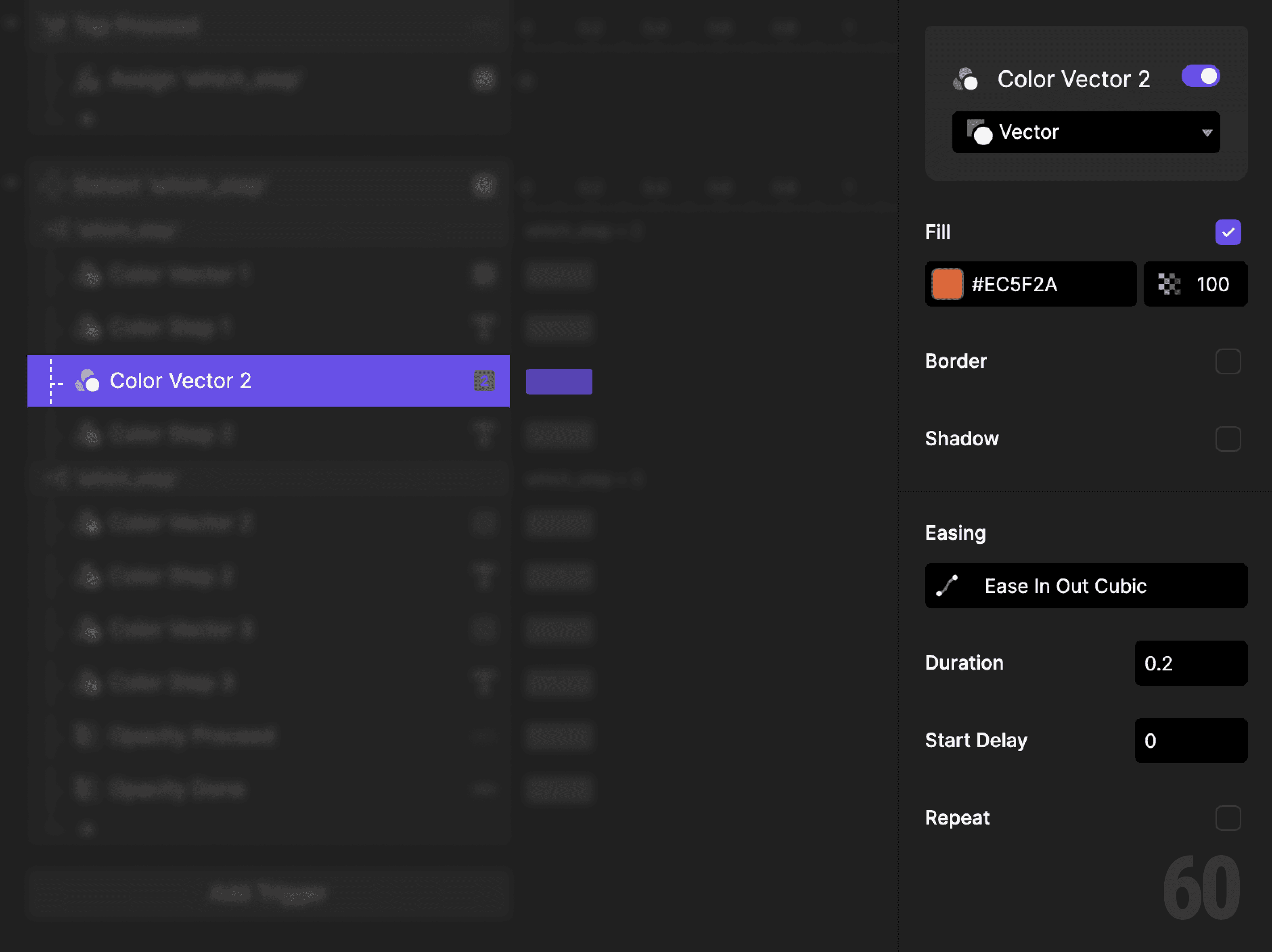

Step 7: Highlight Step 2 icon
Add a Color response.
Target: Step 2 Vector
Set fill to active color

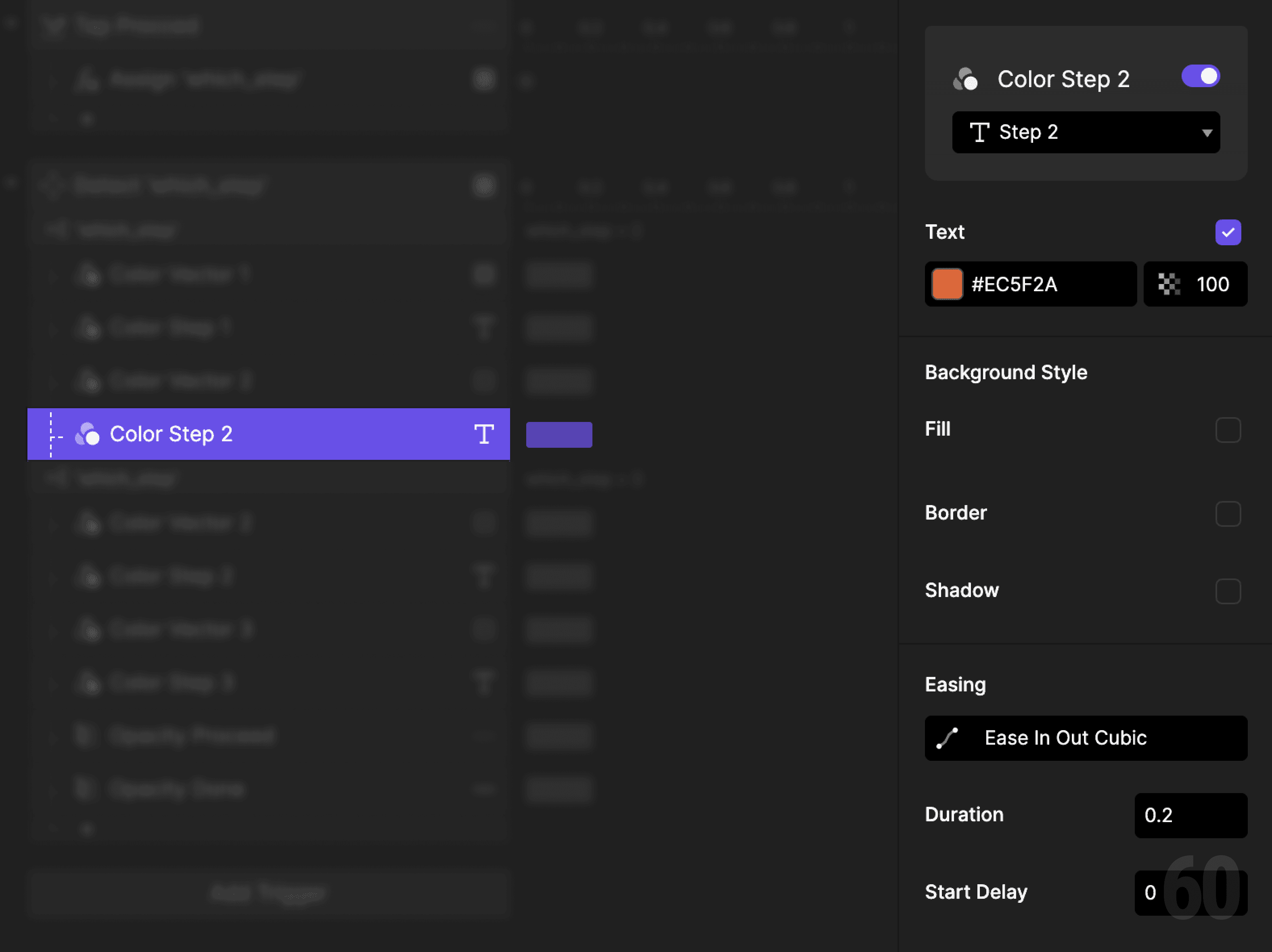

Step 8: Highlight Step 2 text
Add a Color response.
Target: Step 2 Text
Set fill to active color

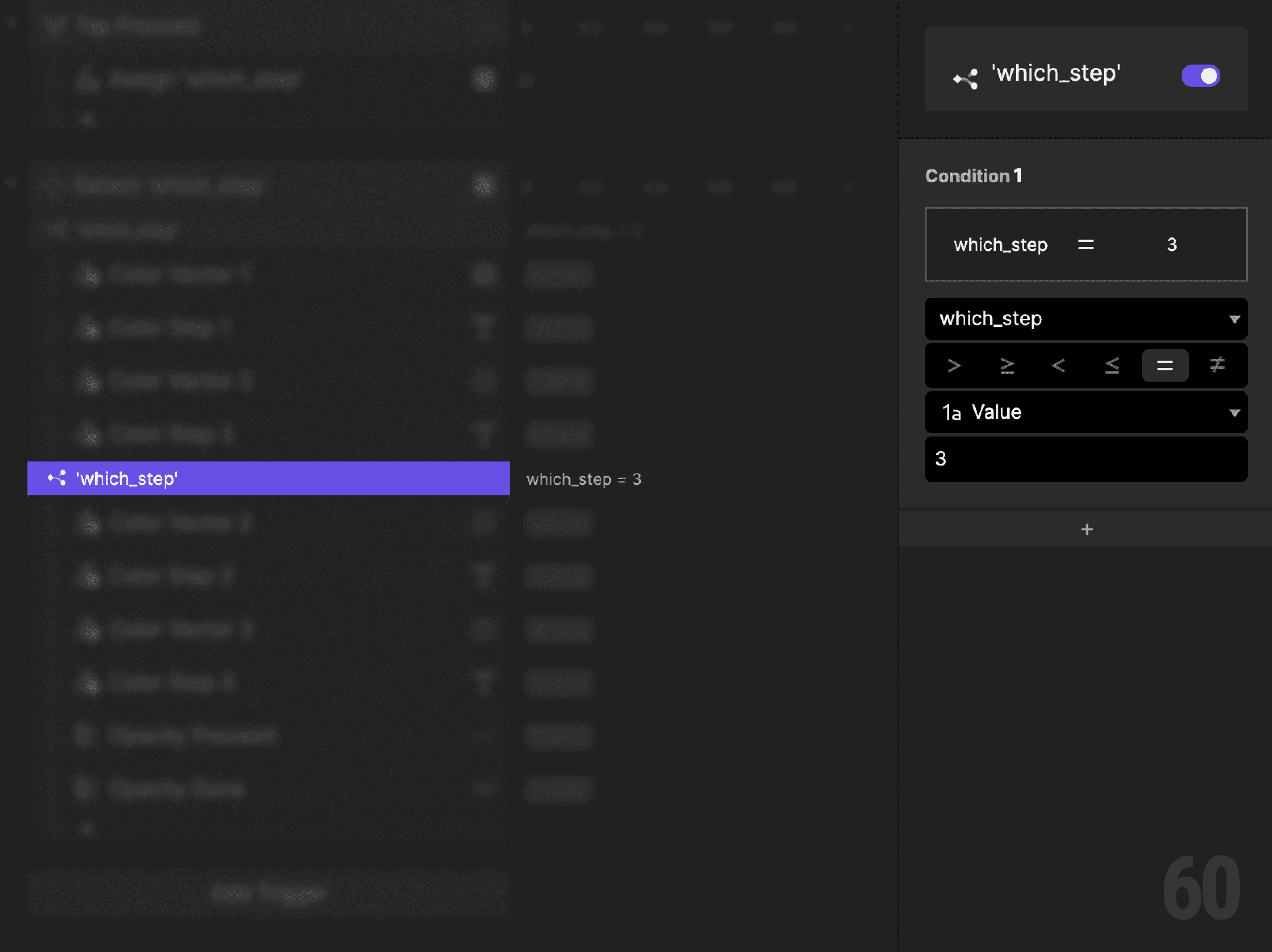

Step 9: Create a condition (Step 3)
Add another Condition to the Detect trigger.
This reads as:
When which_step equals 3, then do the following.

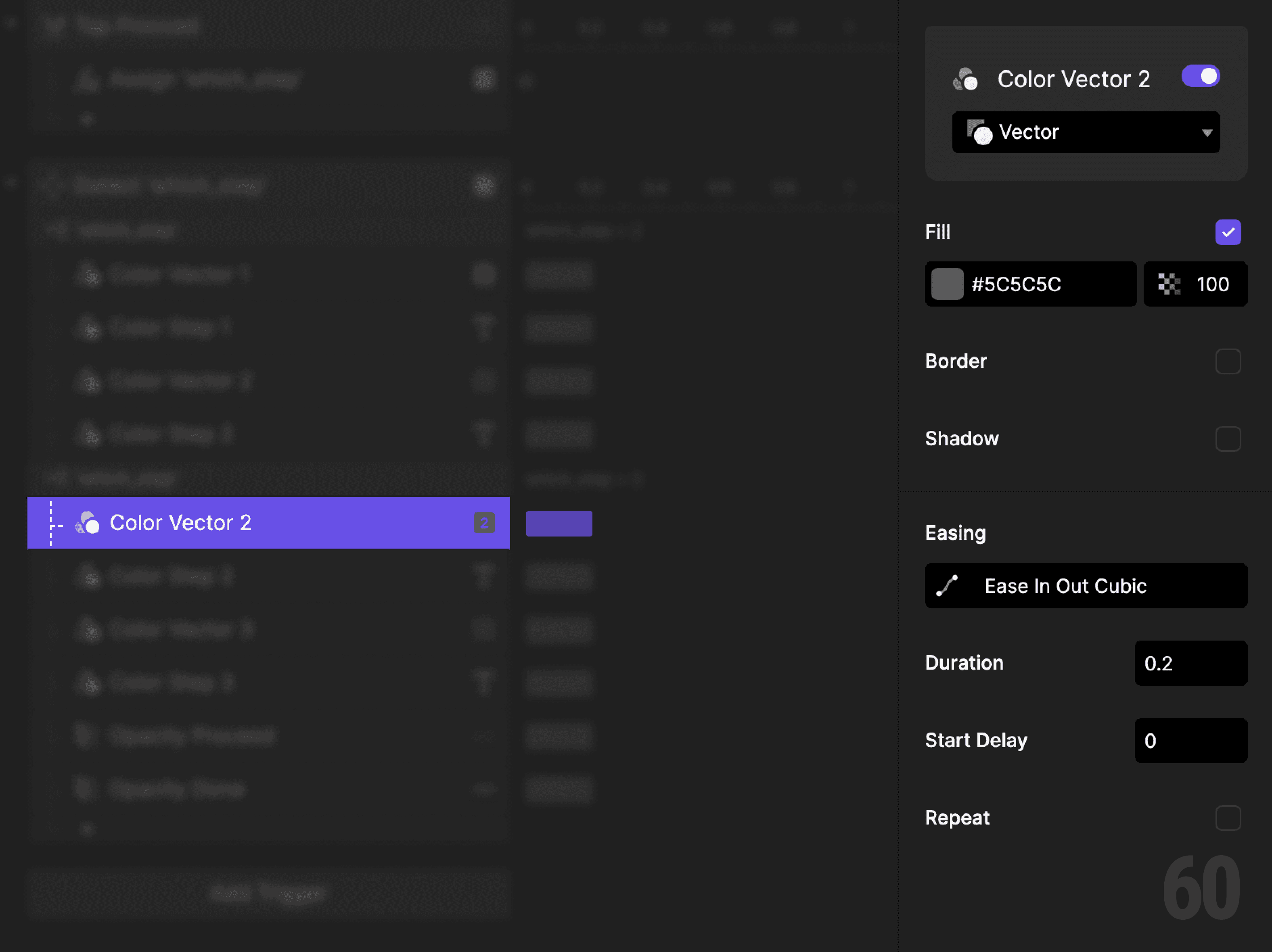

Step 10: Reset Step 2 icon
Add a Color response.
Target: Step 2 Vector
Set fill back to default

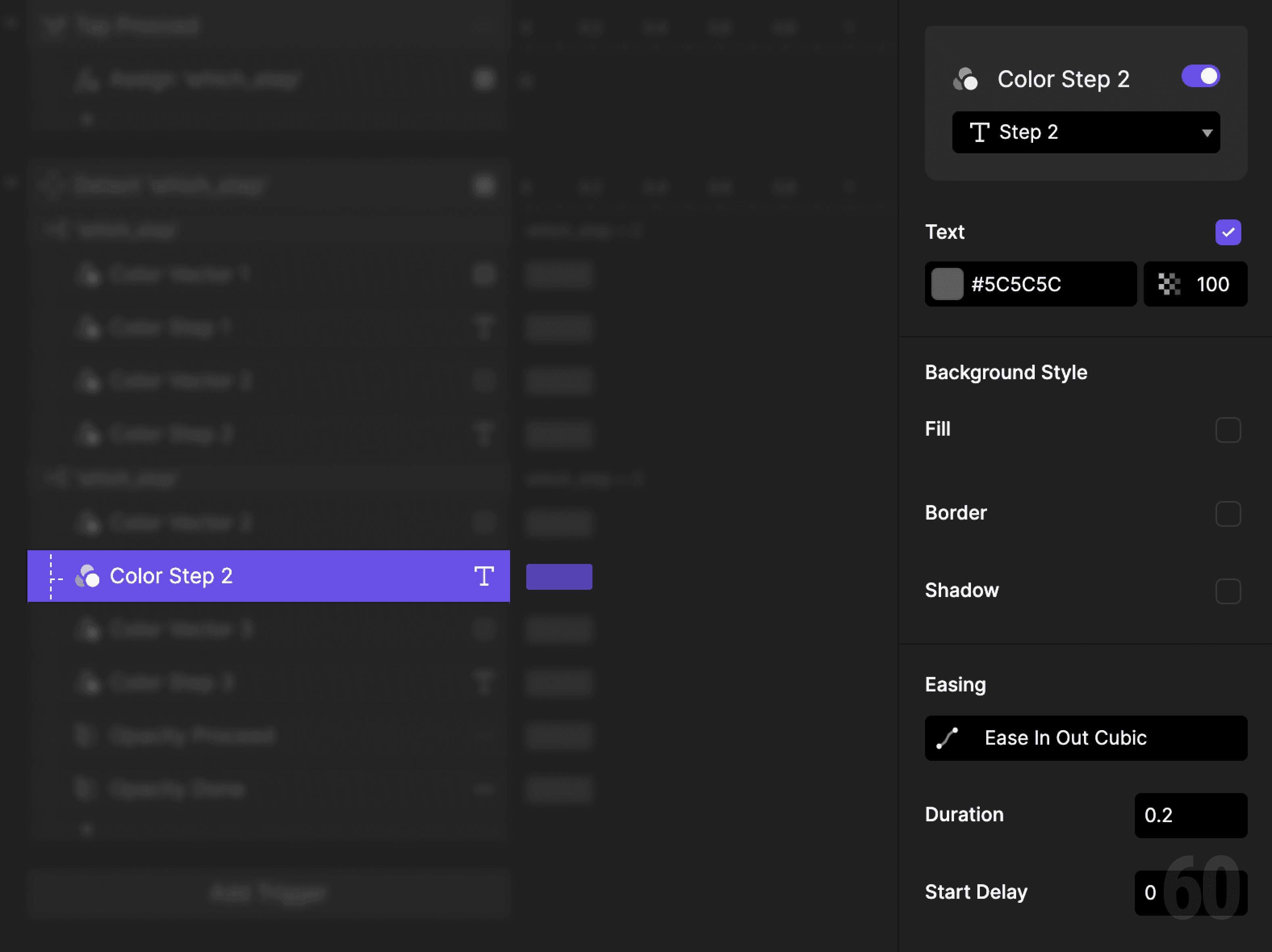

Step 11: Reset Step 2 text
Add a Color response.
Target: Step 2 Text
Set fill back to default

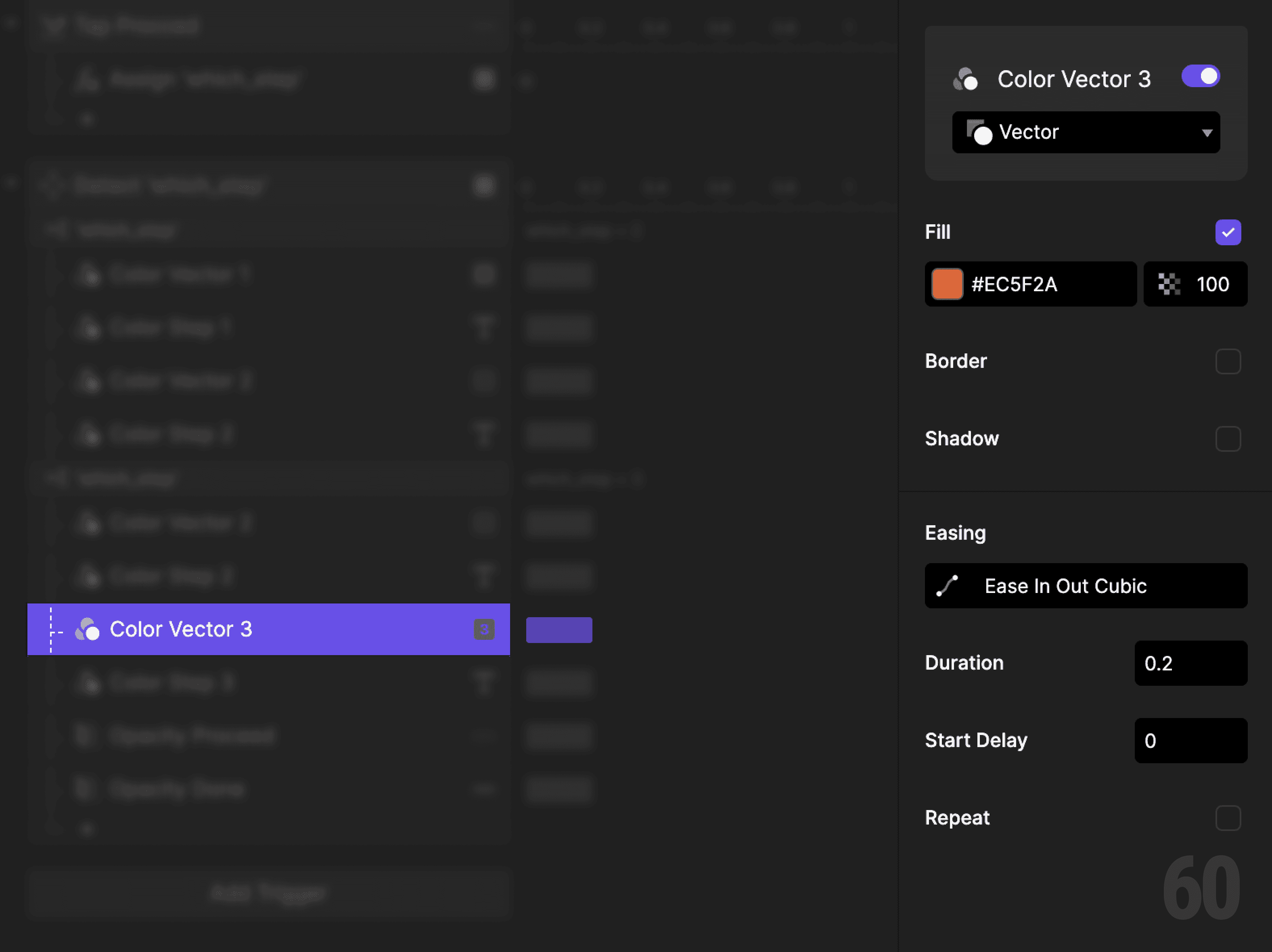

Step 12: Highlight Step 3 icon
Add a Color response.
Target: Step 3 Vector
Set fill to active color

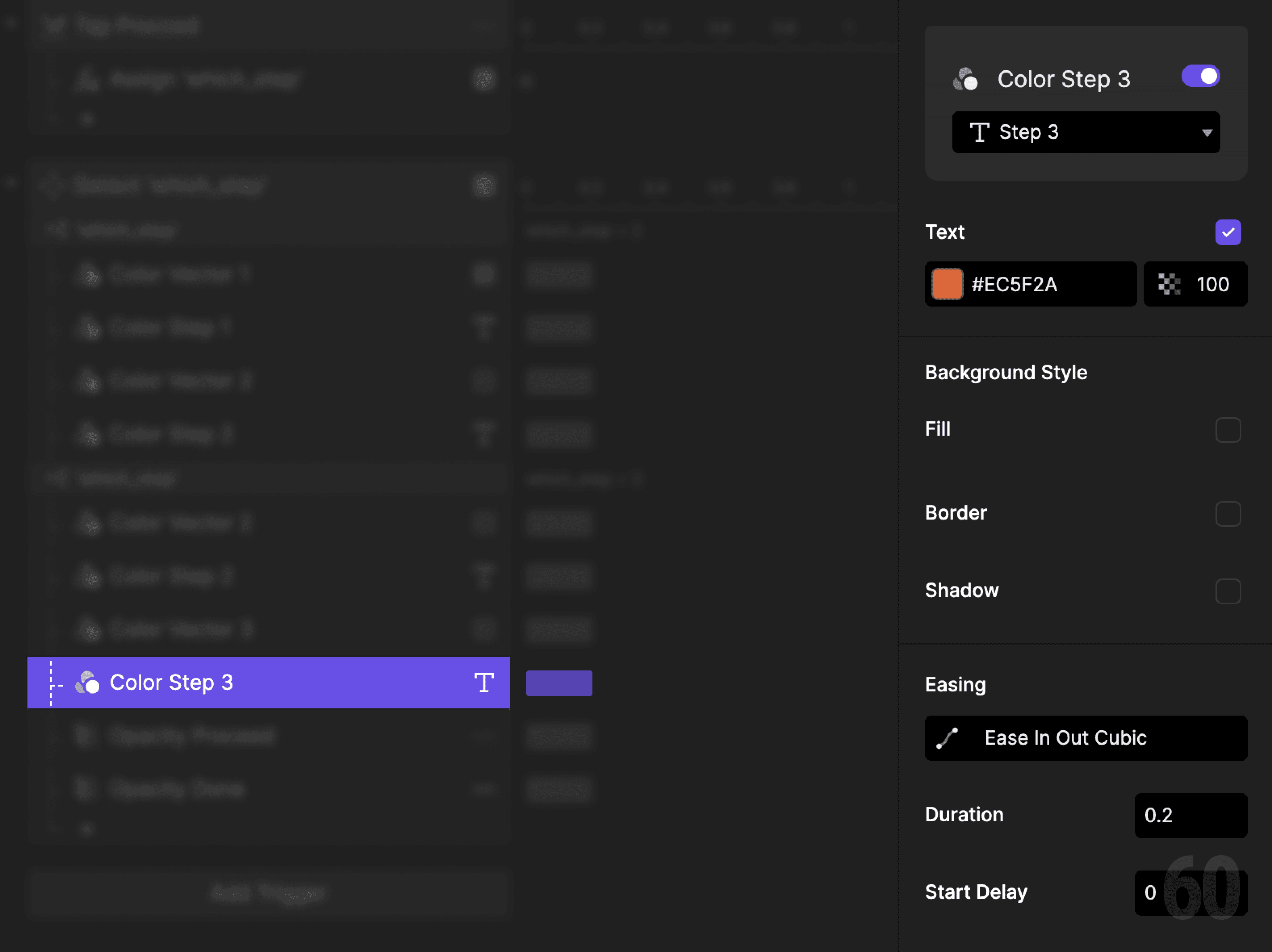

Step 13: Highlight Step 3 text
Add a Color response.
Target: Step 3 Text
Set fill to active color

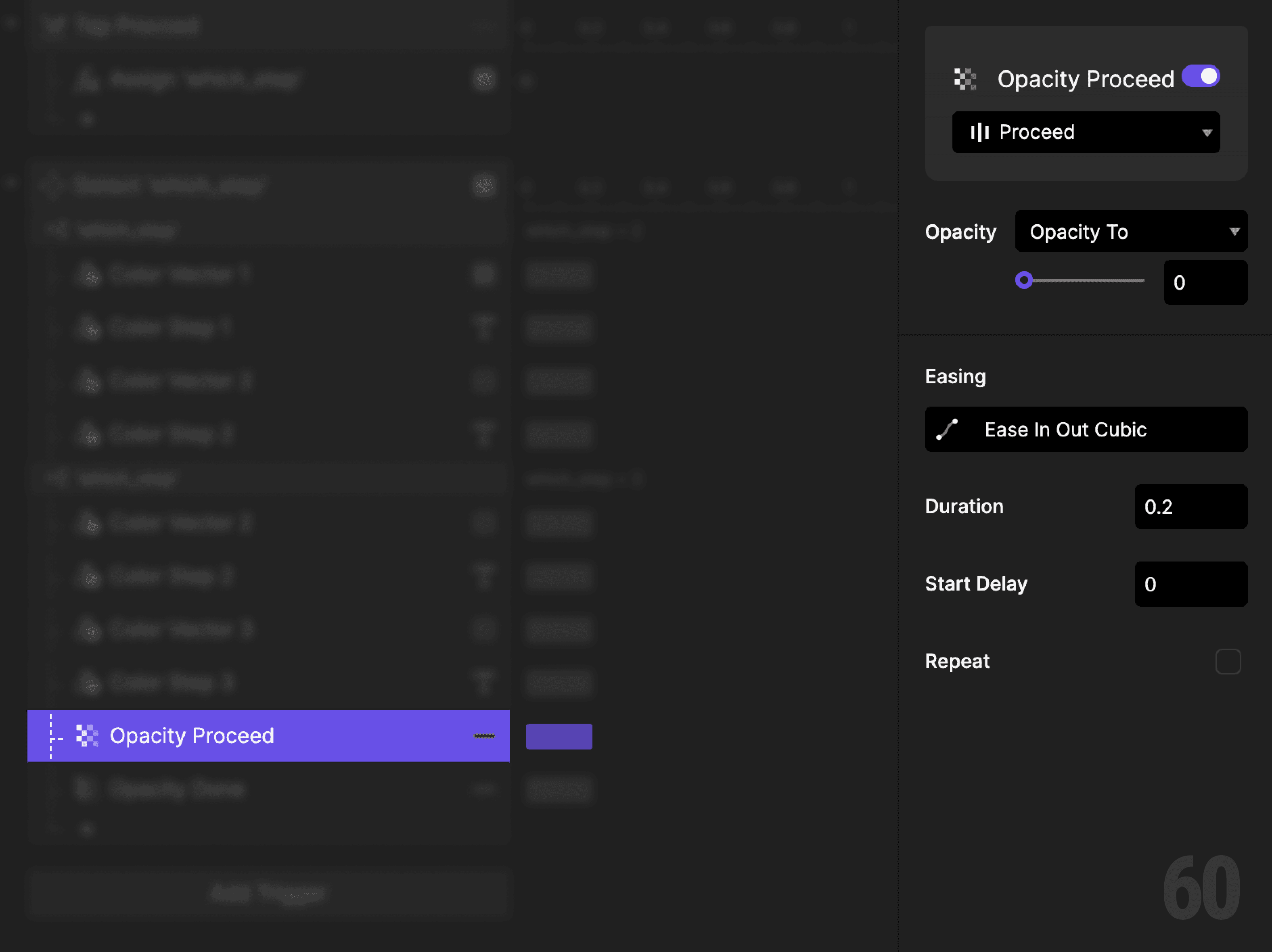

Step 14: Swap buttons
Add an Opacity response.
Target: Proceed button
Set opacity to 0%

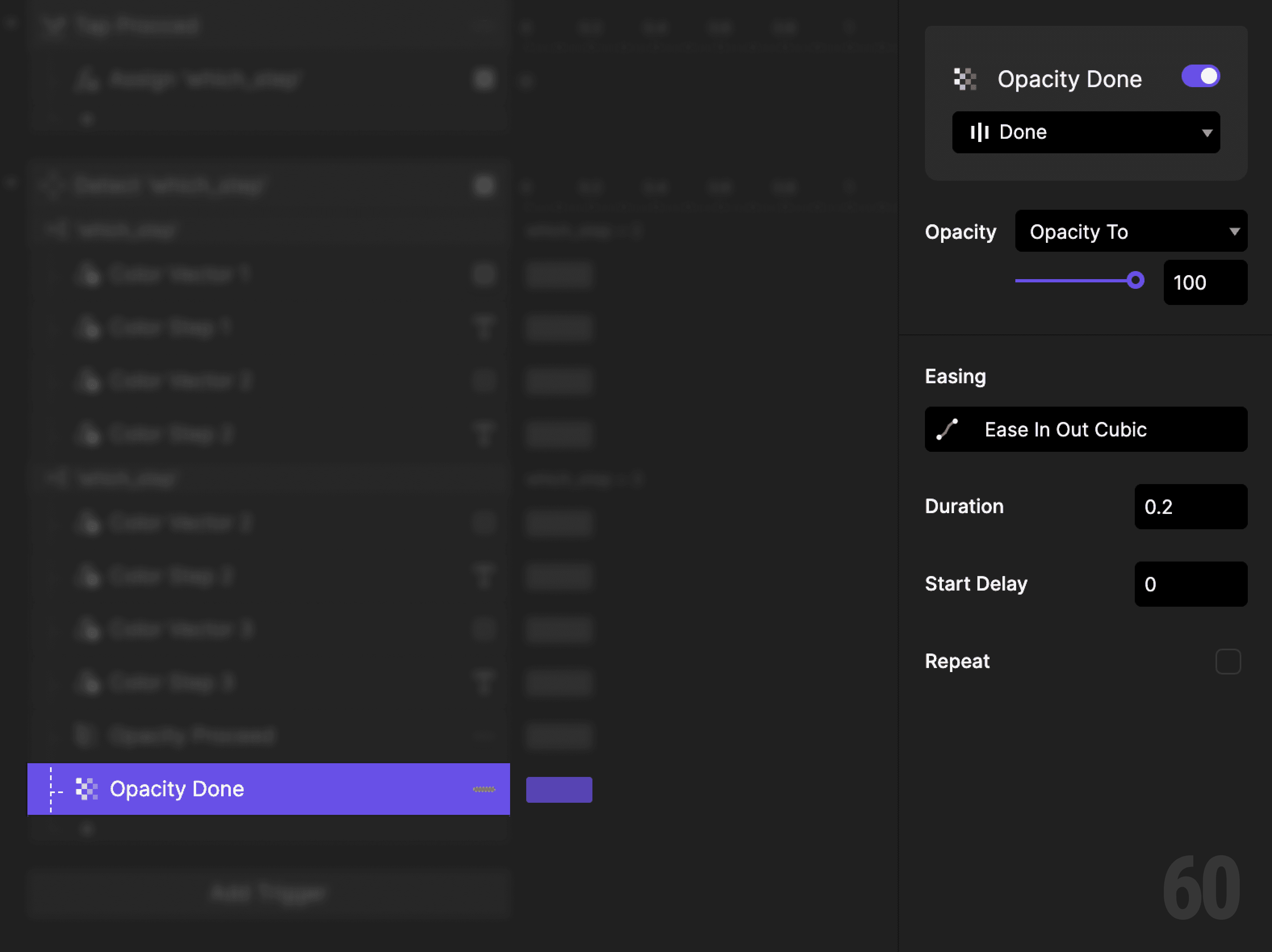

Step 15: Show Done button
Add another Opacity response.
Target: Done button
Set opacity to 100%
Step 16: Preview and test
Tap Proceed repeatedly.
Check for:
Steps highlighting in order
Only one step active at a time
Proceed disappearing at the final step
If the UI always matches the step value, the interaction is correct.
