1.6 Tap Image Carousel

ProtoPie

Level 1

23 Steps

What you are building

A simple image carousel that moves one image at a time using Previous and Next buttons.

Tap Next to move forward.
Tap Previous to move backward.

Only one image is fully visible at a time.

How to think about it

This interaction is about sequence.

There is a clear order.

Each tap moves exactly one step.

You are not scrolling freely. You are moving intentionally through states.

In ProtoPie terms, the state lives in the X position of the carousel container.

Recreate this in ProtoPie

Start by creating three main layers:

Previous button
Next button
Carousel container

Inside the Carousel container:

Create a horizontal stack
Add Image 1, Image 2, Image 3

Only one image should appear fully visible at a time.

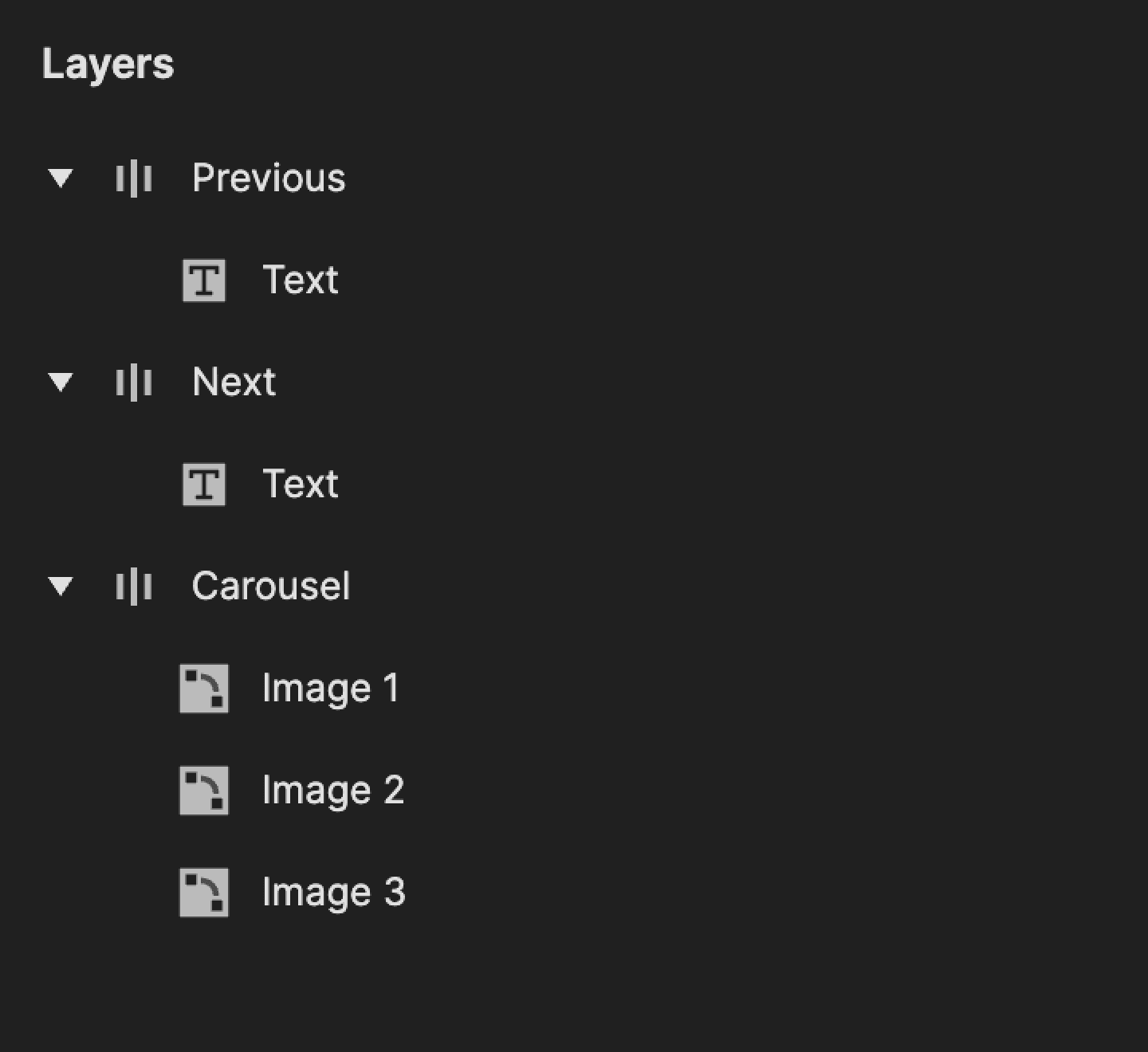

This is a screenshot of layers in ProtoPie.

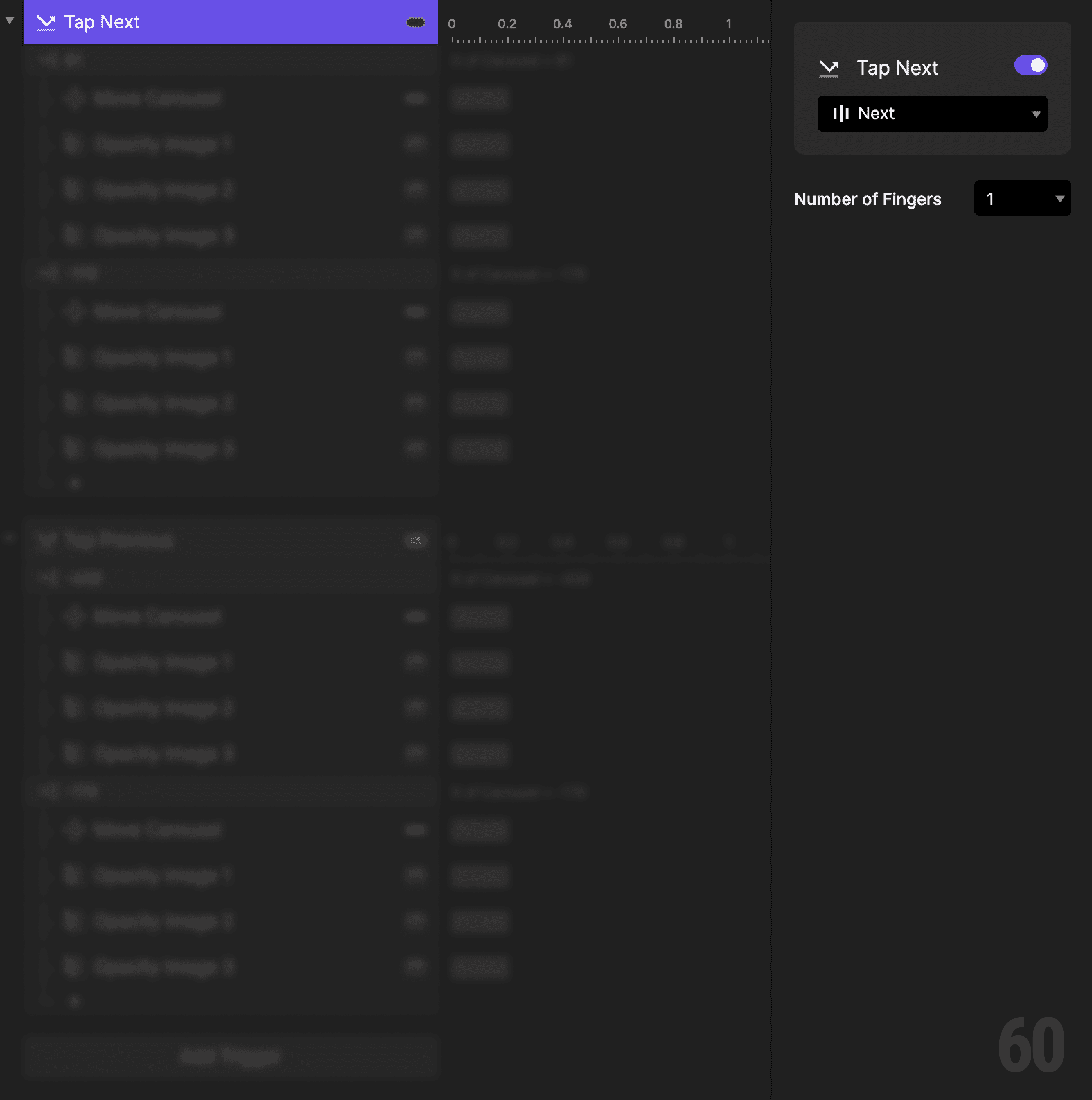

Step 1: Add tap trigger to Next

Select the Next button.

Add a Tap trigger.

This is a screenshot of Step 1: Add tap trigger to Next.

Step 2: Create a condition (Image 1 → Image 2)

Add a Condition based on the X position of the Carousel container.

This reads as:
When Carousel X is 81, then do the following.

This means Image 1 is currently centered.

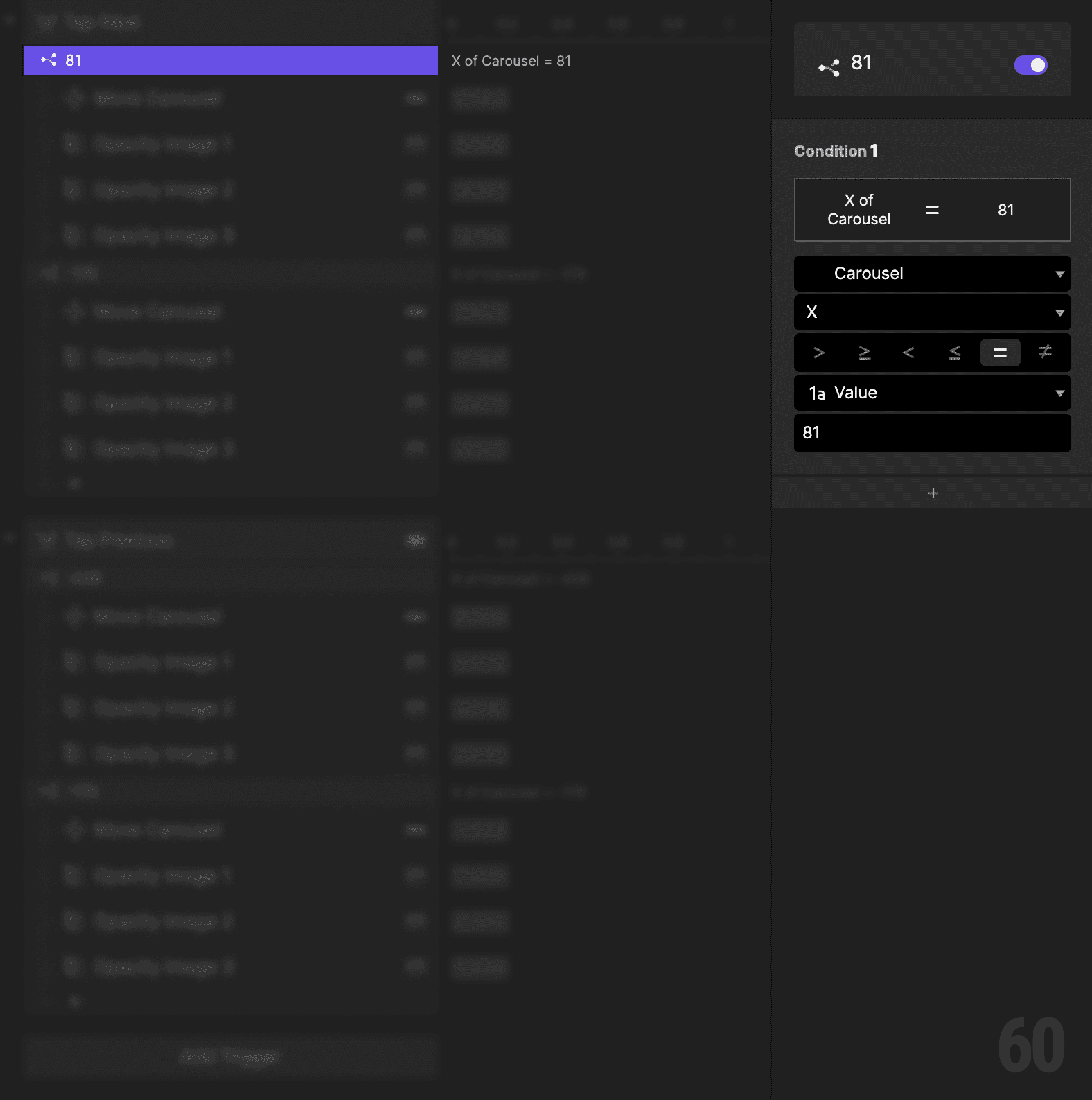

This is a screenshot of Step 2: Create a condition (Image 1 → Image 2).

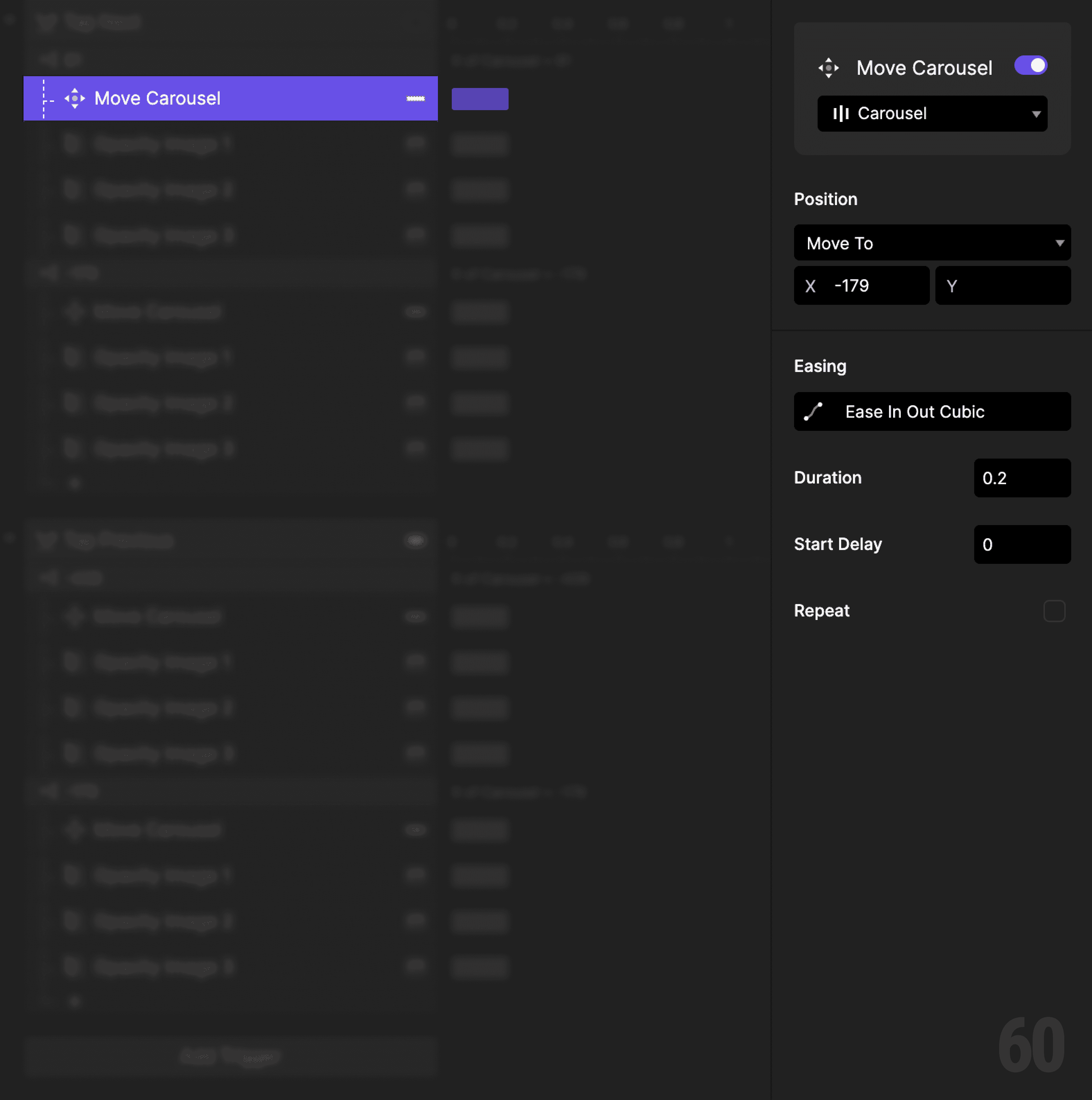

Step 3: Move the carousel forward

Add a Move response.

Target: Carousel container
Set X to -179

This brings Image 2 into focus.

This is a screenshot of Step 3: Move the carousel forward.

Step 4: Fade out Image 1

Add an Opacity response.

Target: Image 1
Set opacity to 10%

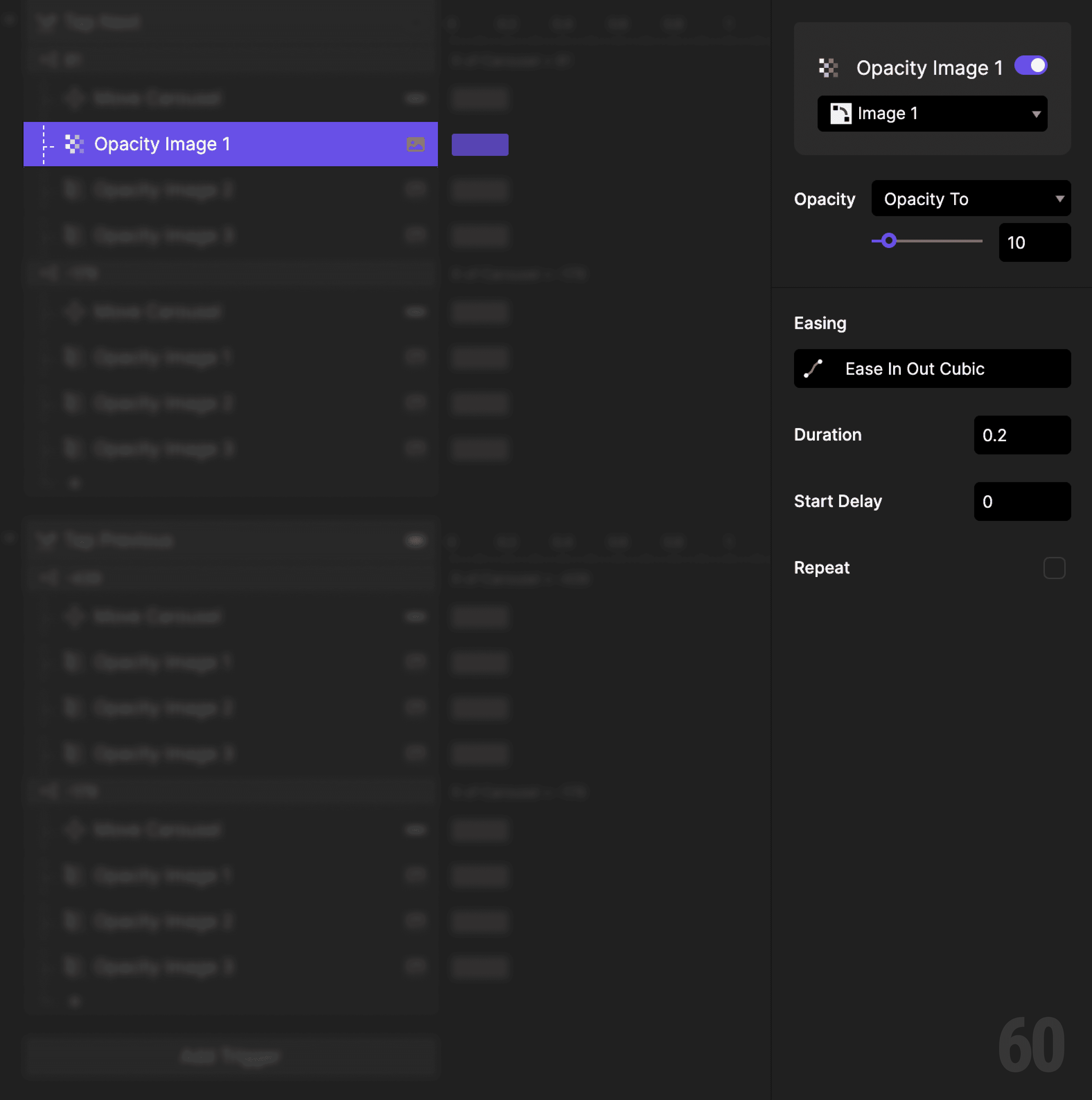

This is a screenshot of Step 4: Fade out Image 1.

Step 5: Fade in Image 2

Add an Opacity response.

Target: Image 2
Set opacity to 100%

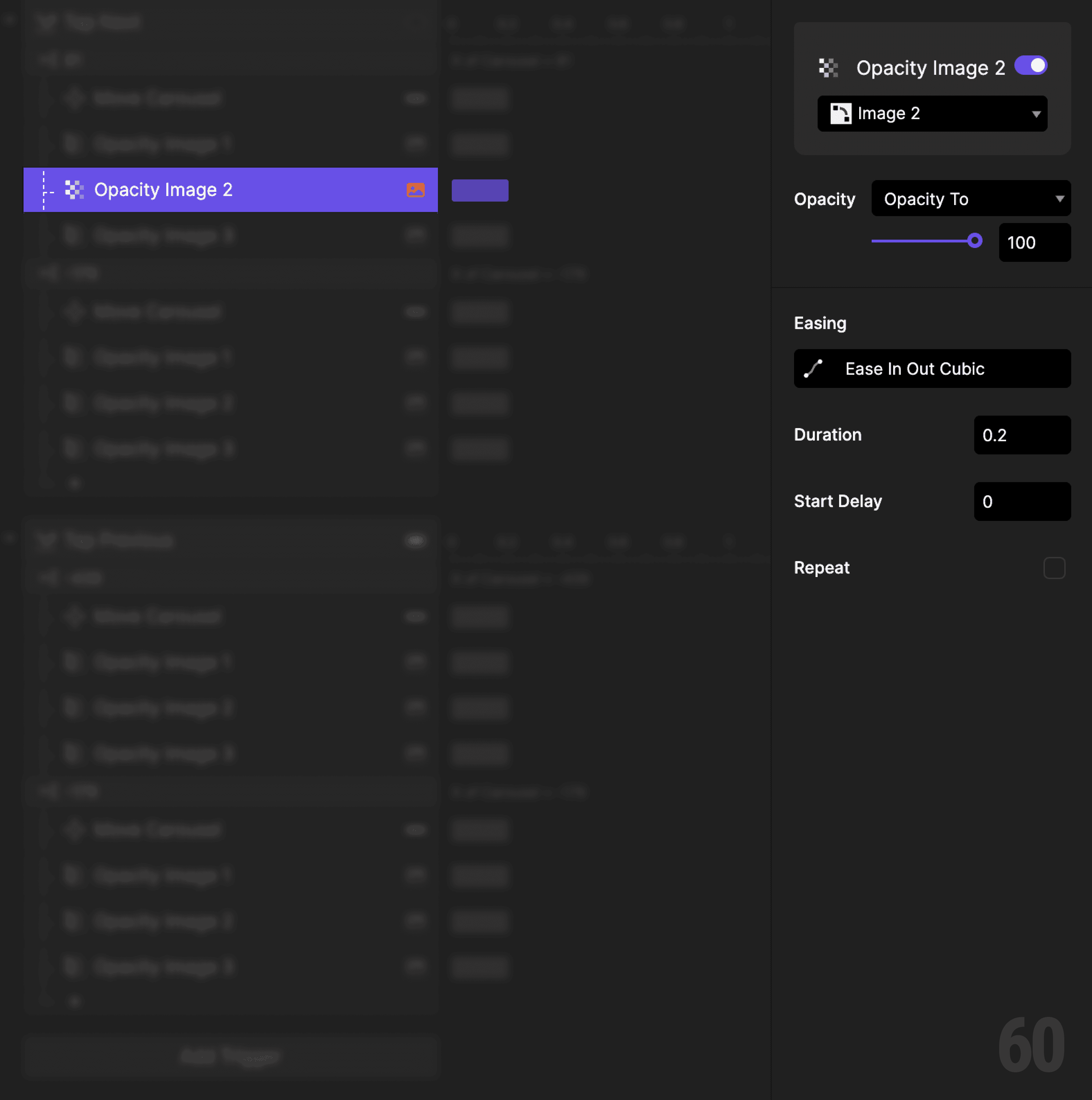

This is a screenshot of Step 5: Fade in Image 2.

Step 6: Fade out Image 3

Add an Opacity response.

Target: Image 3
Set opacity to 10%

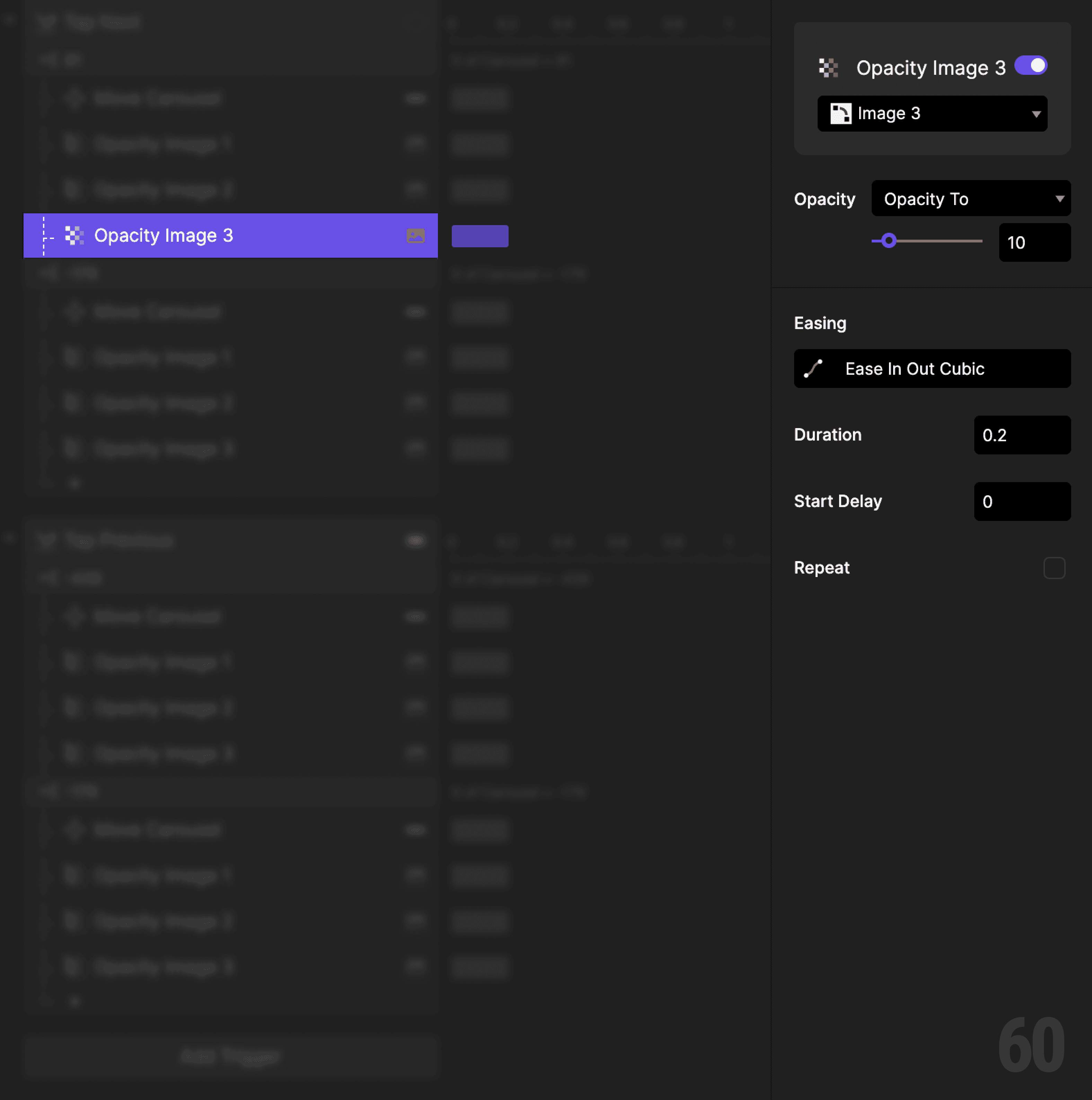

This is a screenshot of Step 6: Fade out Image 3.

Step 7: Create a condition (Image 2 → Image 3)

Add another Condition to the same tap trigger.

Set it again based on Carousel X.

This reads as:
When Carousel X is -179, then do the following.

This means Image 2 is currently centered.

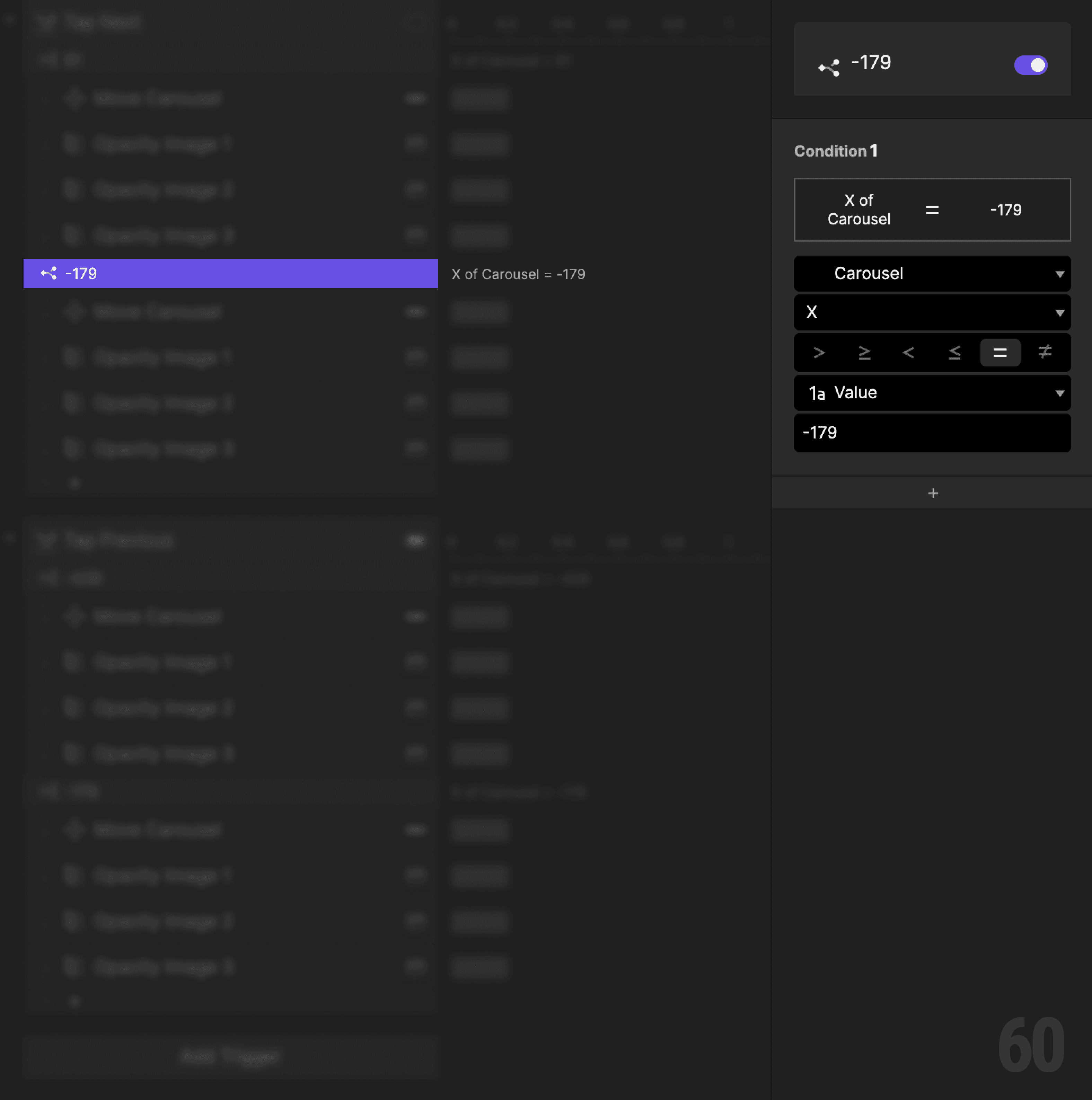

This is a screenshot of Step 7: Create a condition (Image 2 → Image 3).

Step 8: Move the carousel forward again

Add a Move response.

Target: Carousel container
Set X to -439

This brings Image 3 into focus.

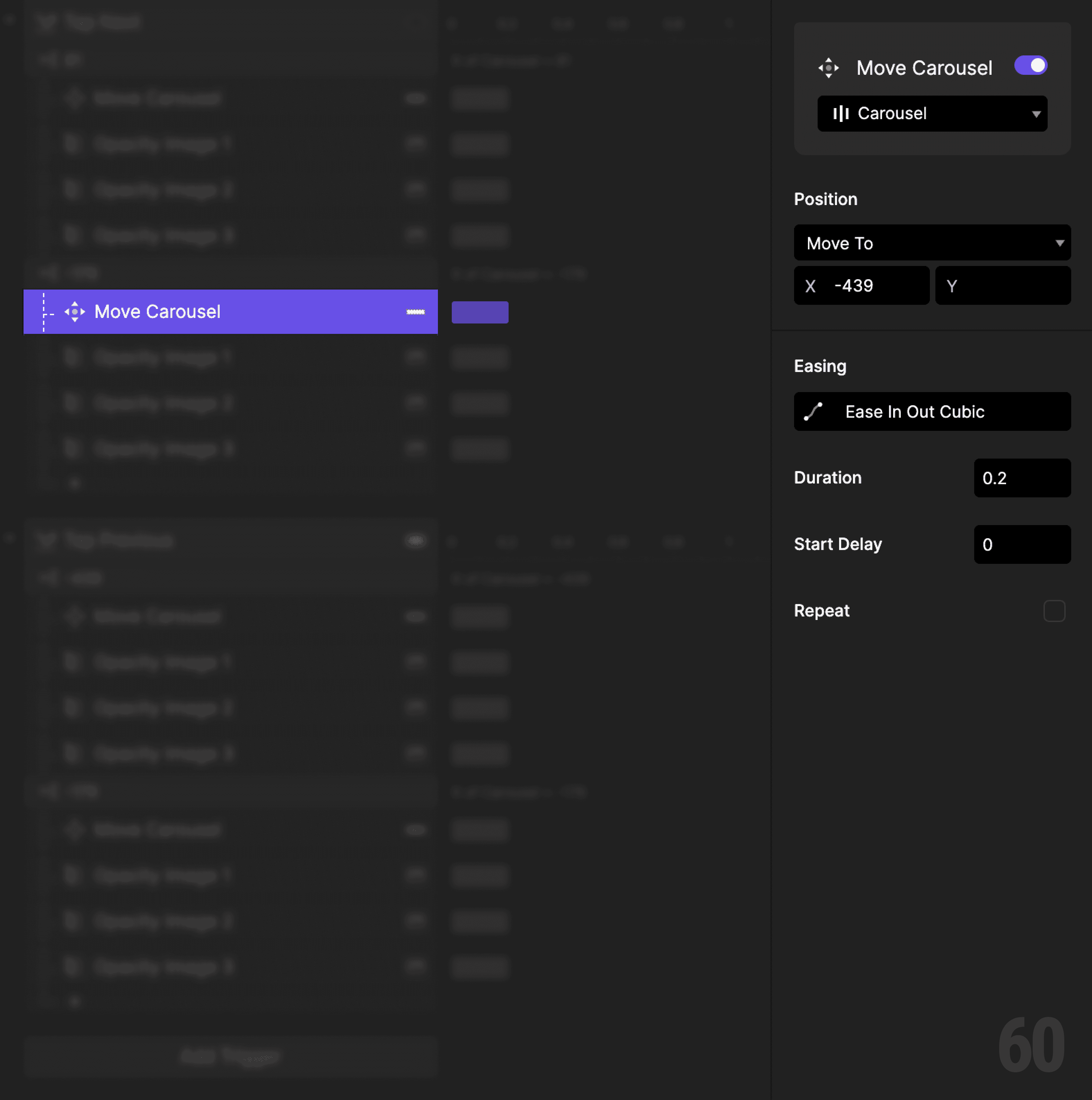

This is a screenshot of Step 8: Move the carousel forward again.

Step 9: Fade out Image 1

Add an Opacity response.

Target: Image 1
Set opacity to 10%

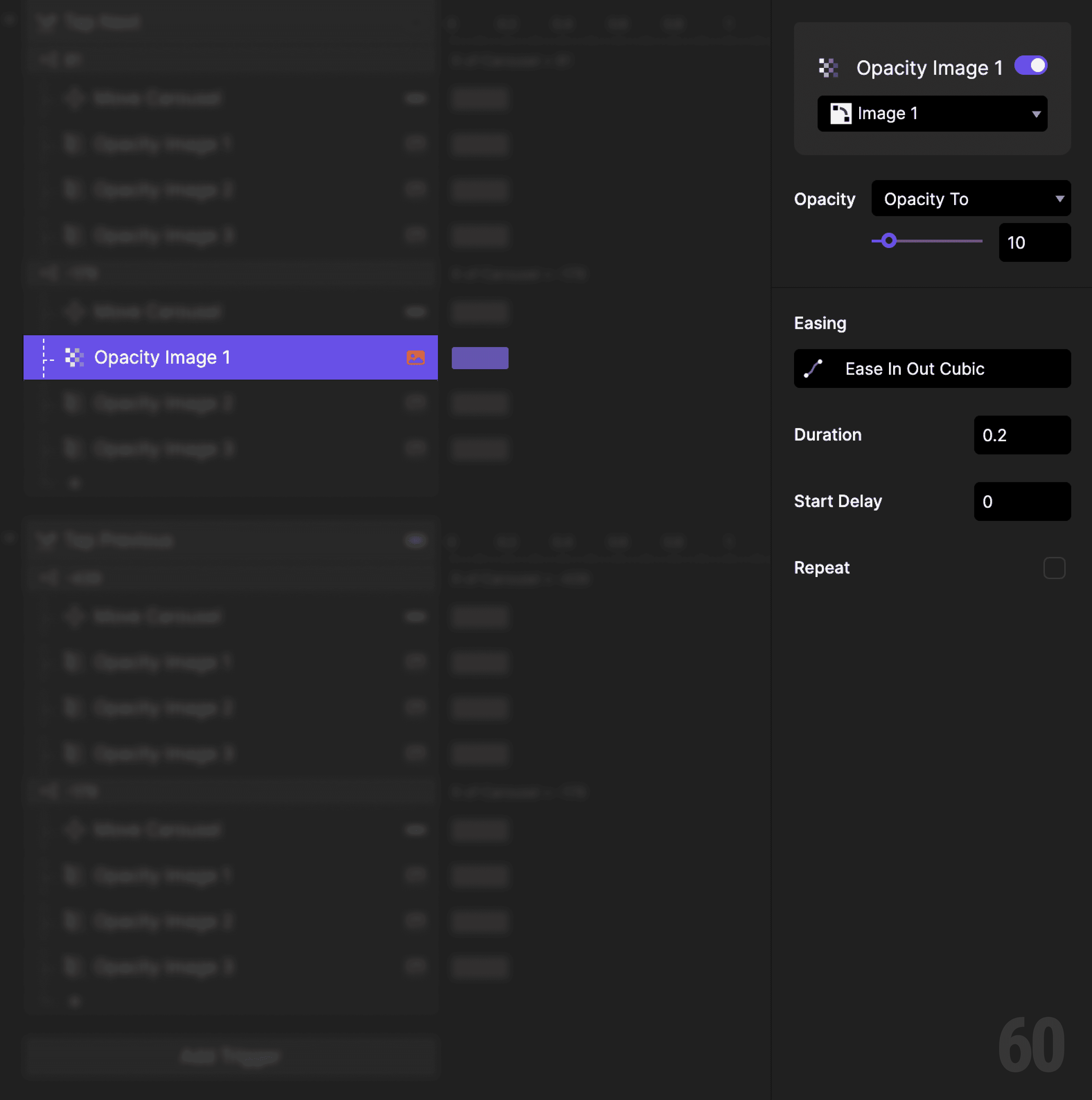

This is a screenshot of Step 9: Fade out Image 1.

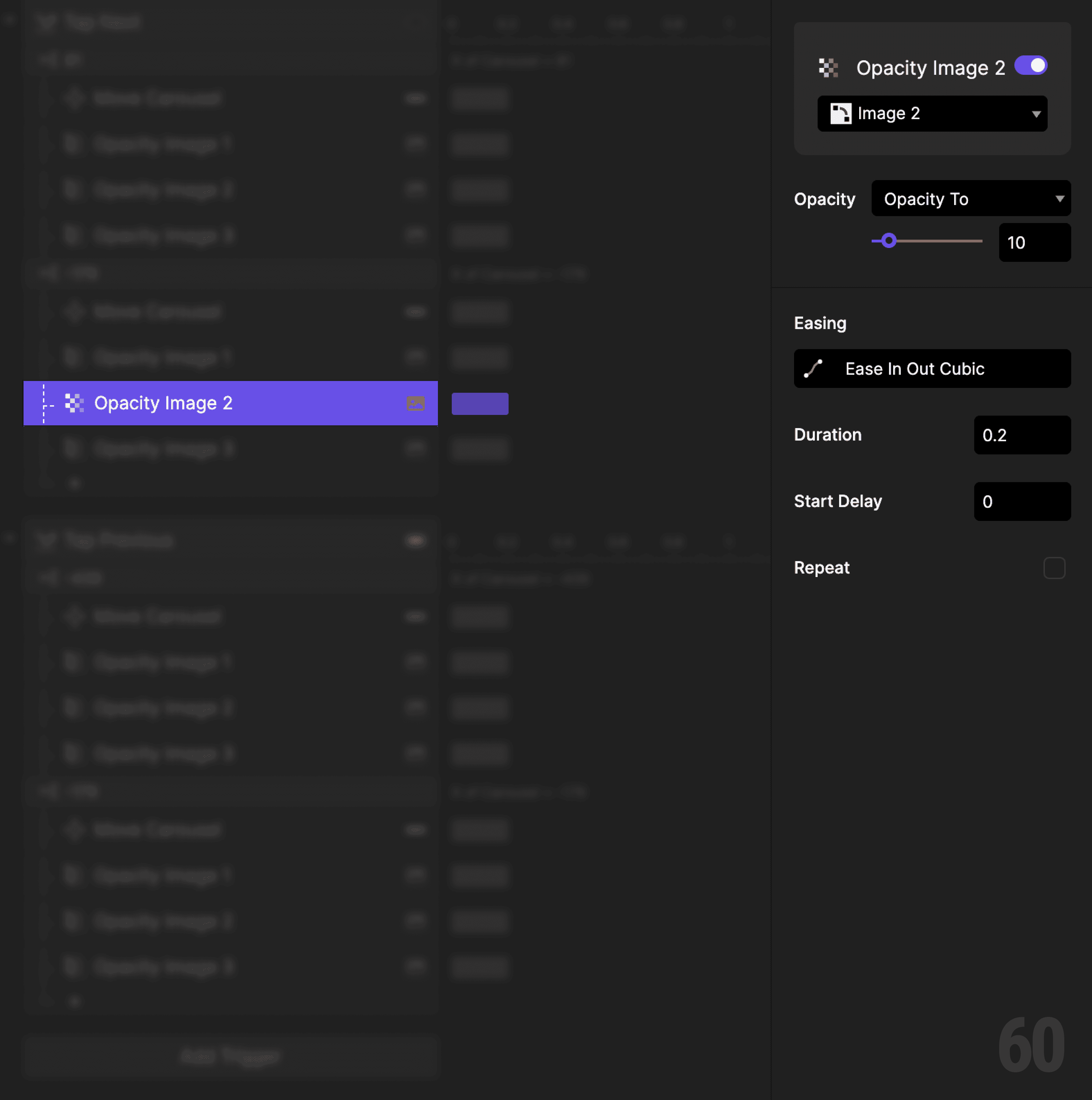

Step 10: Fade out Image 2

Add an Opacity response.

Target: Image 2
Set opacity to 10%

This is a screenshot of Step 10: Fade out Image 2.

Step 11: Fade in Image 3

Add an Opacity response.

Target: Image 3
Set opacity to 100%

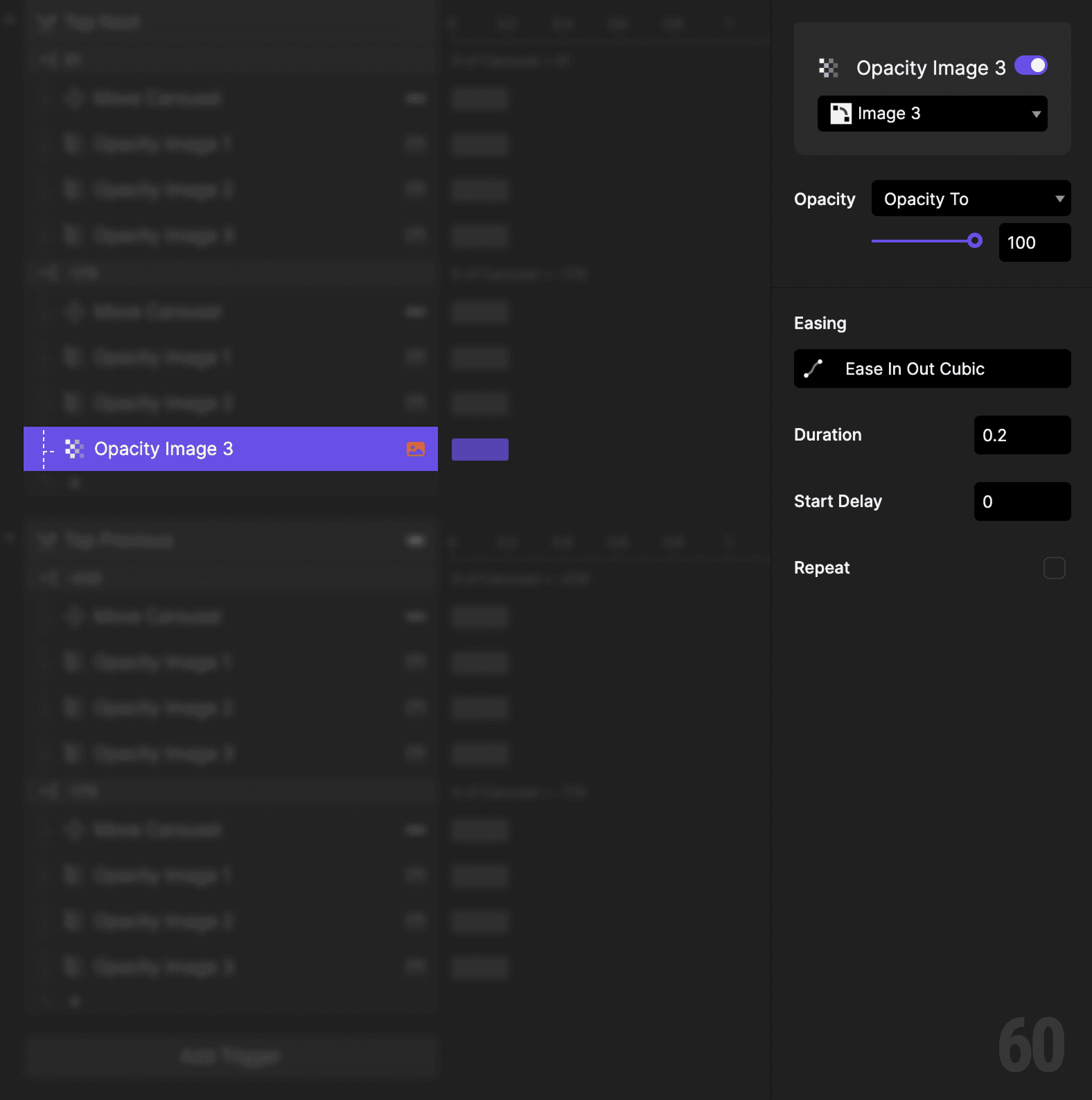

This is a screenshot of Step 11: Fade in Image 3.

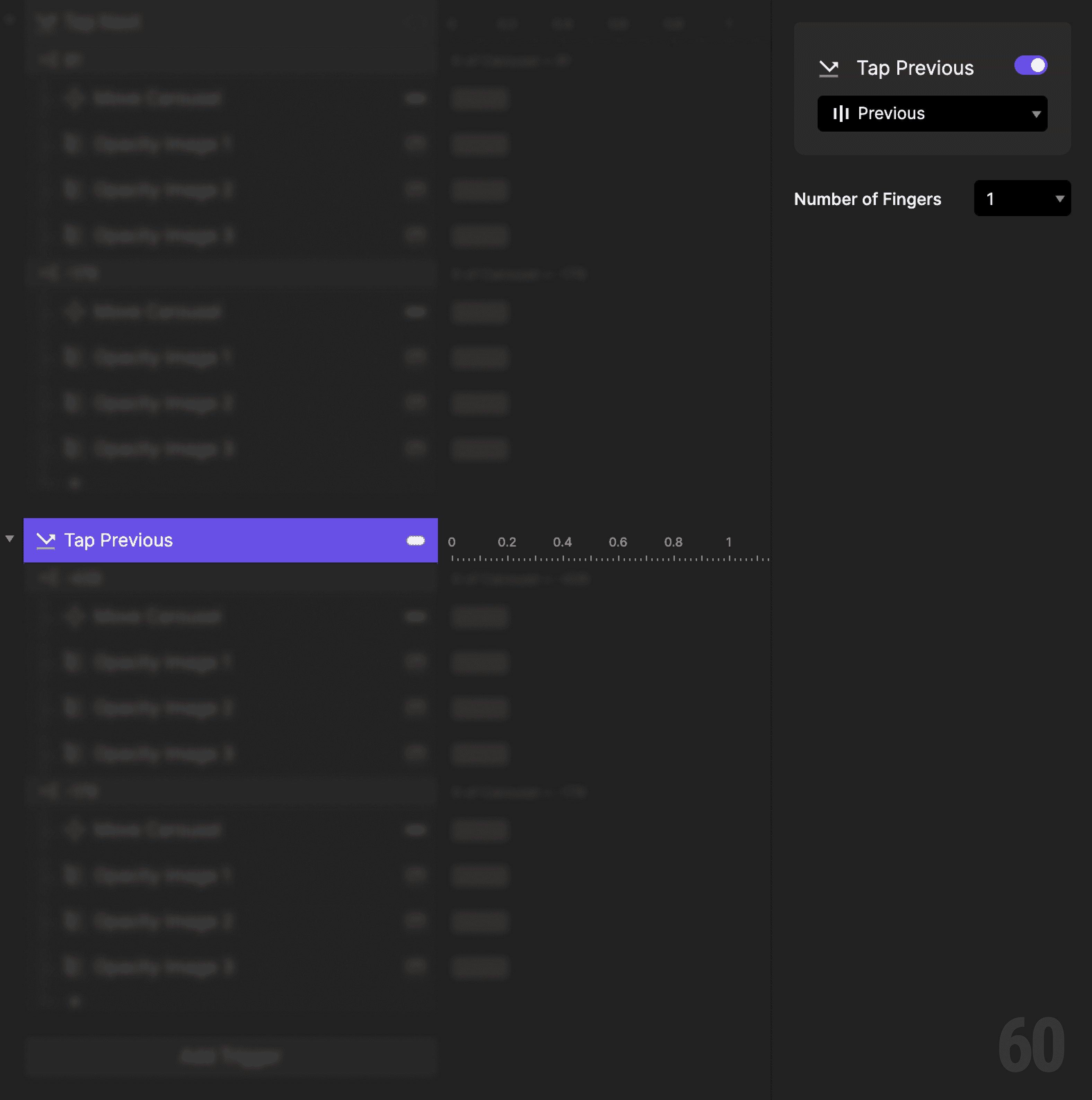

Step 12: Add tap trigger to Previous

Select the Previous button.

Add a Tap trigger.

This will move the carousel backward.

This is a screenshot of Step 12: Add tap trigger to Previous.

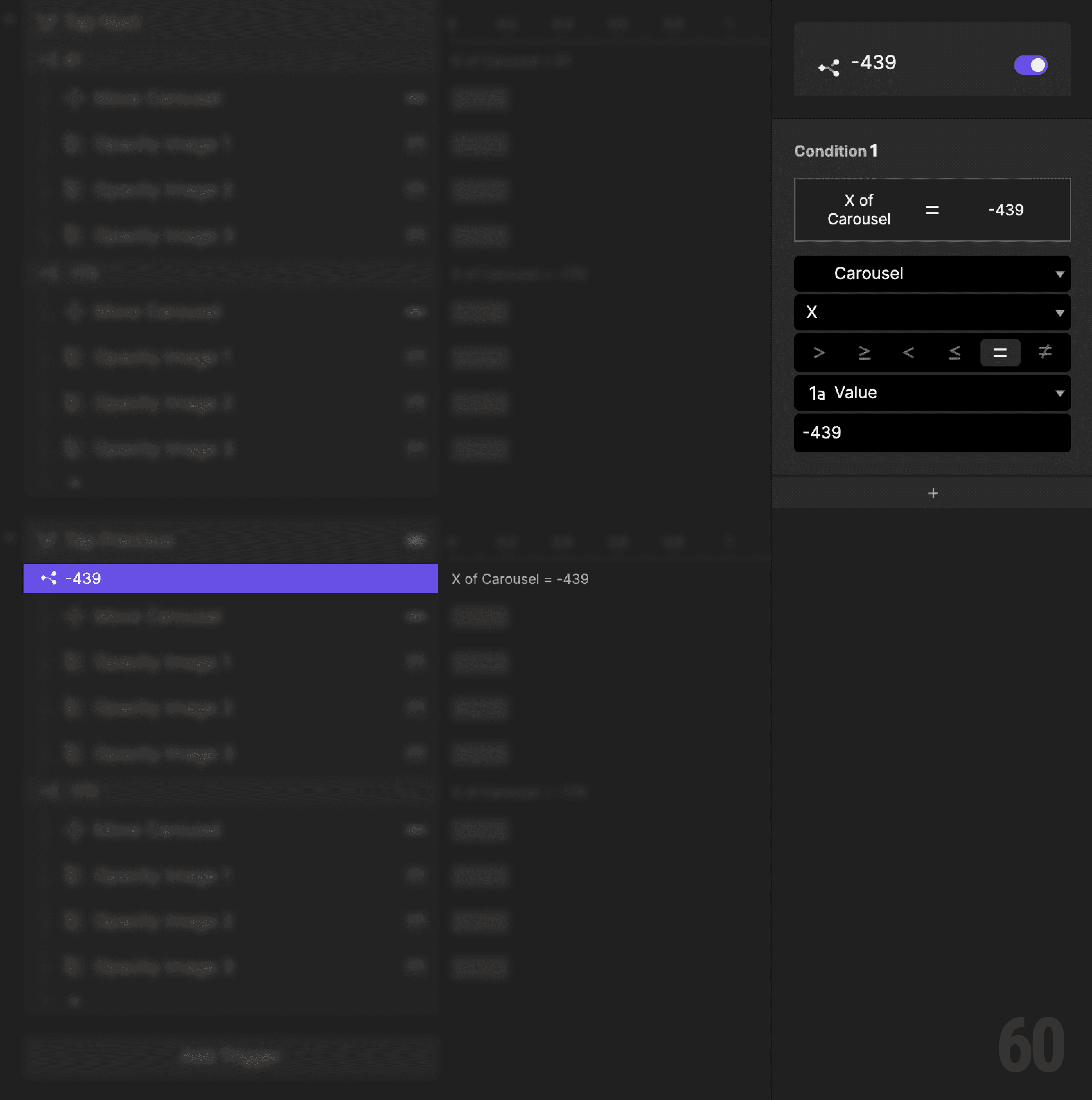

Step 13: Create a condition (Image 3 → Image 2)

Add a Condition based on Carousel X.

This reads as:
When Carousel X is -439, then do the following.

This is a screenshot of Step 13: Create a condition (Image 3 → Image 2).

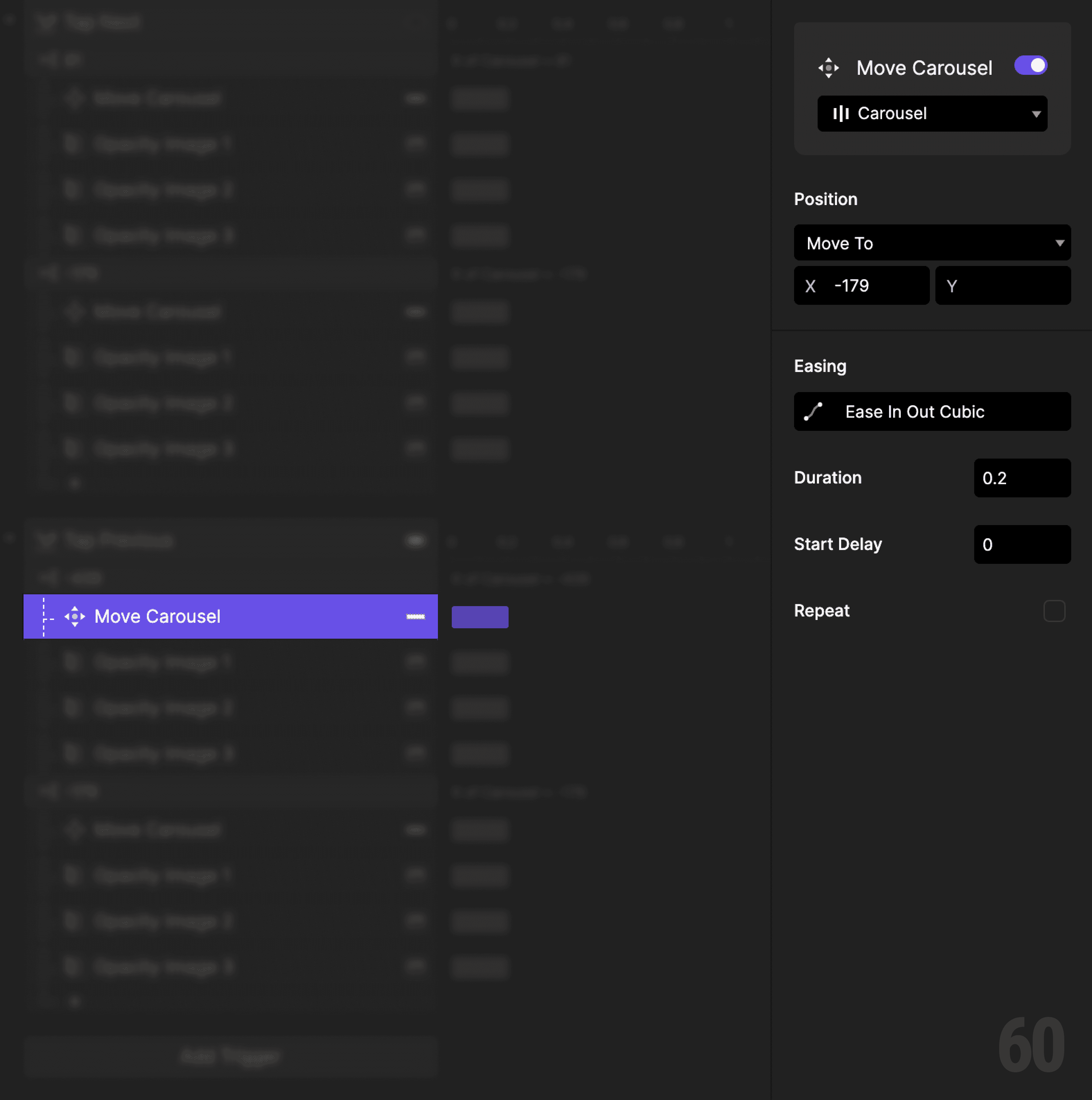

Step 14: Move the carousel backward

Add a Move response.

Target: Carousel container
Set X to -179

This is a screenshot of Step 14: Move the carousel backward.

Step 15: Fade out Image 1

Add an Opacity response.

Target: Image 1
Set opacity to 10%

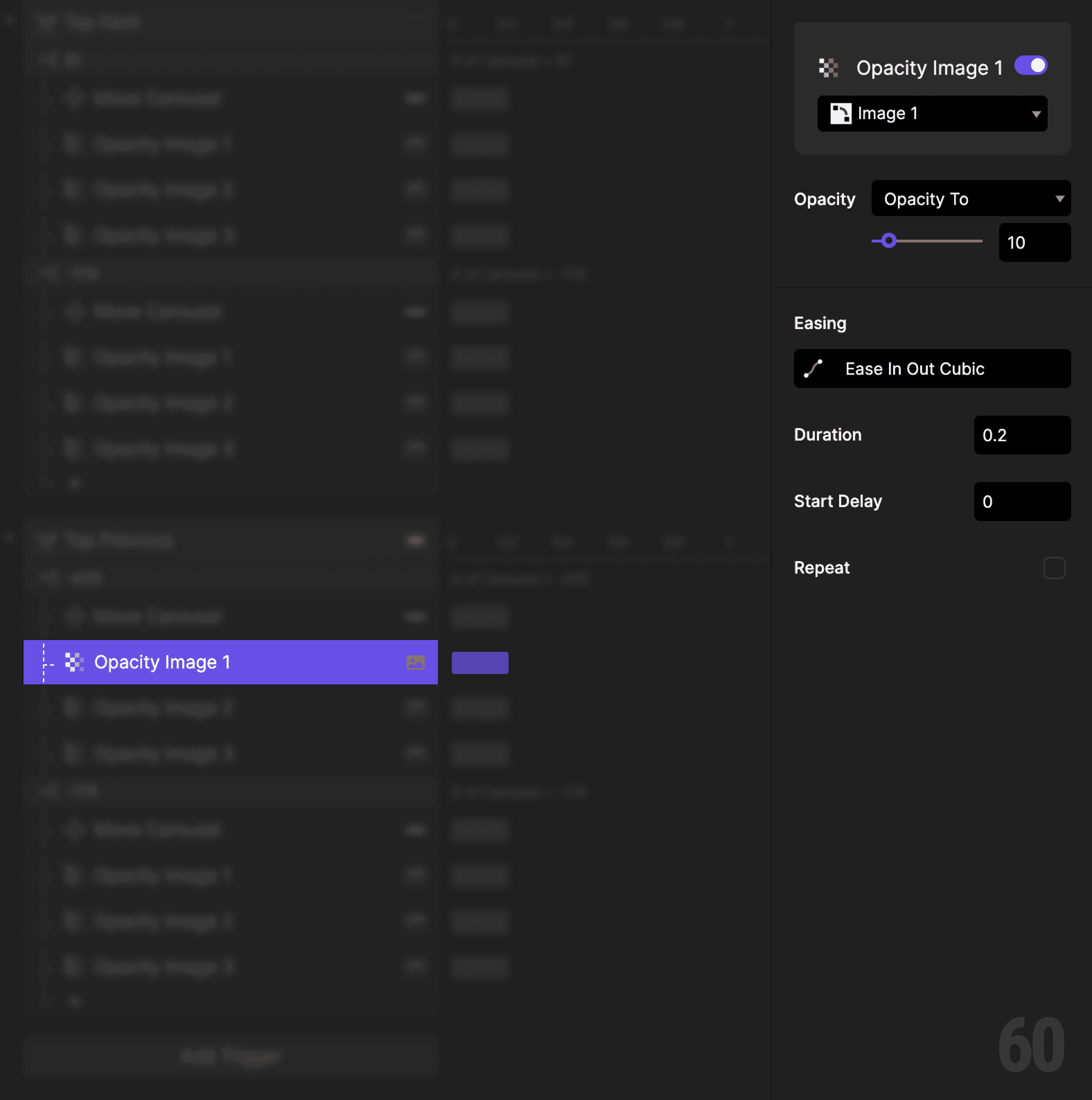

This is a screenshot of Step 15: Fade out Image 1.

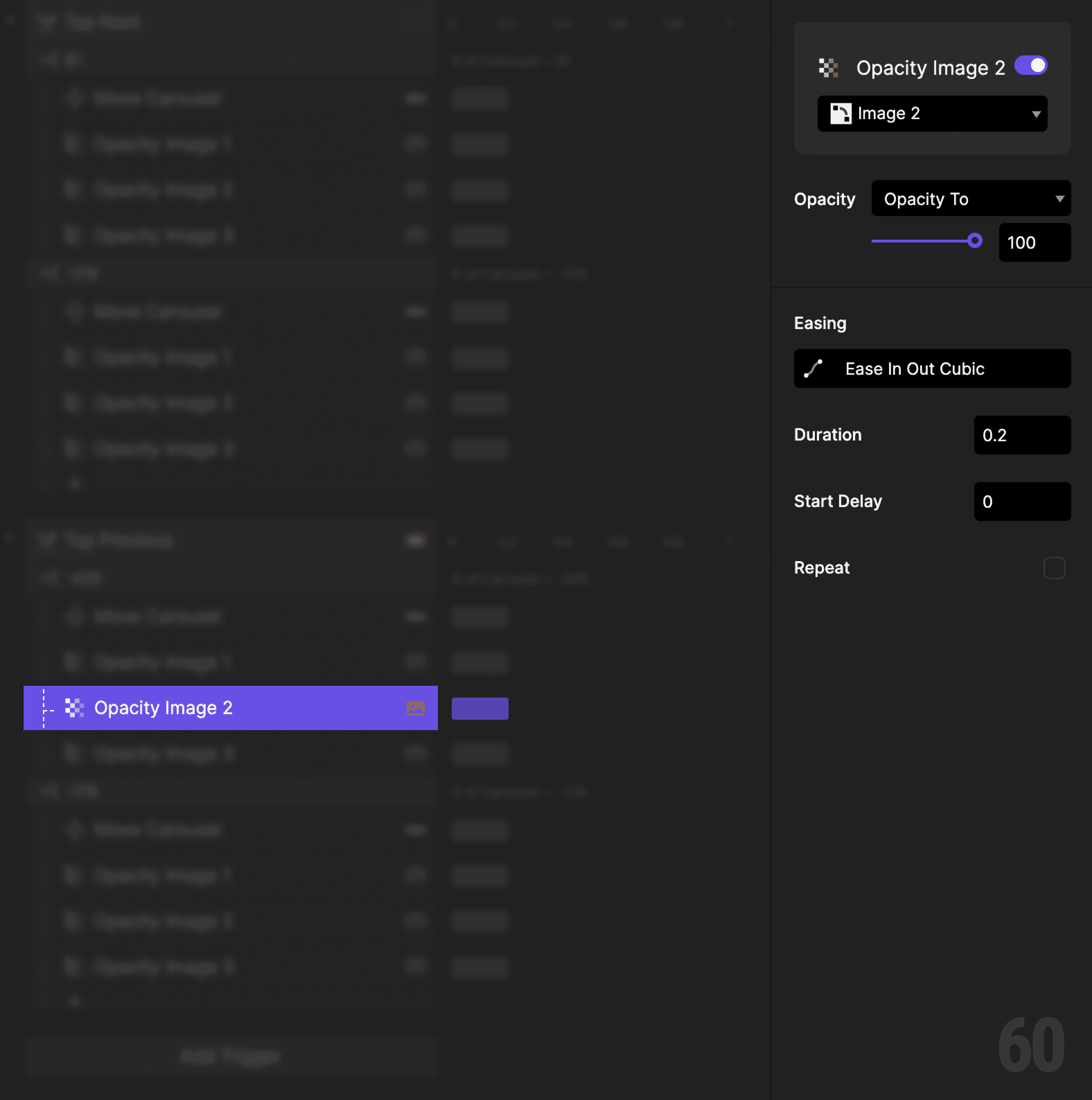

Step 16: Fade in Image 2

Add an Opacity response.

Target: Image 2
Set opacity to 100%

This is a screenshot of Step 16: Fade in Image 2.

Step 17: Fade out Image 3

Add an Opacity response.

Target: Image 3
Set opacity to 10%

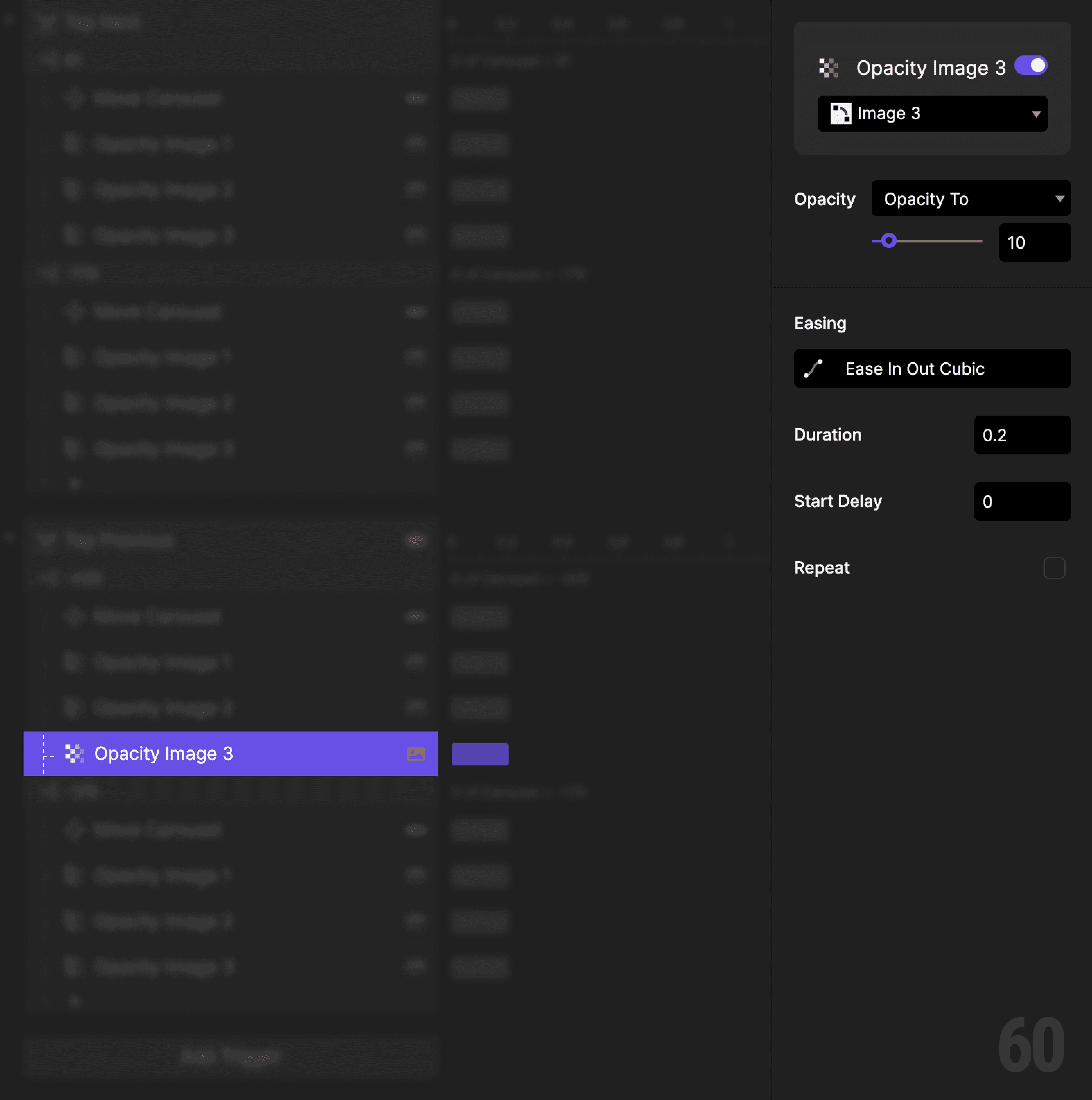

This is a screenshot of Step 17: Fade out Image 3.

Step 18: Create a condition (Image 2 → Image 1)

Add another Condition to the Previous tap trigger.

This reads as:
When Carousel X is -179, then do the following.

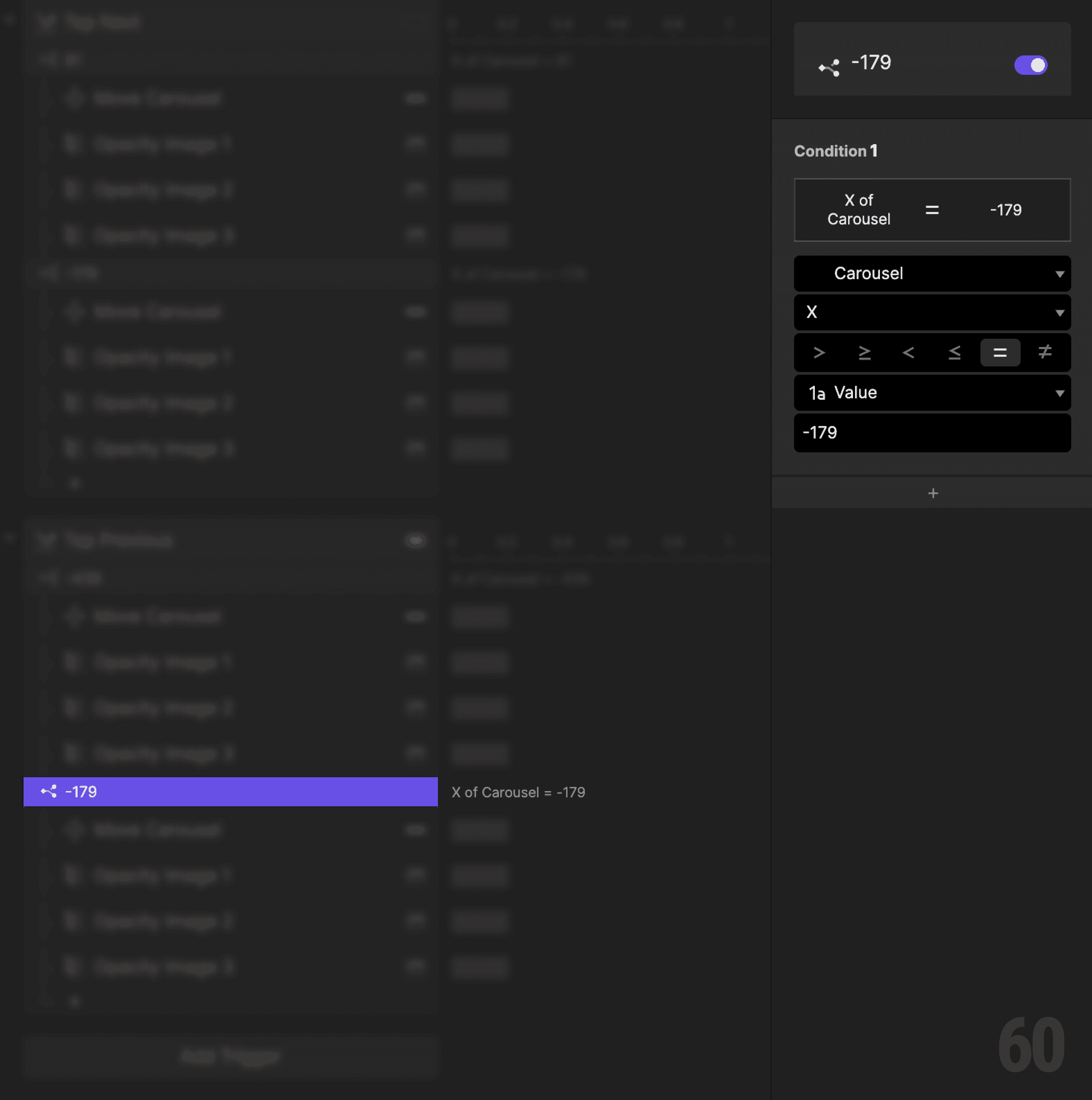

This is a screenshot of Step 18: Create a condition (Image 2 → Image 1).

Step 19: Move the carousel back again

Add a Move response.

Target: Carousel container
Set X to 81

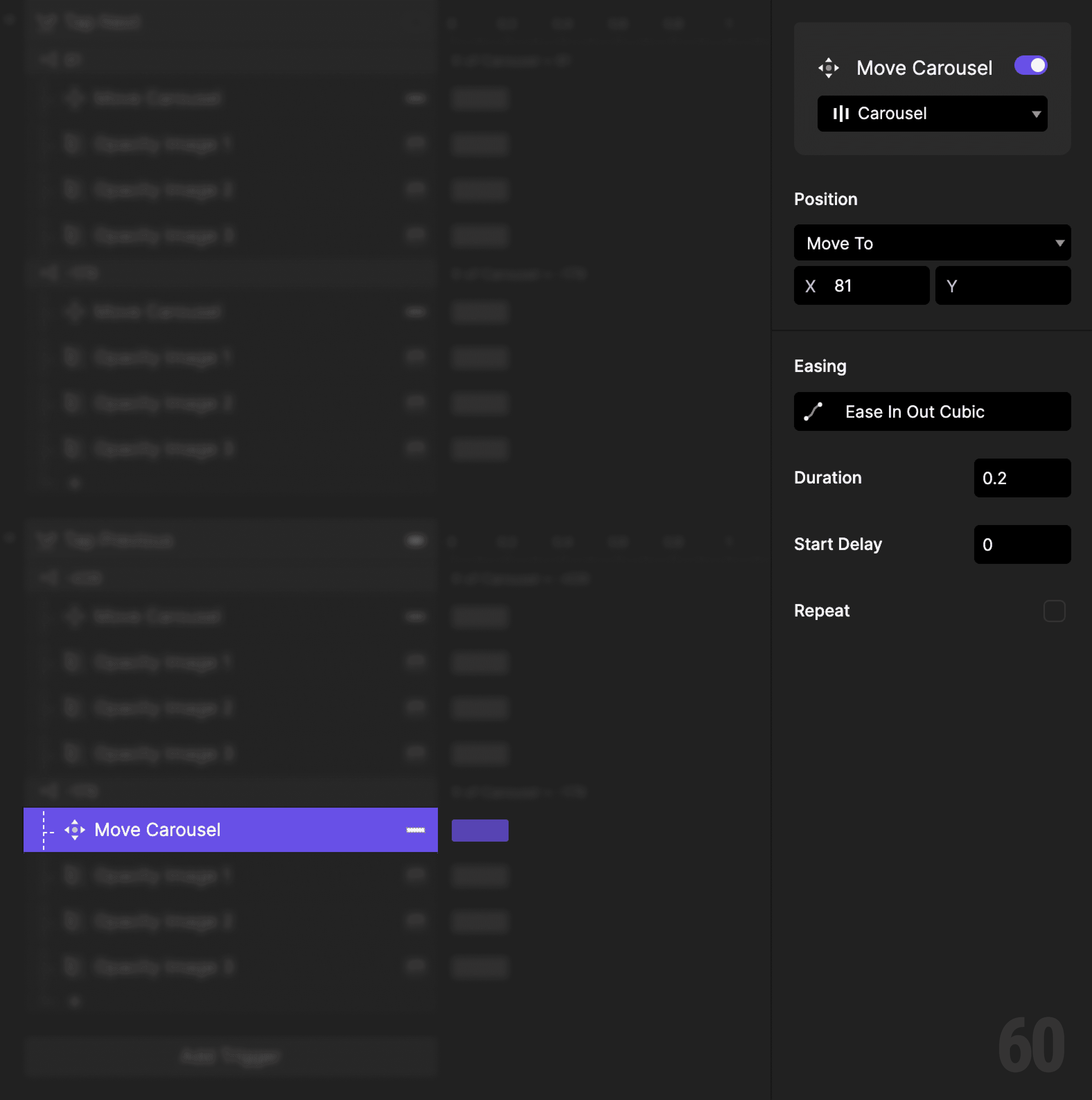

This is a screenshot of Step 19: Move the carousel back again.

Step 20: Fade in Image 1

Add an Opacity response.

Target: Image 1
Set opacity to 100%

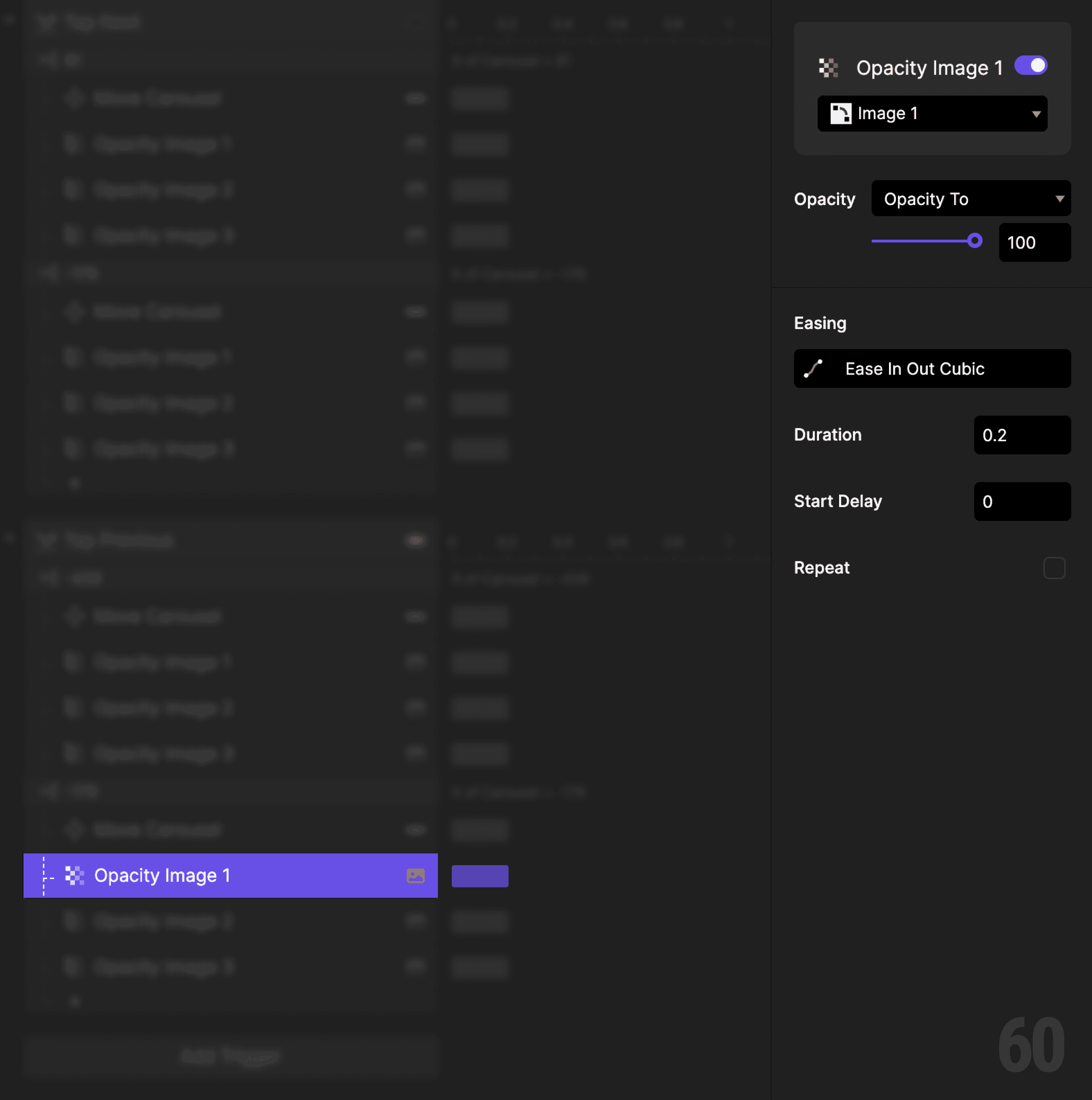

This is a screenshot of Step 20: Fade in Image 1.

Step 21: Fade out Image 2

Add an Opacity response.

Target: Image 2
Set opacity to 10%

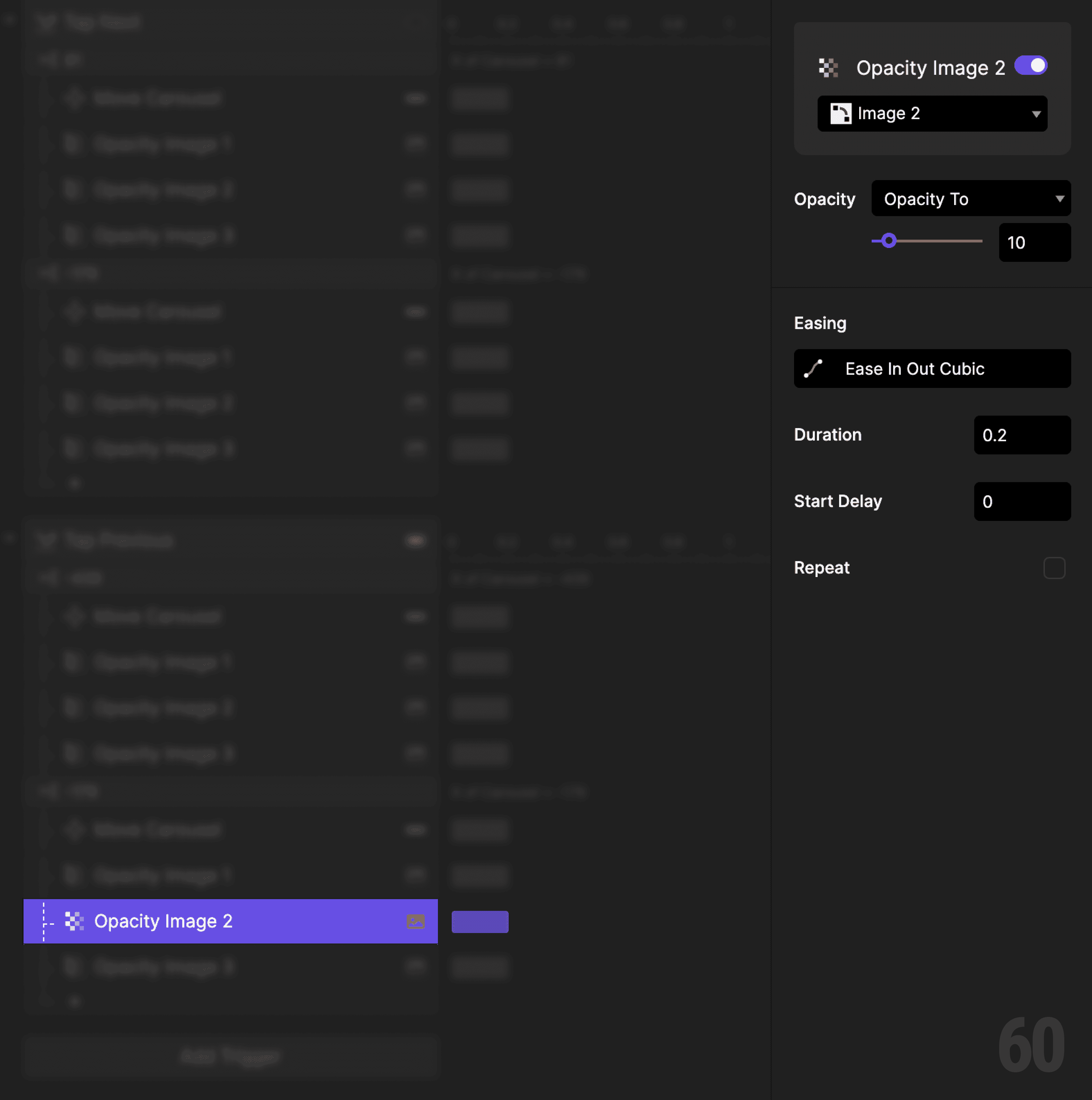

This is a screenshot of Step 21: Fade out Image 2.

Step 22: Fade out Image 3

Add an Opacity response.

Target: Image 3
Set opacity to 10%

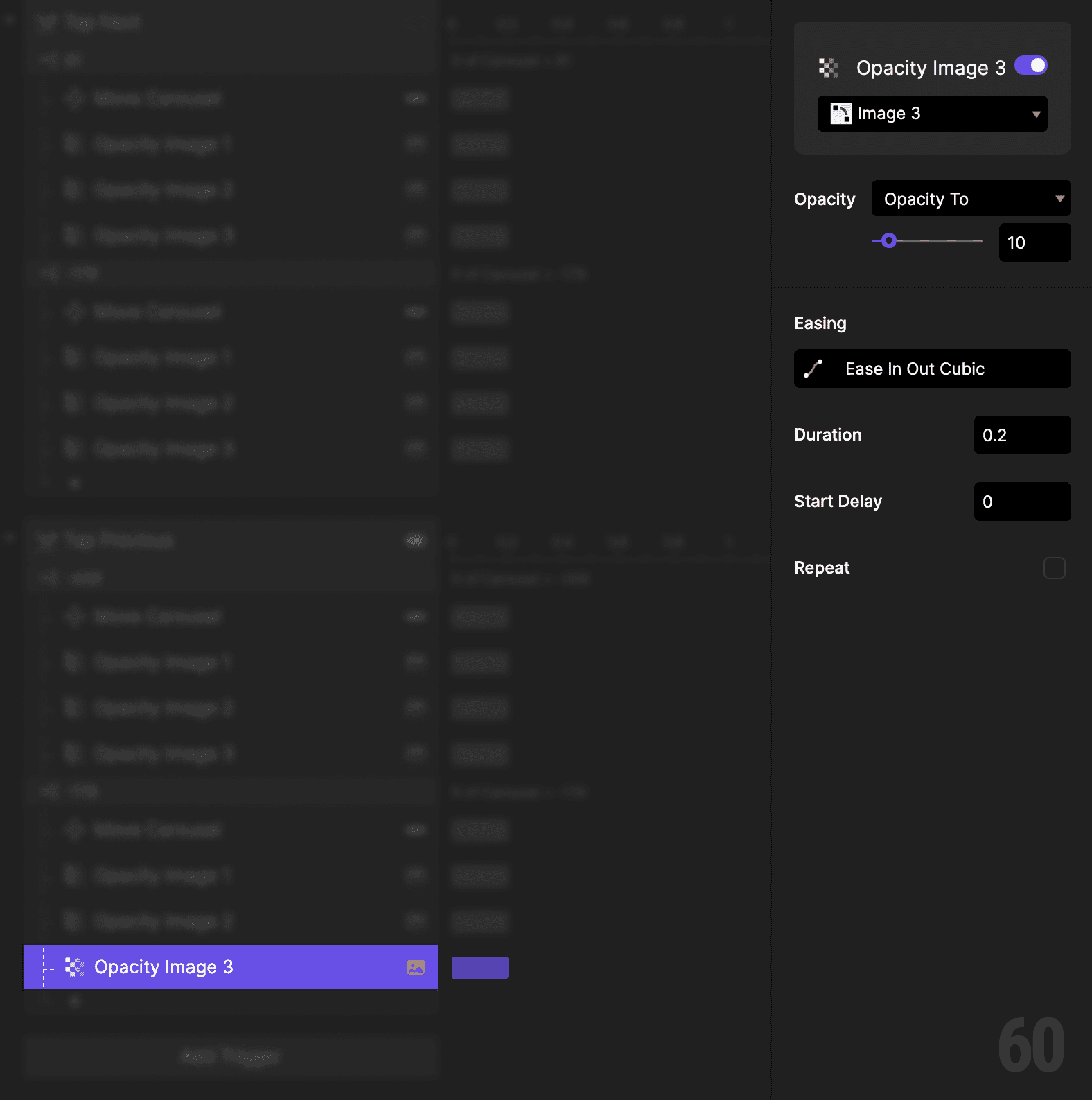

This is a screenshot of Step 22: Fade out Image 3.

Step 23: Preview and test

Tap Next and Previous repeatedly.

Check for:

One image fully visible at a time
Predictable movement
No skipped states

If each tap moves exactly one step, the carousel is correct.

Try this next

Animate opacity with easing

Disable buttons at the ends
Replace position logic with a variable

Up next

Step indicator update. Visualizing position in a sequence.
