1.4 Icon + Label State Change
What you are building
A list item where multiple elements update together based on a single state.
Tap once and the icon, text, and color all change.
Tap again and everything reverts.
This pattern is extremely common in iOS lists and settings.
How to think about it
This interaction is about shared state.
Instead of each element reacting independently, everything listens to the same condition.
When the state changes, the entire row updates together. That is what makes it feel coherent.
You can think of the state as living in the visibility of the On icon.
Recreate this in ProtoPie

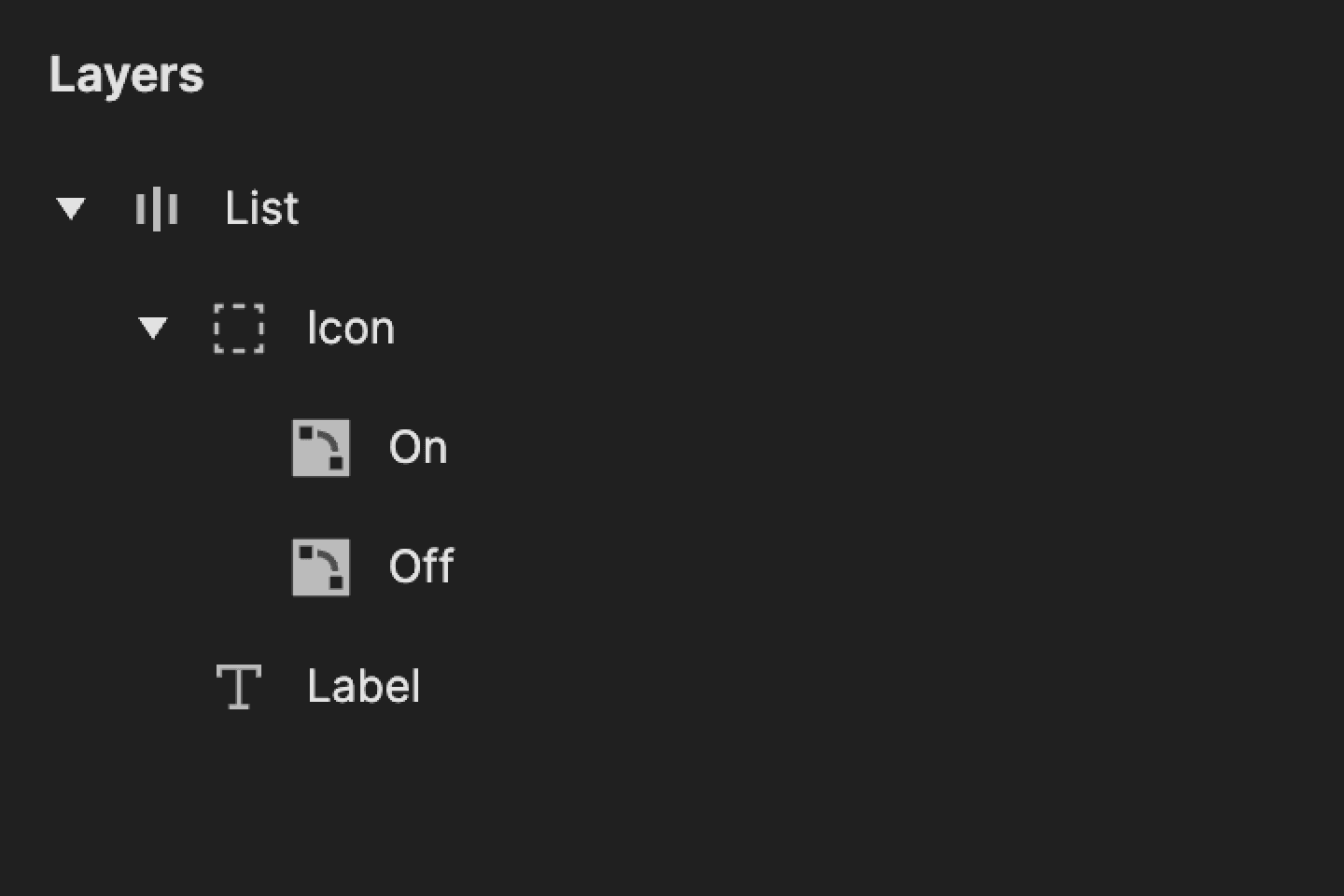

Start by creating a list item with the following layers:
List: the full row container
Icon container on the left
Off icon (visible by default)
On icon (opacity set to 0)
Label: text on the right
The icons swap visibility.
The label updates its text and color.

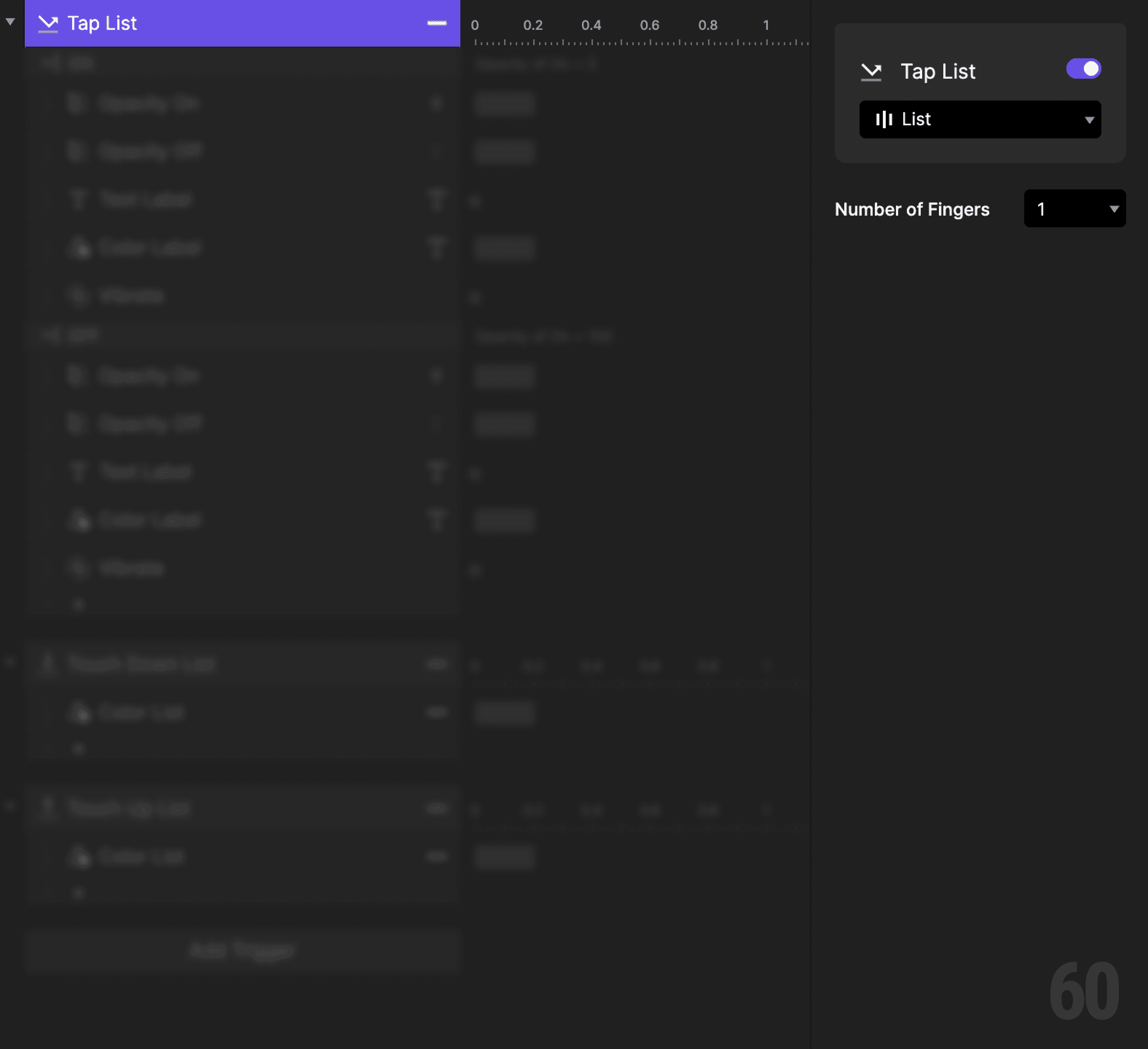

Step 1: Add tap trigger
Select the List layer.
Add a Tap trigger.
This is the main interaction trigger.

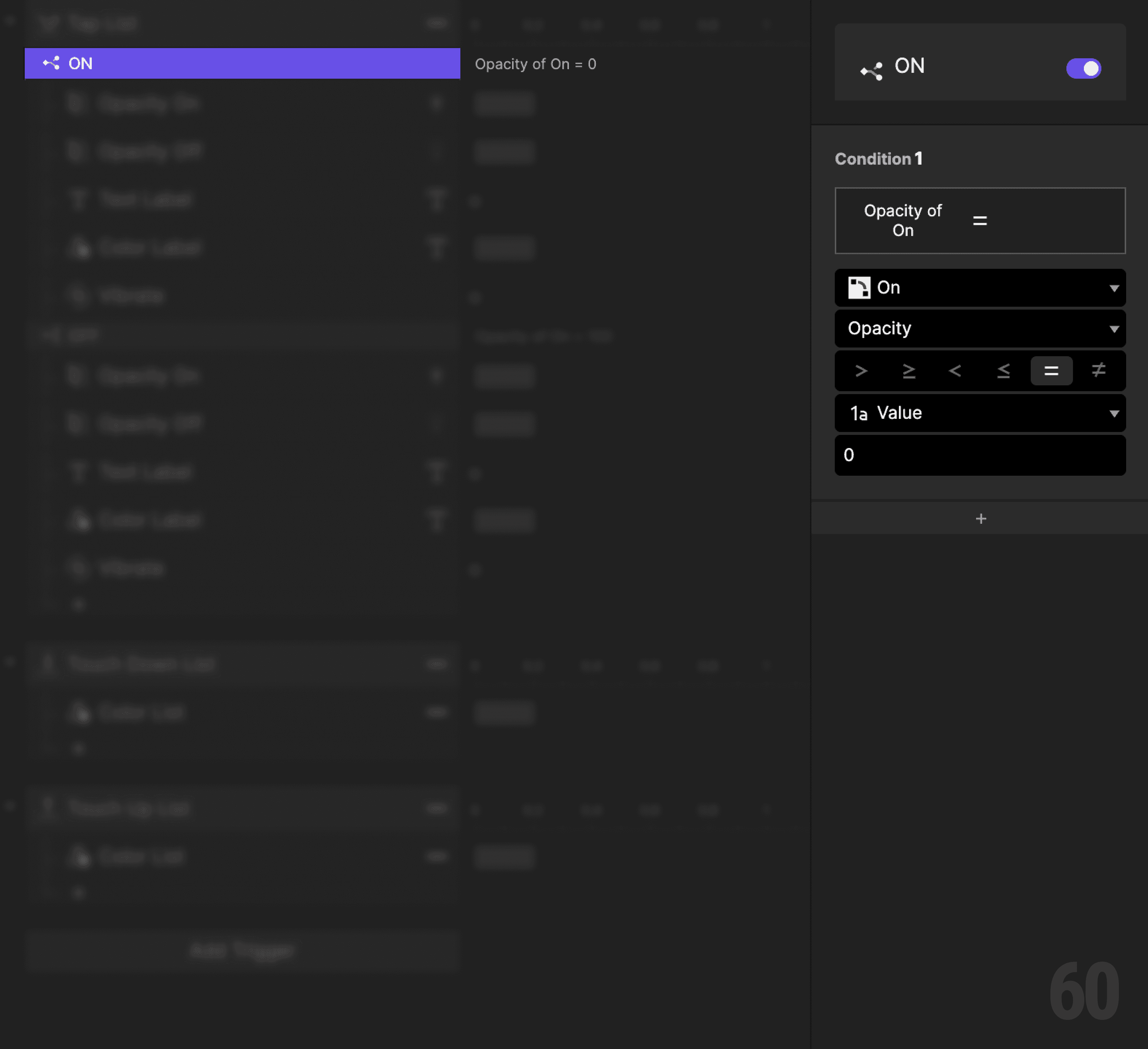

Step 2: Create a condition (turn on)
Add a Condition to the tap trigger.
Set the condition based on the opacity of the On icon.
This reads as:
When Opacity of On icon is 0%, then do the following.
This means the item is currently off.

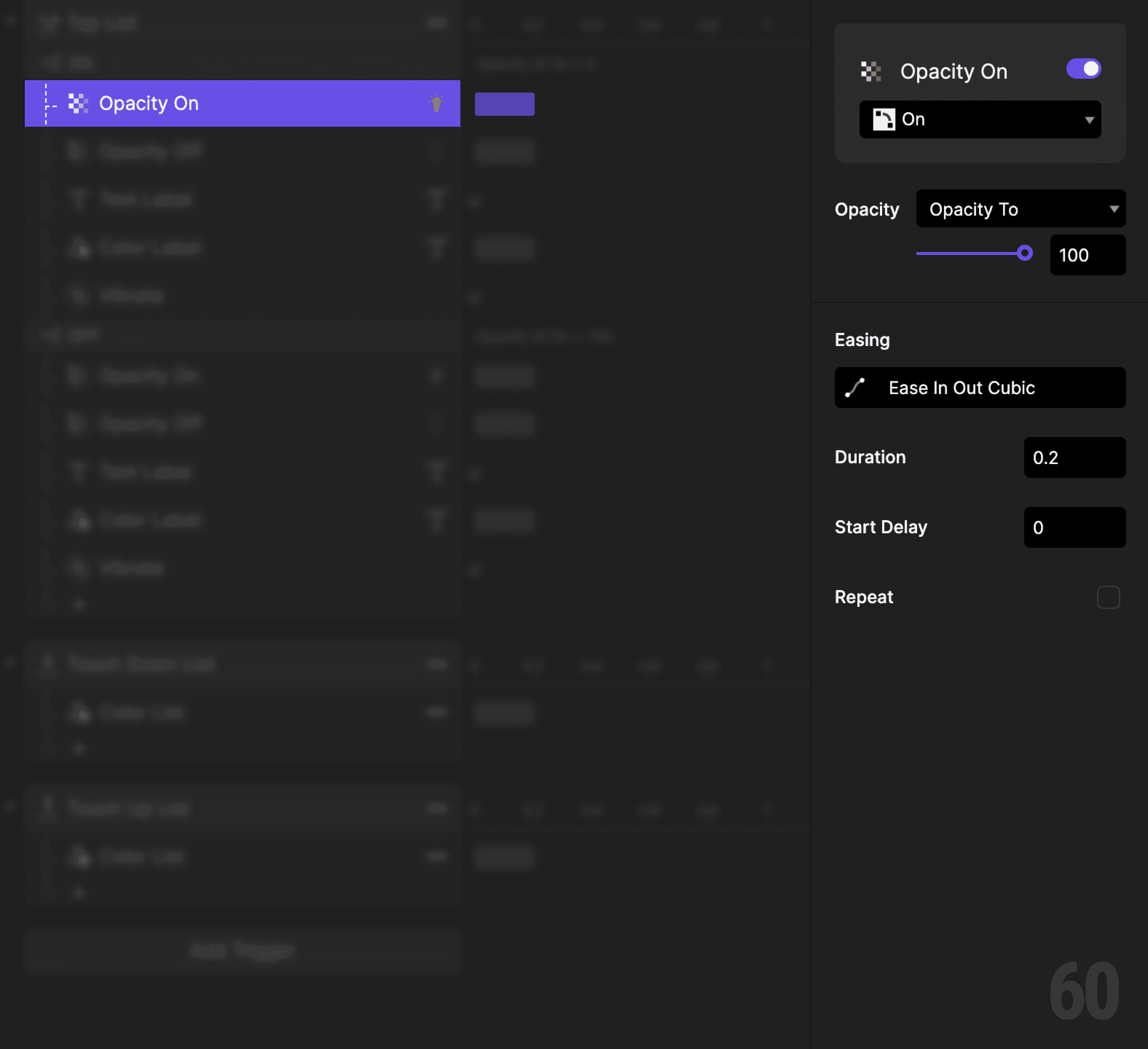

Step 3: Show the On icon
Add an Opacity response.
Target: On icon
Set opacity to 100%

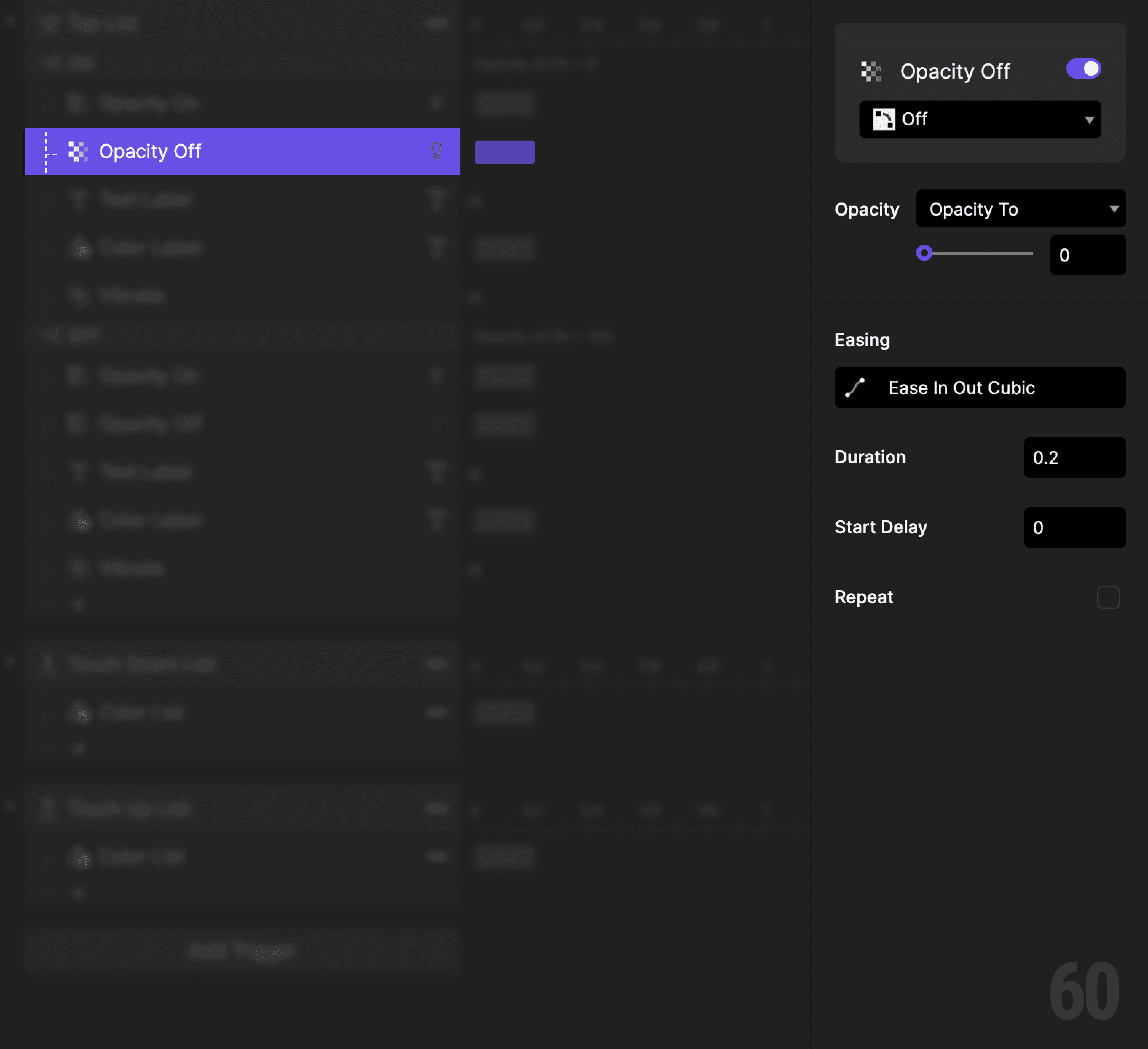

Step 4: Hide the Off icon
Add another Opacity response.
Target: Off icon
Set opacity to 0%

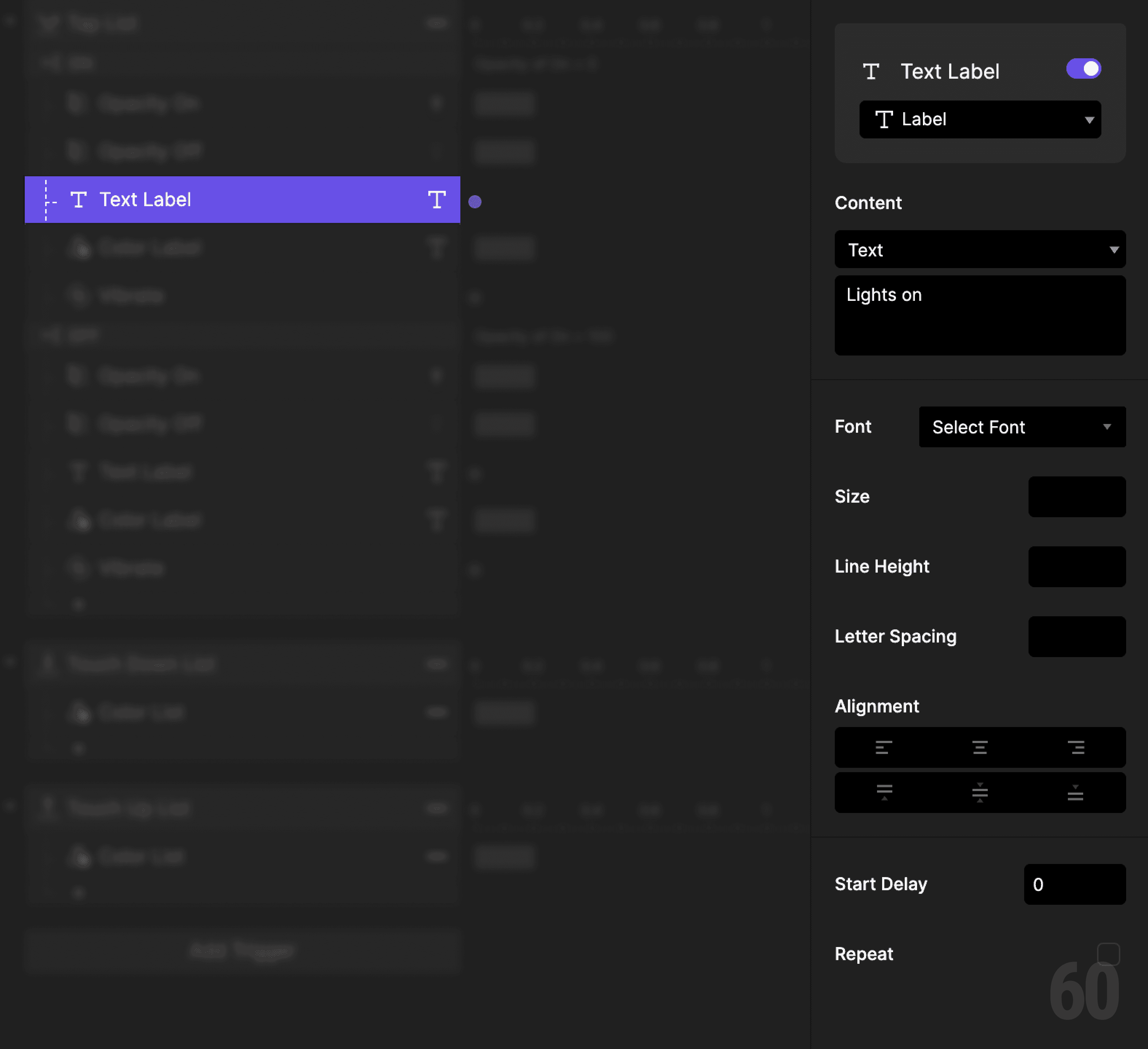

Step 5: Update the label text
Add a Text response.
Target: Label
Set content to Lights on
Step 6: Update the label color
Add a Color response.
Target: Label
Set fill to an active color
This reinforces the state change.

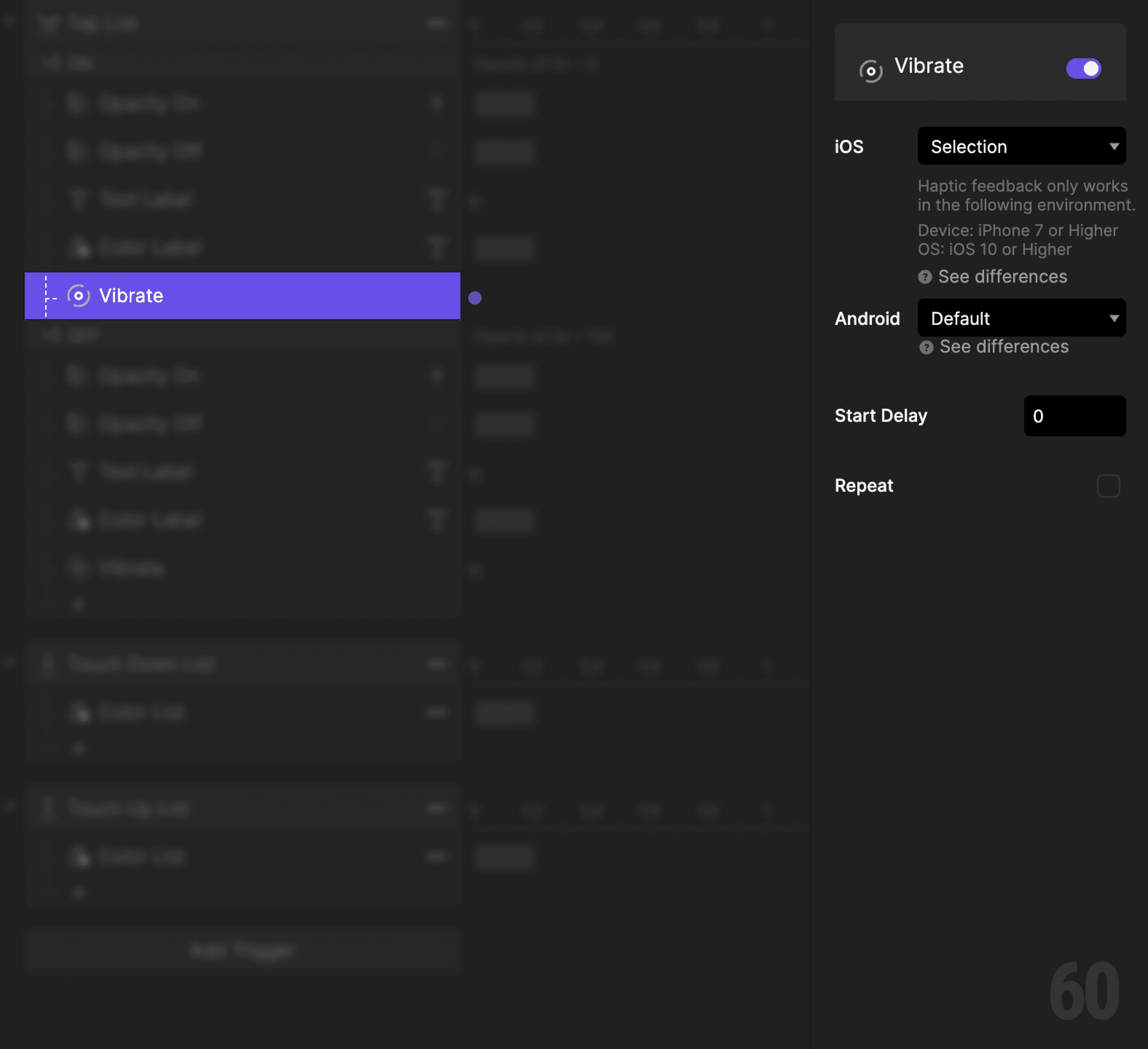

Step 7: Add haptic feedback
Add a Vibrate response.
Keep it subtle. This confirms the change.

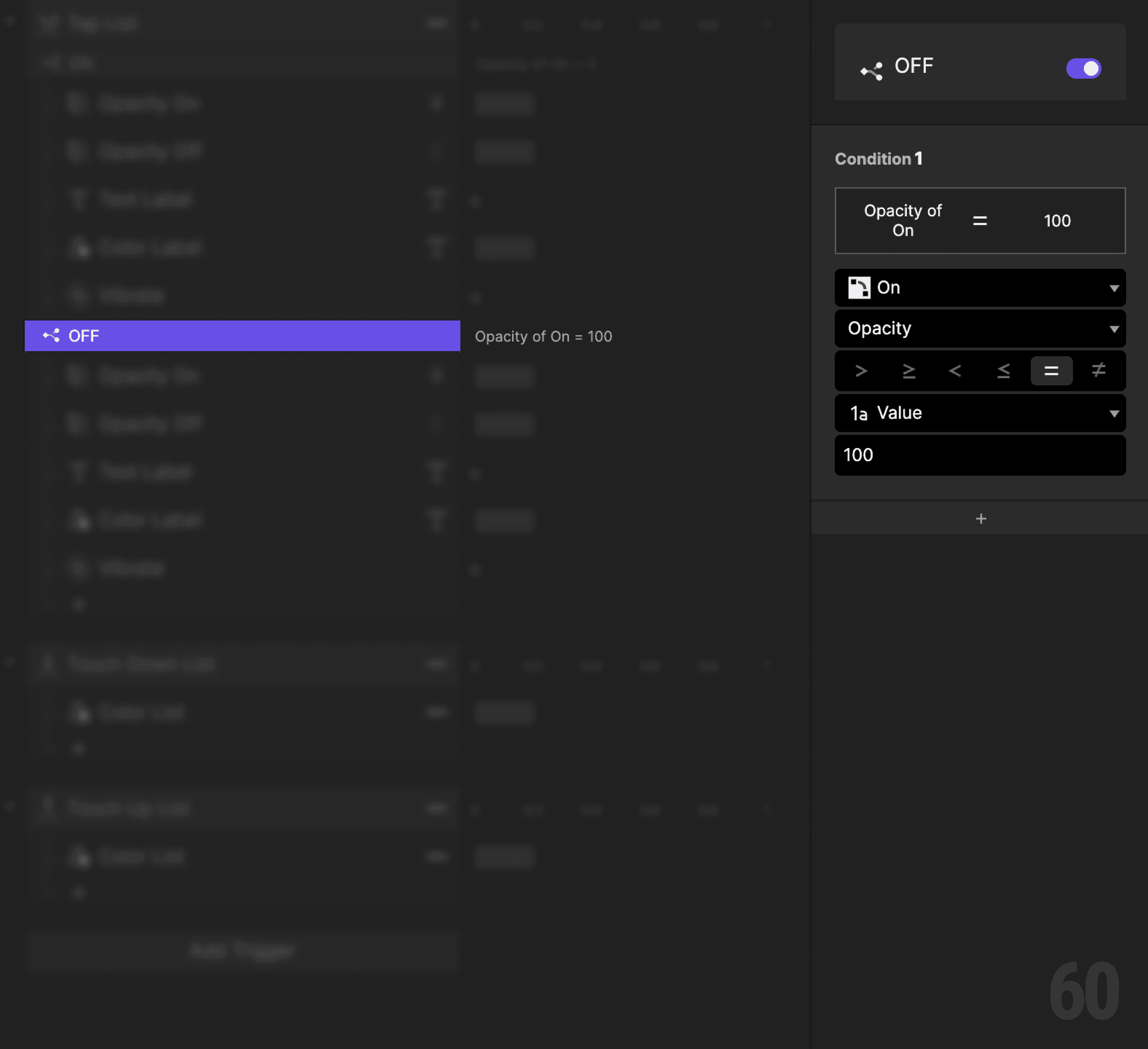

Step 8: Create a condition (turn off)
Add another Condition to the same tap trigger.
Set it again based on the opacity of the On icon.
This reads as:
When Opacity of On icon is 100%, then do the following.
This means the item is currently on.
Step 9: Hide the On icon
Add an Opacity response.
Target: On icon
Set opacity to 0%

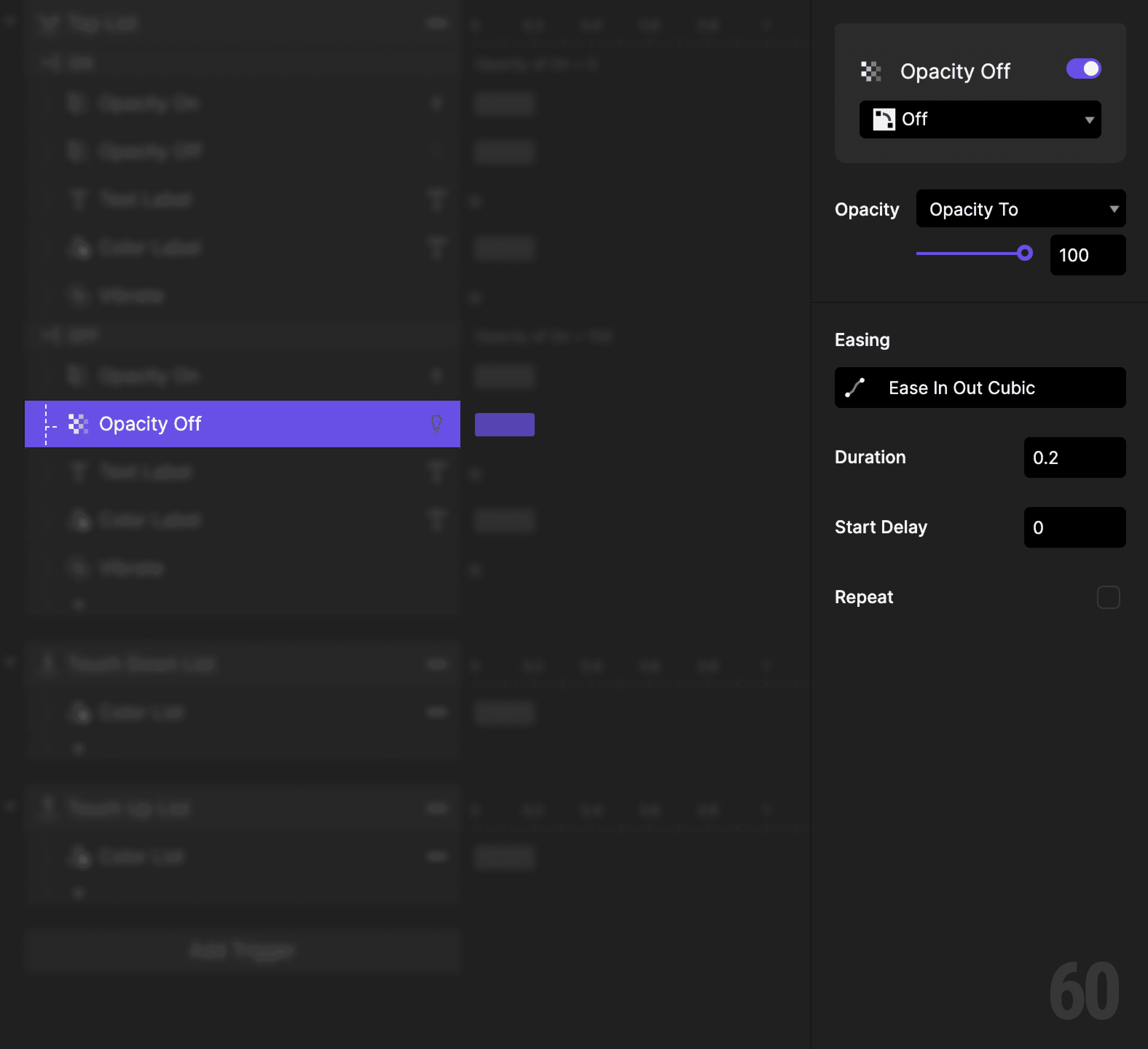

Step 10: Show the Off icon
Add an Opacity response.
Target: Off icon
Set opacity to 100%

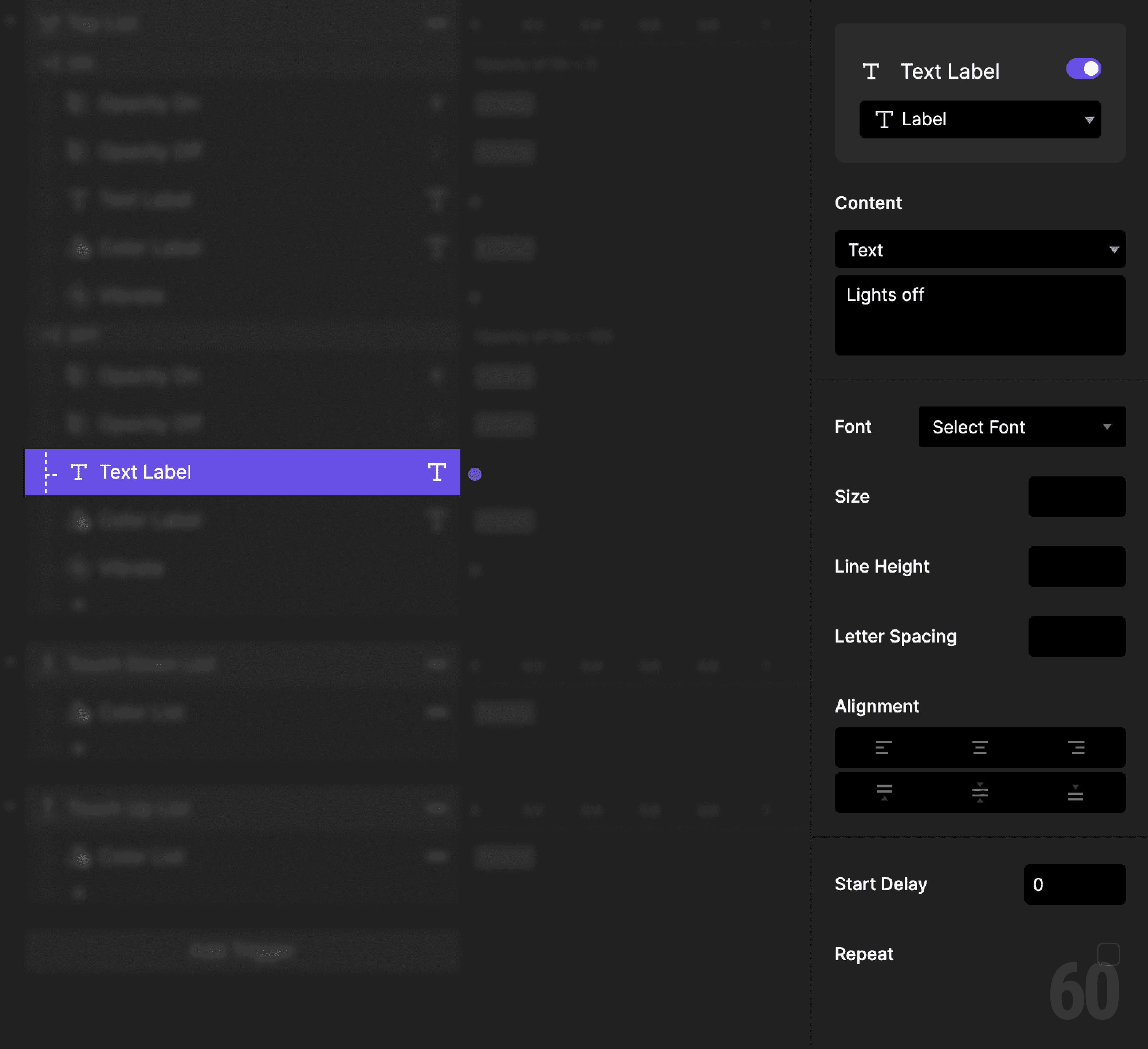

Step 11: Reset the label text
Add a Text response.
Target: Label
Set content back to Lights off

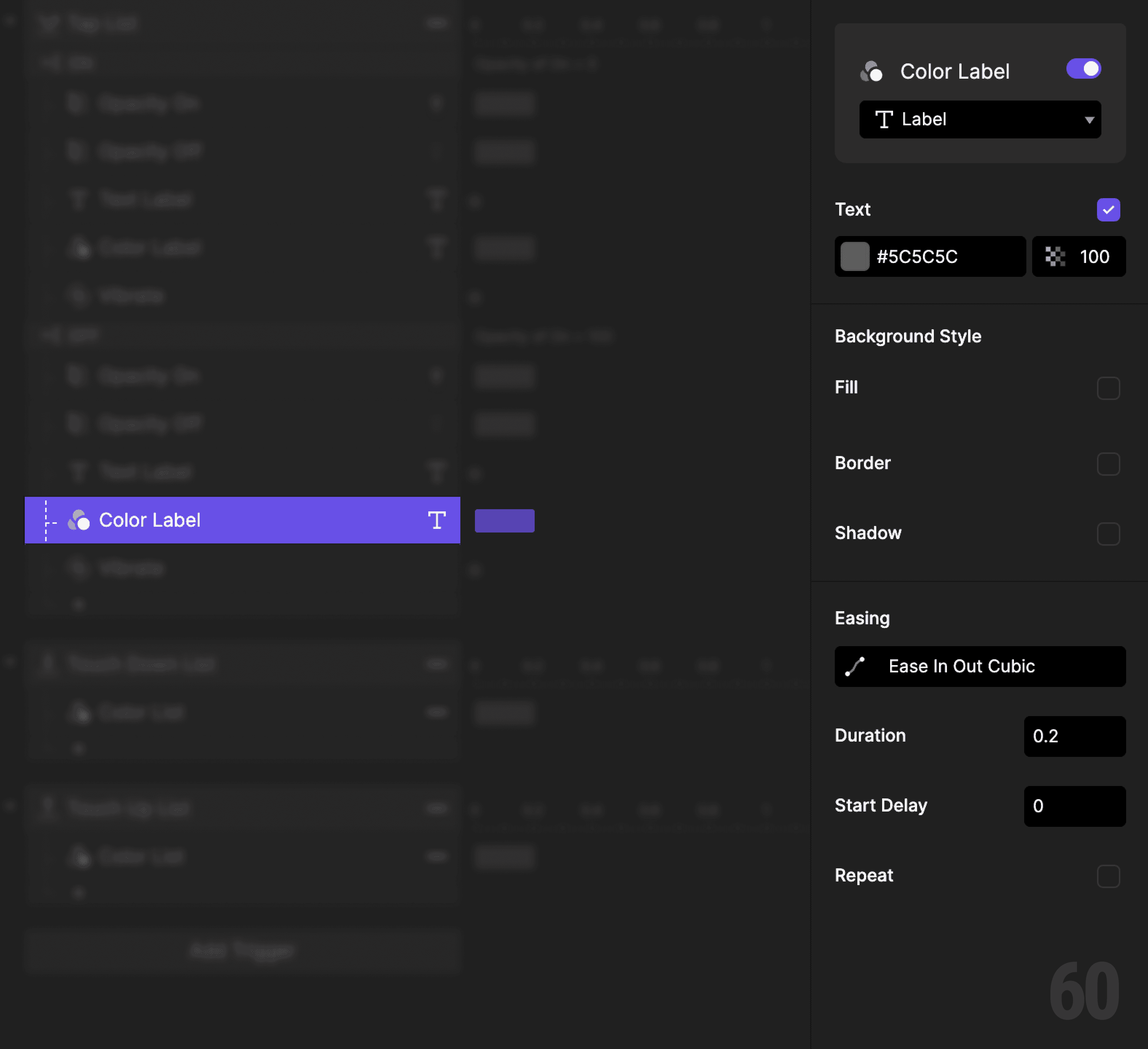

Step 12: Reset the label color
Add a Color response.
Target: Label
Set fill back to the default color

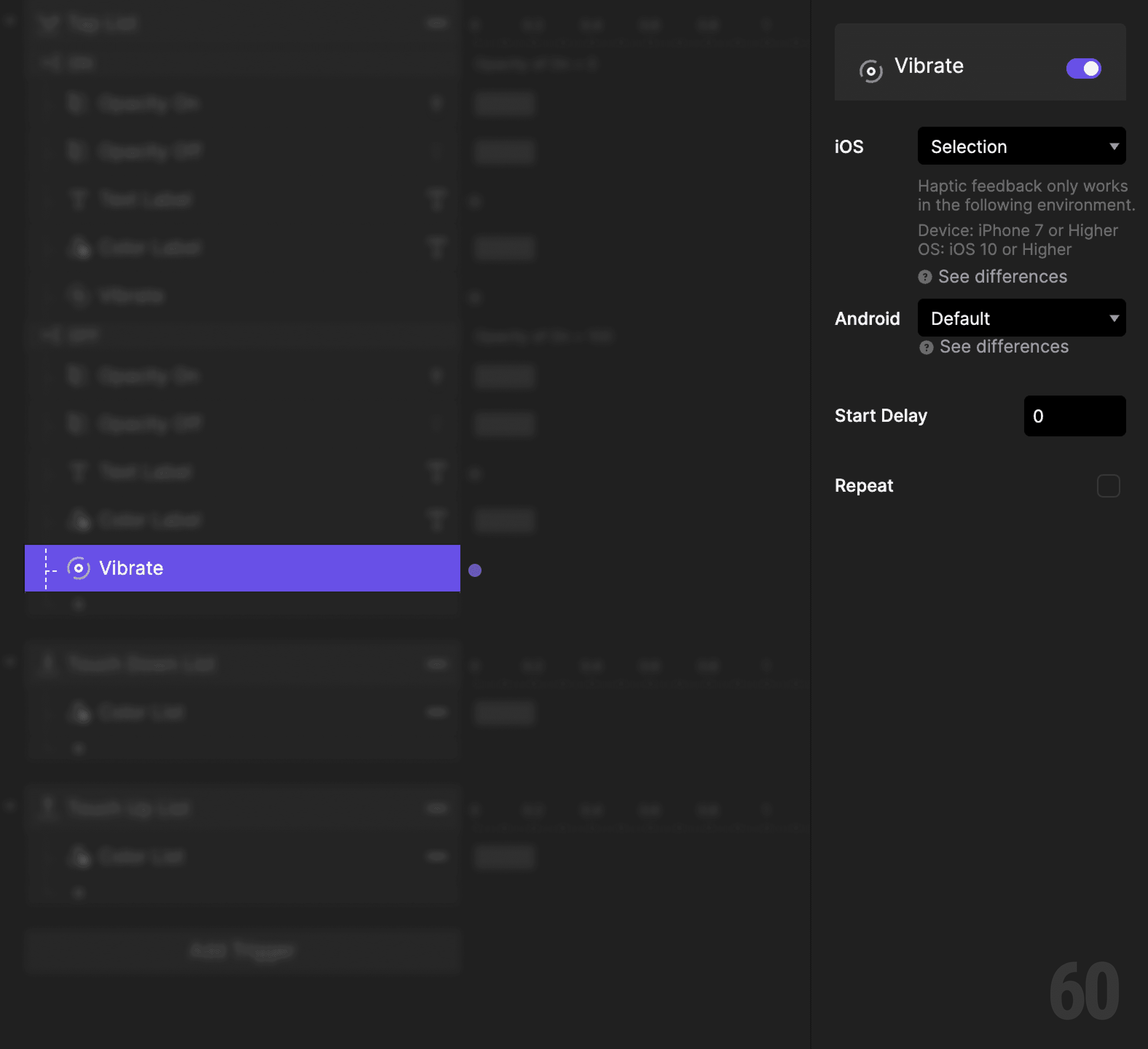

Step 13: Add haptic feedback
Add another Vibrate response.
Use the same haptic style as before.

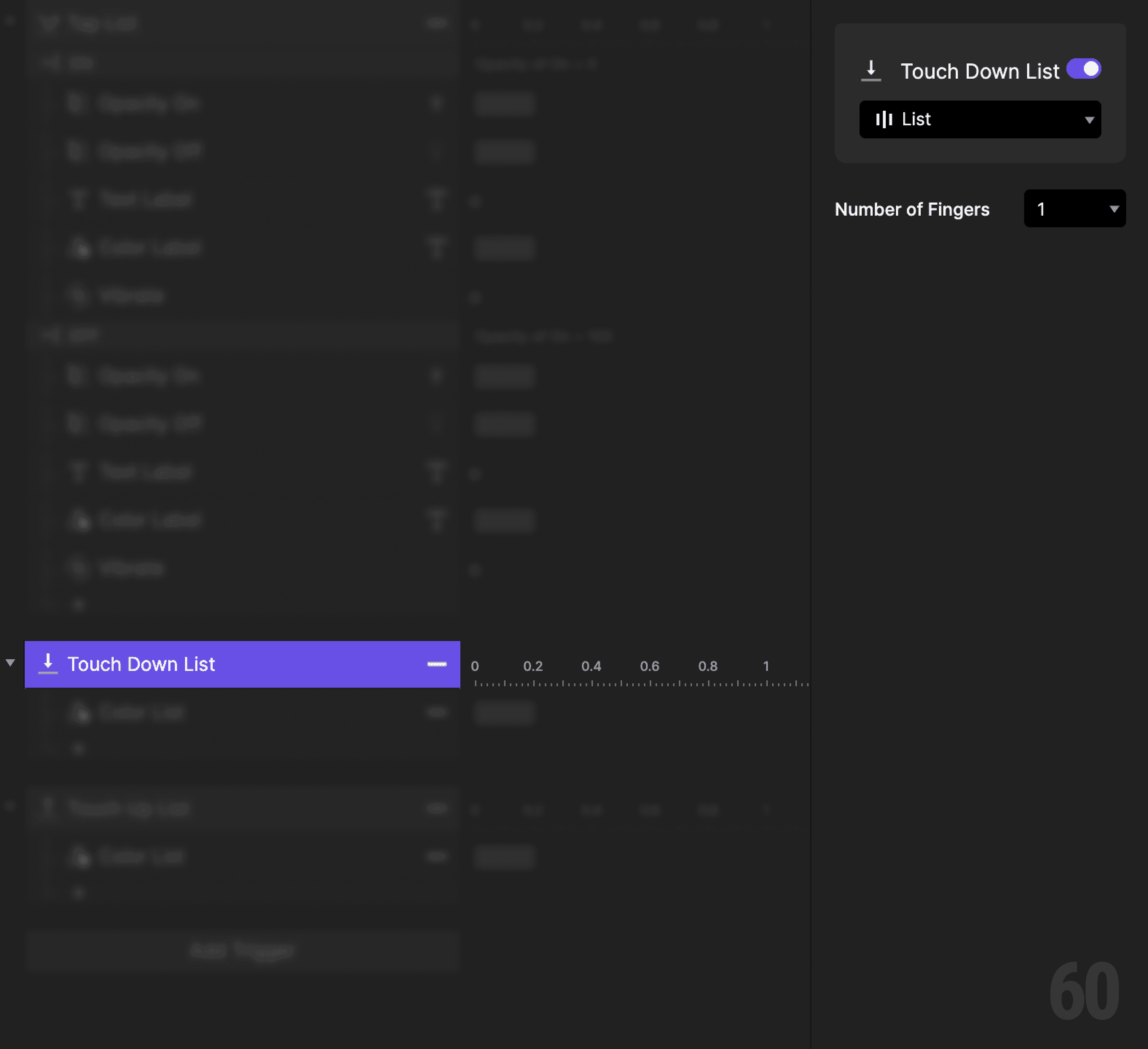

Step 14: Add touch down feedback
Select the List layer.
Add a Touch Down trigger.

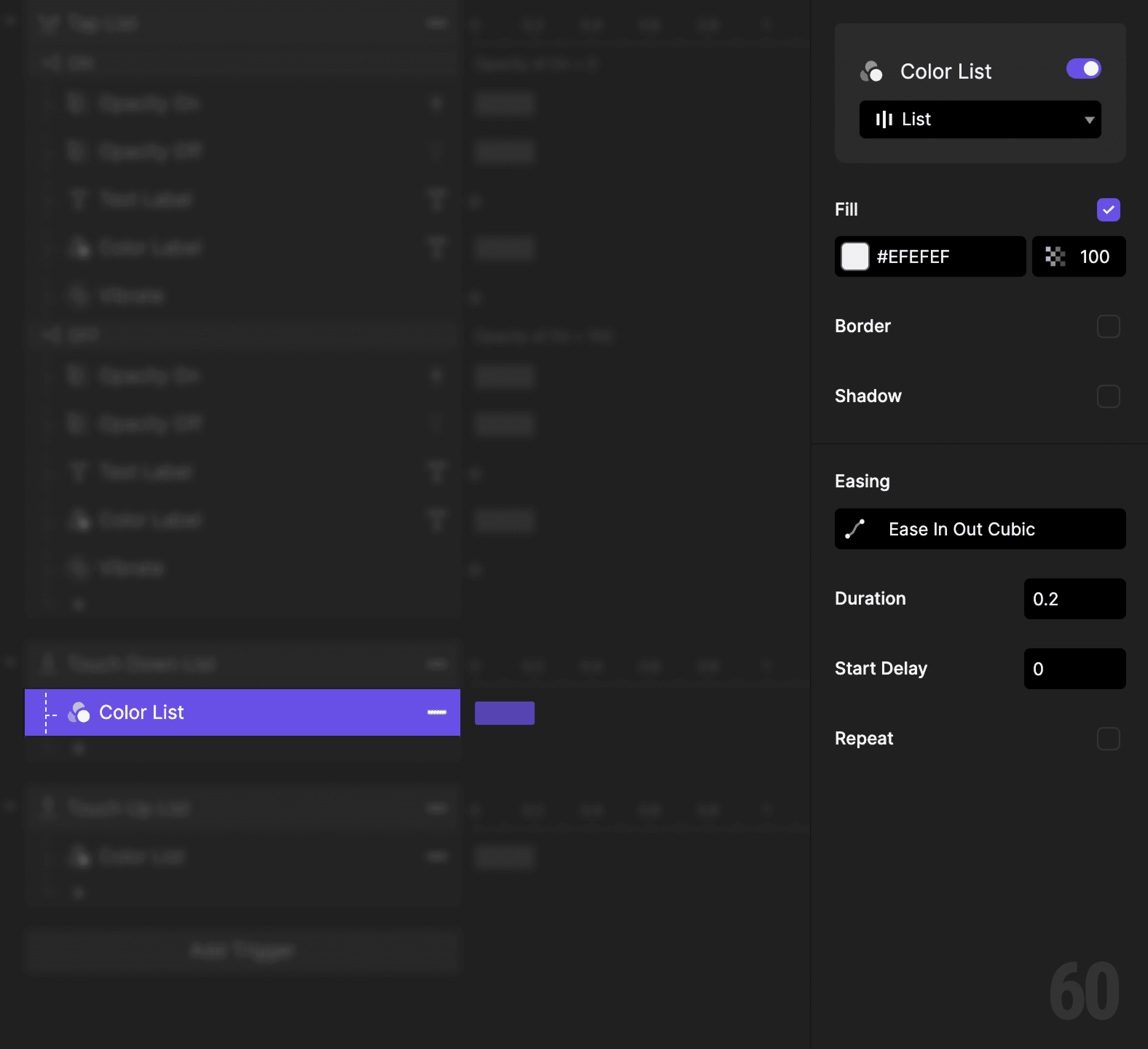

Step 15: Show press feedback
Add a Color response.
Target: List
Set fill to a subtle pressed color
This shows the row is being touched.

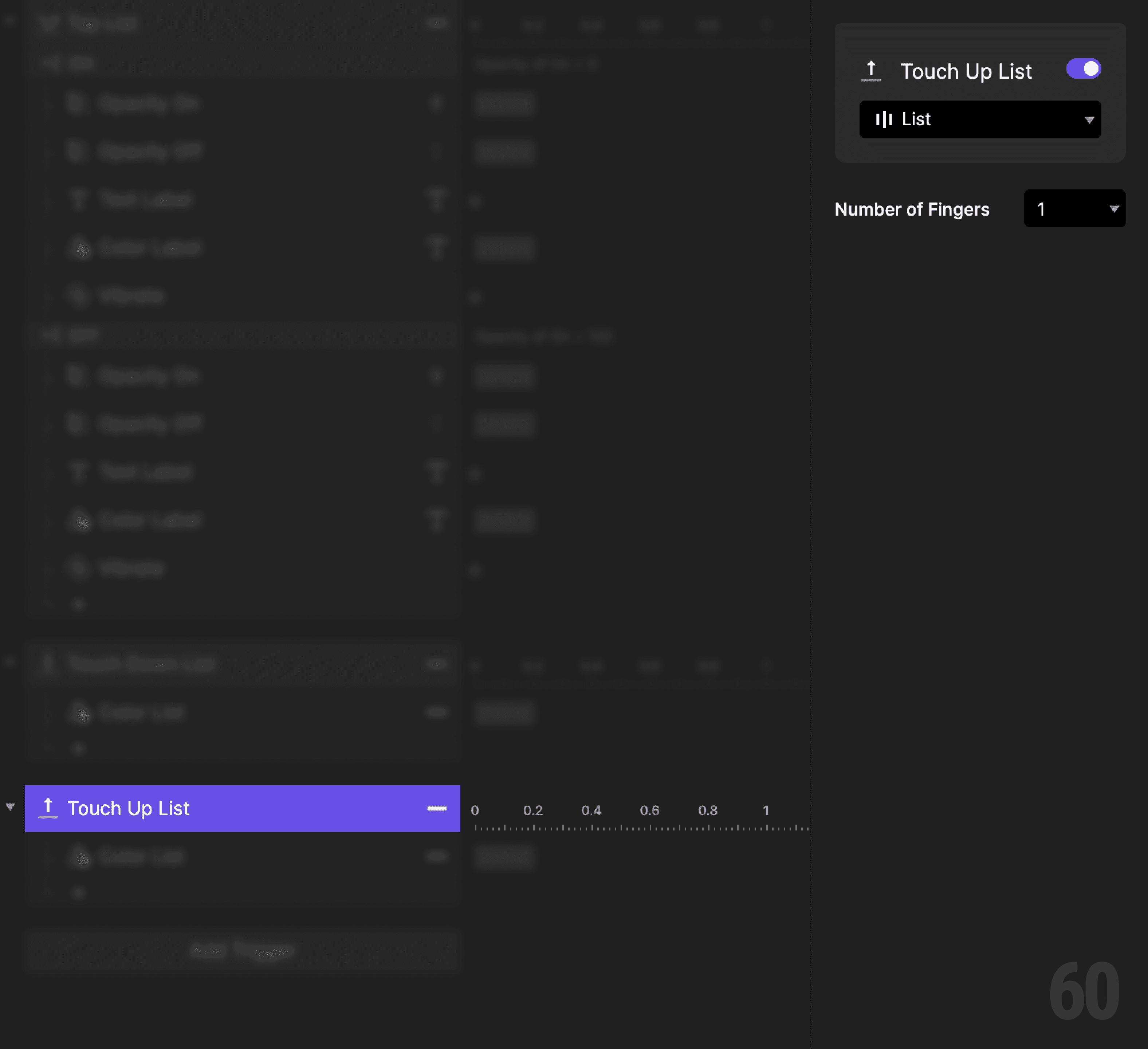

Step 16: Add touch up trigger
Add a Touch Up trigger to the List layer.

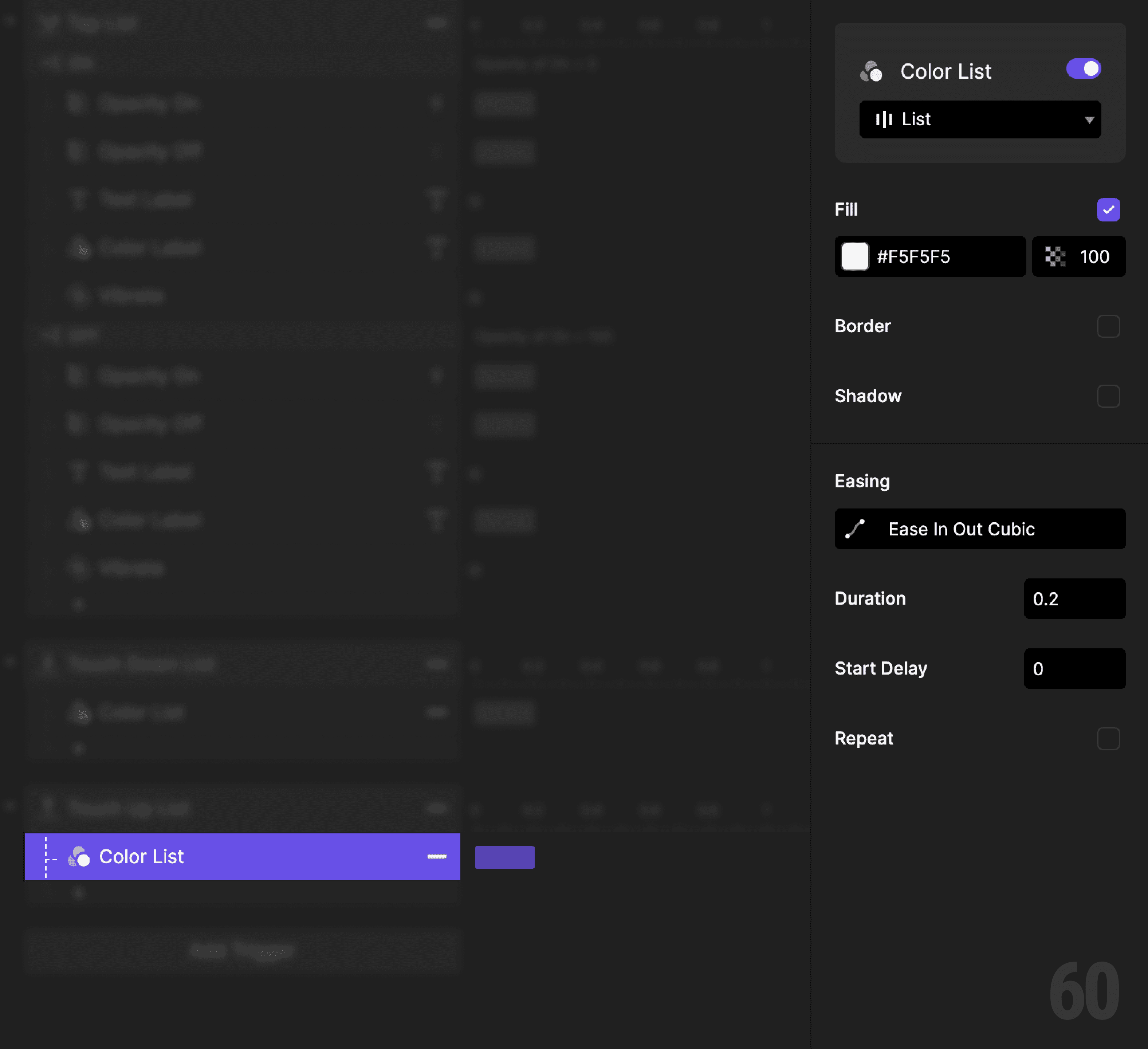

Step 17: Reset press feedback
Add a Color response.
Target: List
Set fill back to default
Step 18: Preview and test
Tap the list item repeatedly.
Check for:
Icons swapping correctly
Text and color updating together
Clear tap feedback on press
If everything updates in sync, the interaction is correct.
Try this next
Animate icon opacity transitions
Add multiple list items sharing logic
Replace opacity logic with a variable
