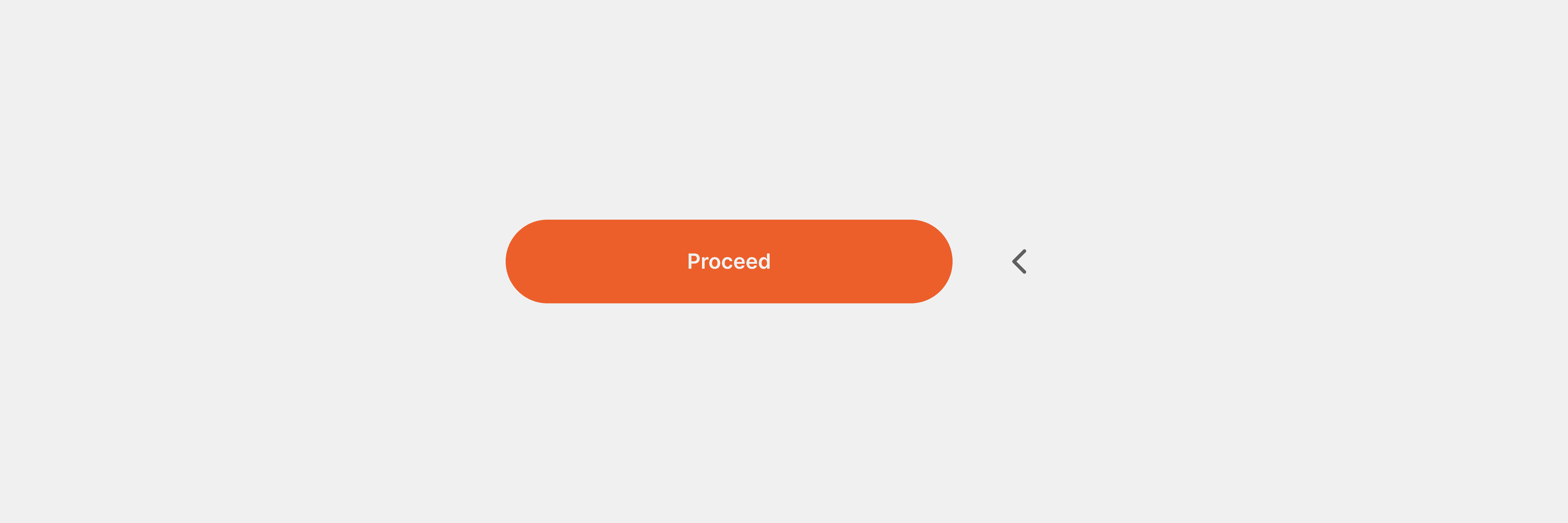

1.3 Simple Screen Transition
What you are building
A basic screen-to-screen navigation with press feedback.
Press a button.
The button responds.
The next screen slides in.
This is the foundation of navigation in iOS.
How to think about it
A screen transition is not just movement.
It is a sequence.
First, acknowledge the press.
Then, move to the next screen.
When feedback and navigation are separated in time, the interface feels intentional instead of rushed.
Recreate this in ProtoPie
Start by creating two scenes:
Scene 1: Primary screen with a button
Scene 2: Secondary screen with a back button
Each scene has its own interaction, but they follow the same logic.

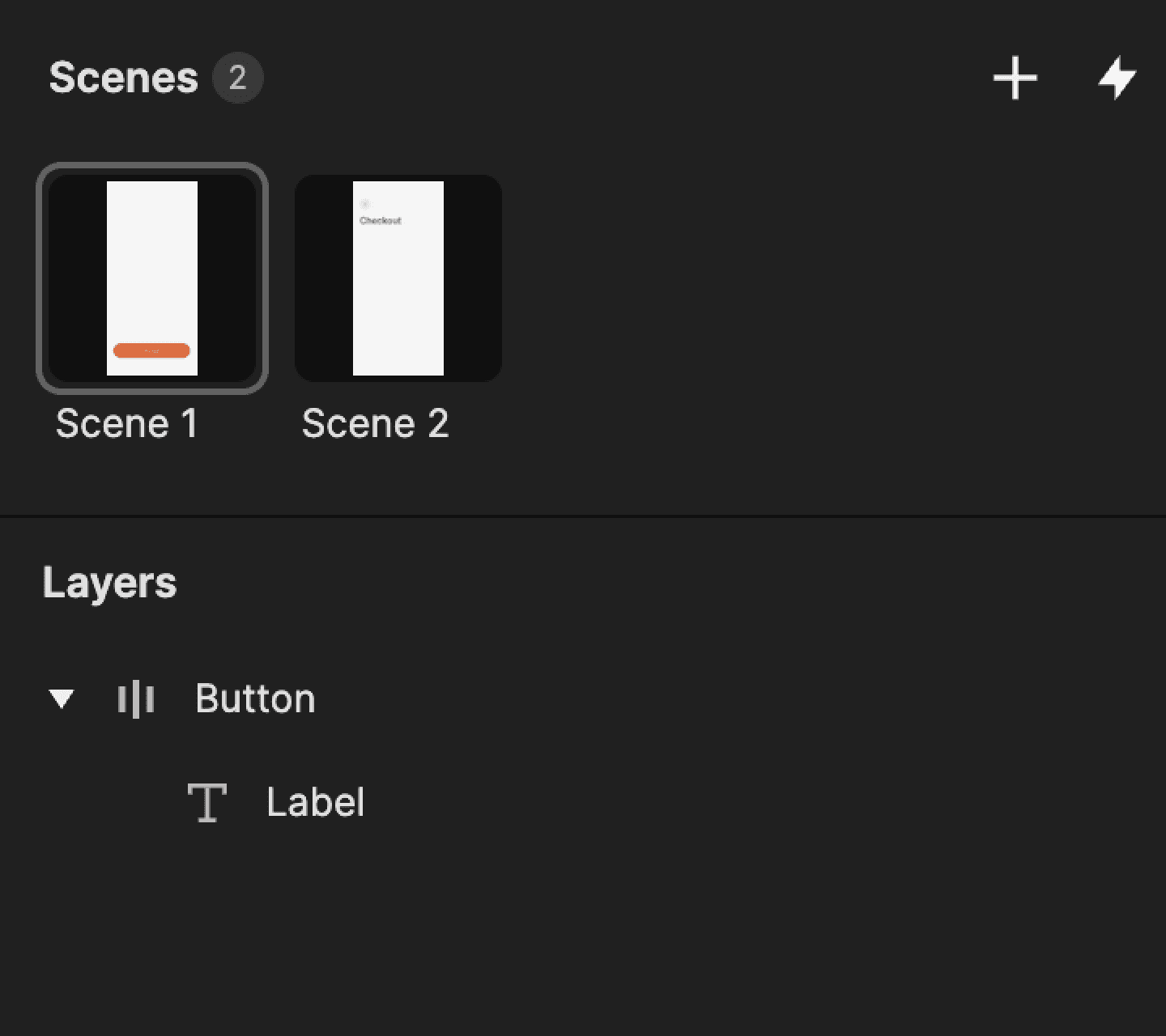

Scene 1: Forward navigation
In Scene 1, create two layers:
Button: the base shape
Label: the text inside it
This is the primary navigation trigger.

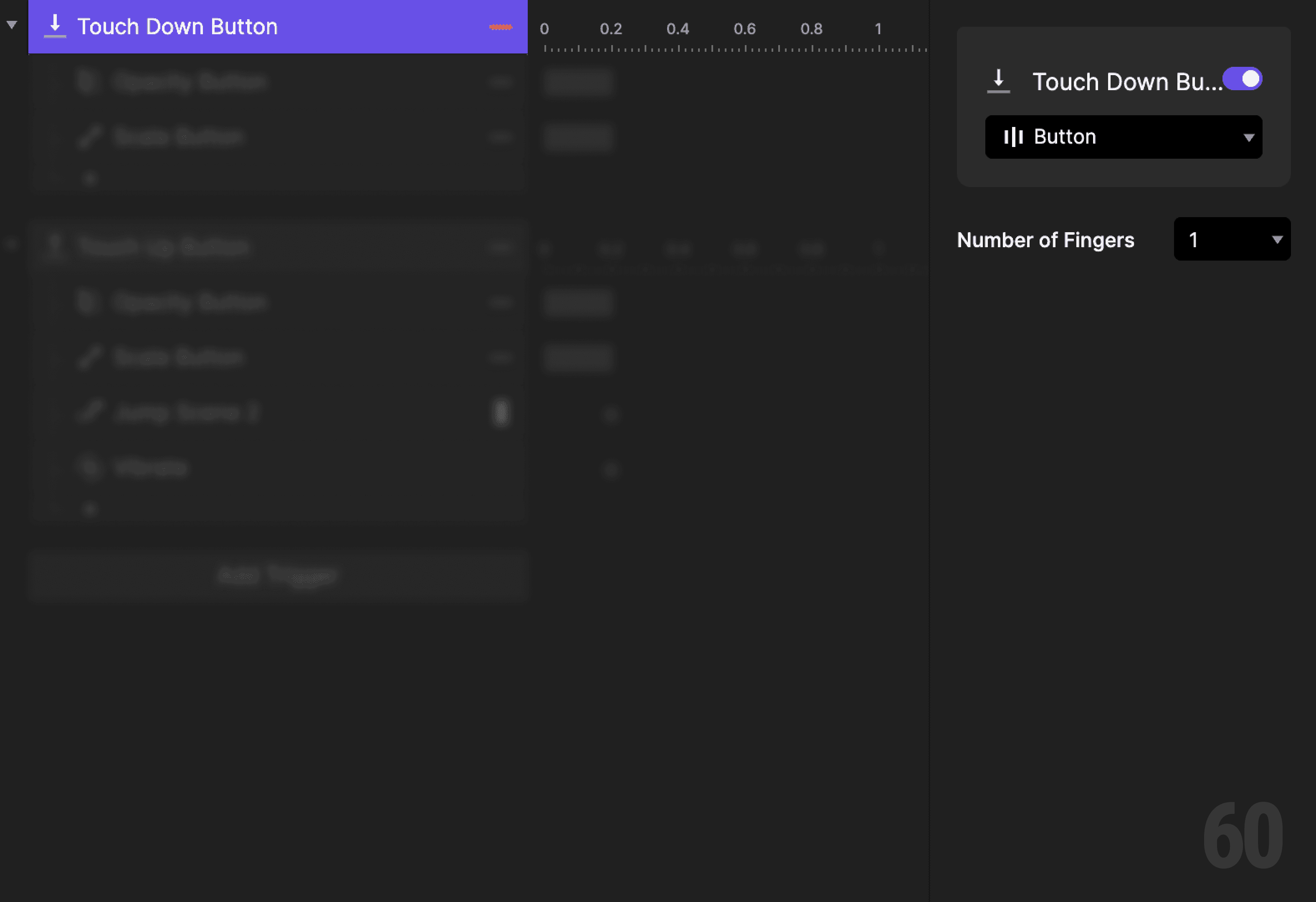

Step 1: Add touch down trigger
Select the Button layer.
Add a Touch Down trigger.
This fires the moment the user presses the button.

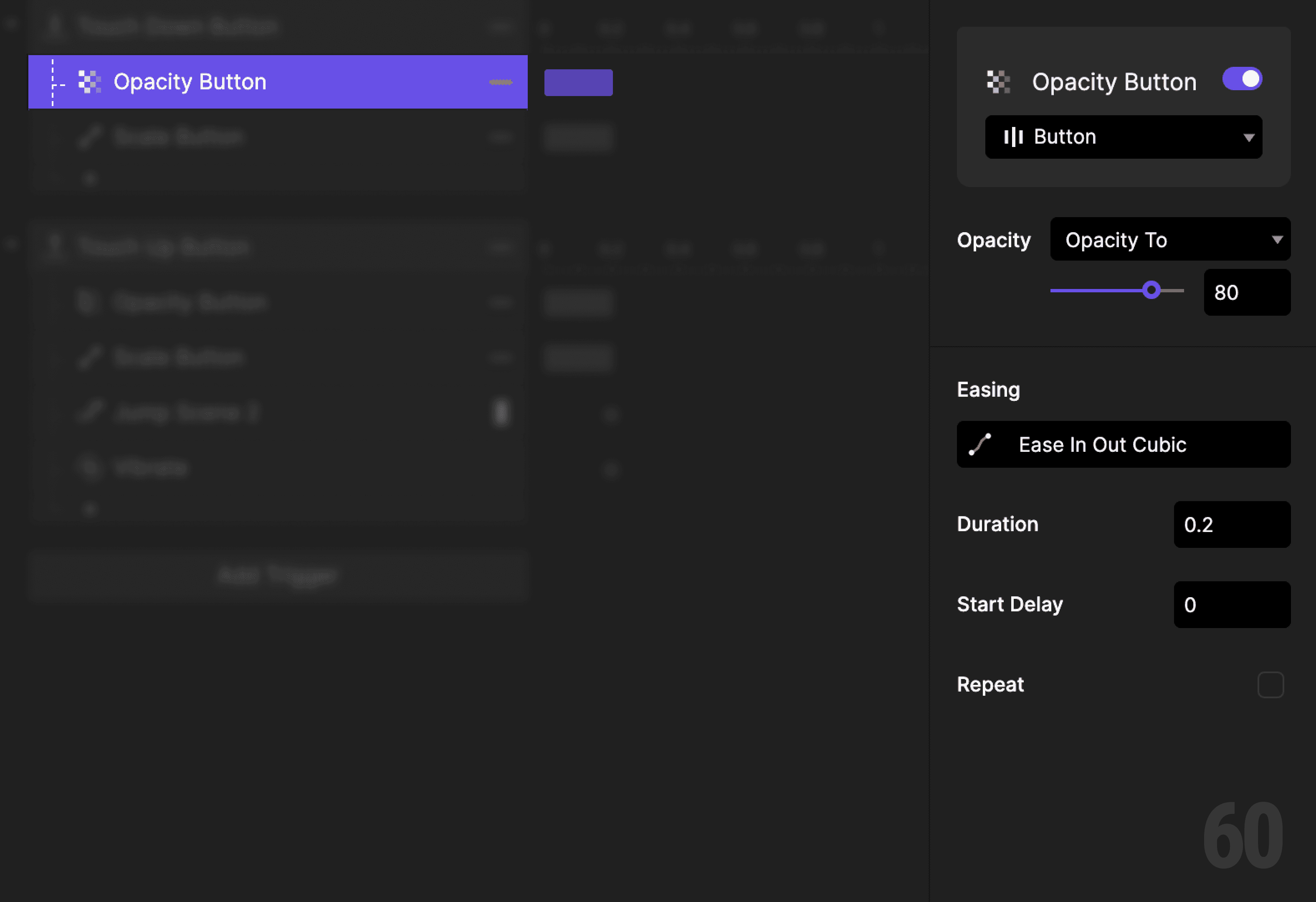

Step 2: Reduce button opacity
Add an Opacity response.
Target: Button
Set opacity to 80%
This visually acknowledges the press.

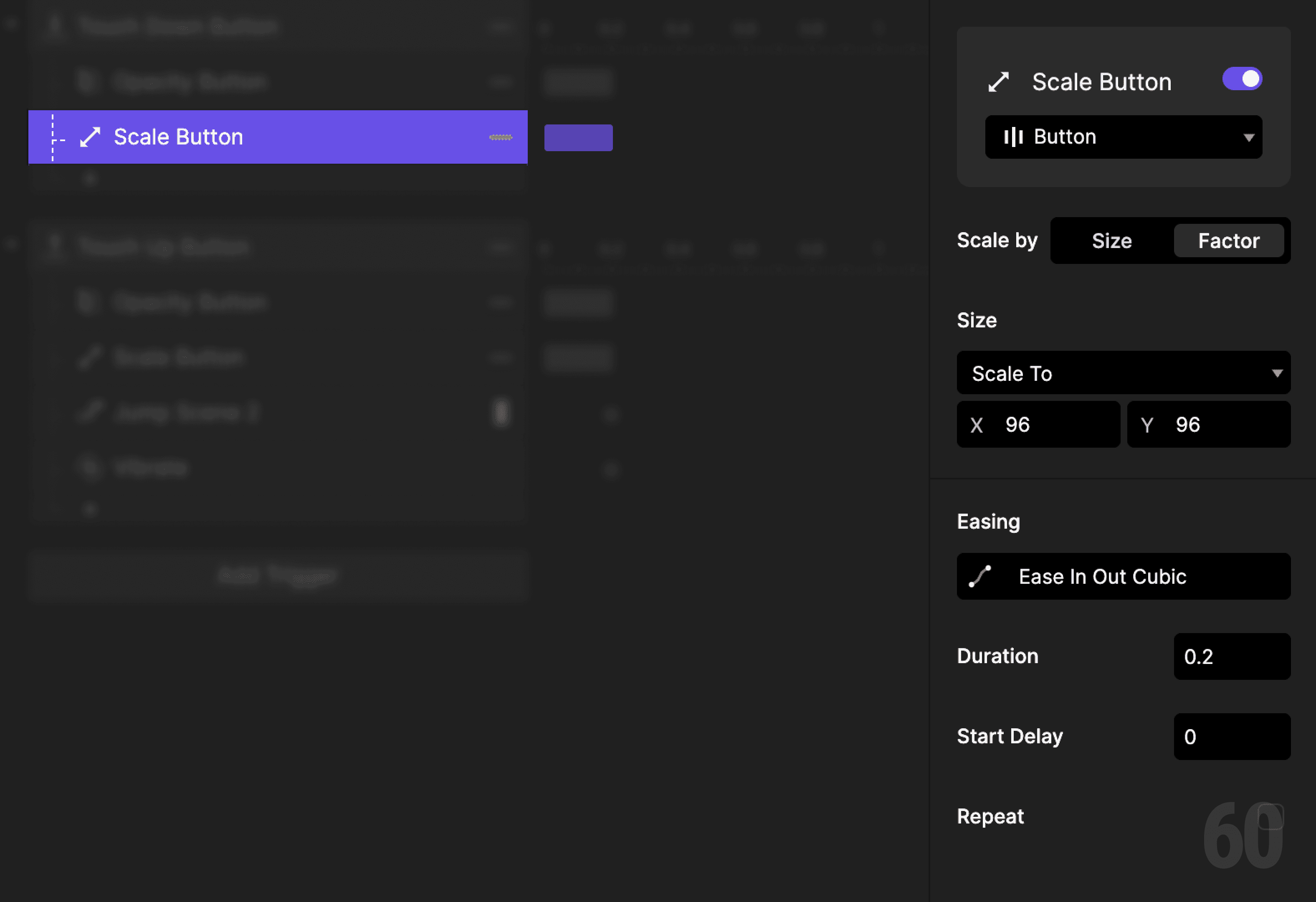

Step 3: Scale the button down
Add a Scale response.
Target: Button
Scale by Factor
Set X and Y to 96
This adds a subtle physical press effect.

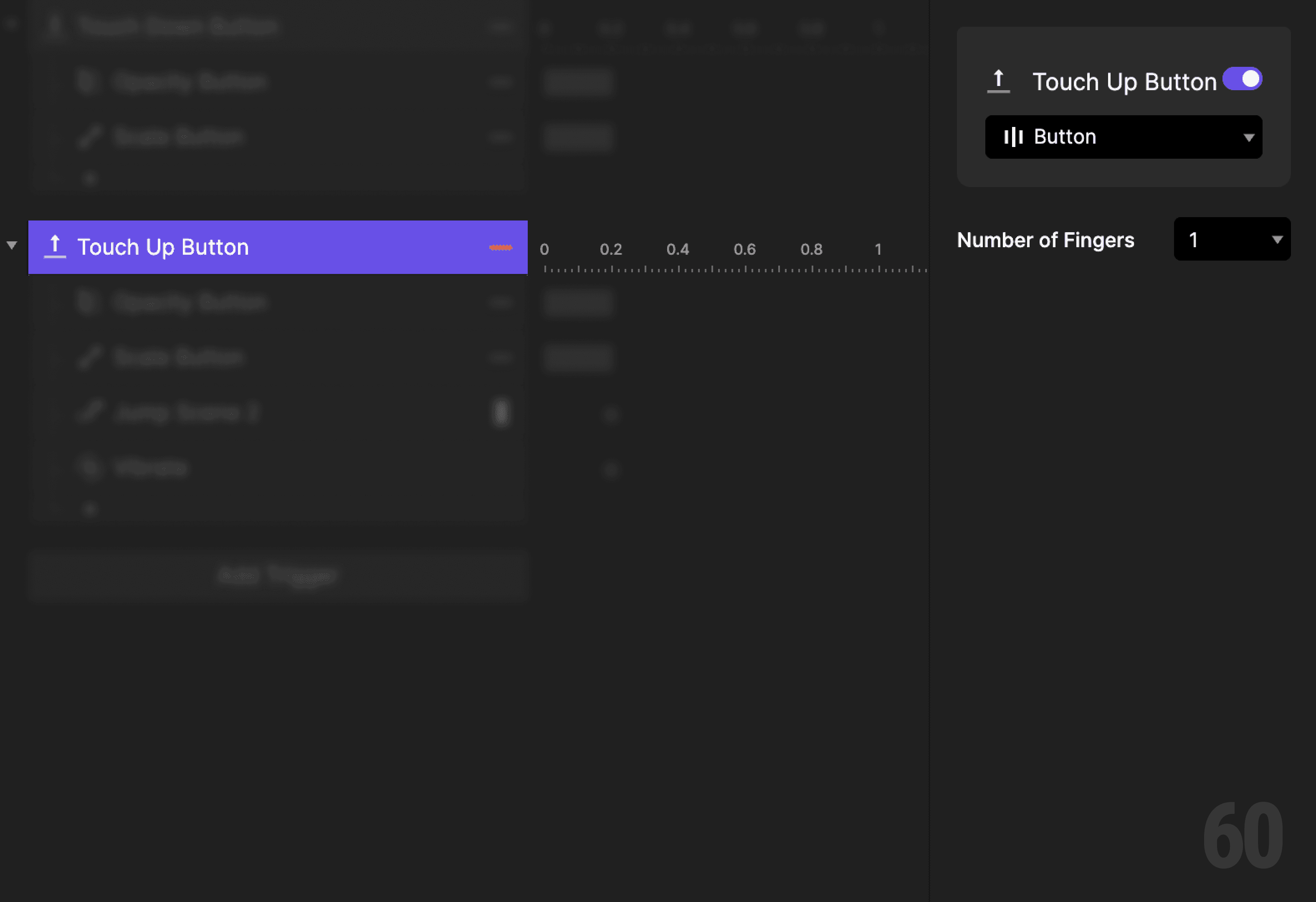

Step 4: Add touch up trigger
Add a Touch Up trigger to the Button layer.
This fires when the finger is released.

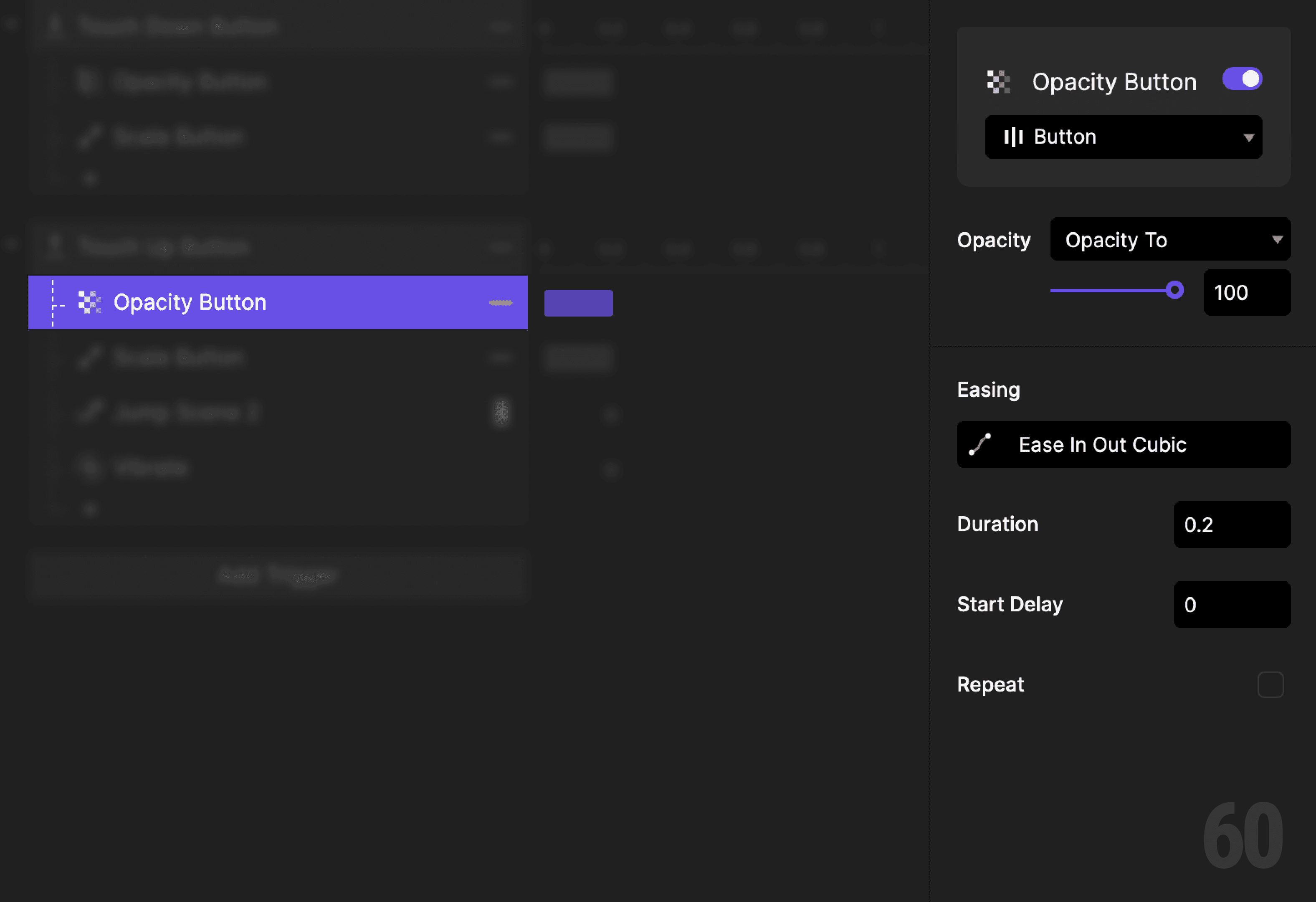

Step 5: Restore button opacity
Add an Opacity response.
Target: Button
Set opacity back to 100%
This returns the button to its default state.

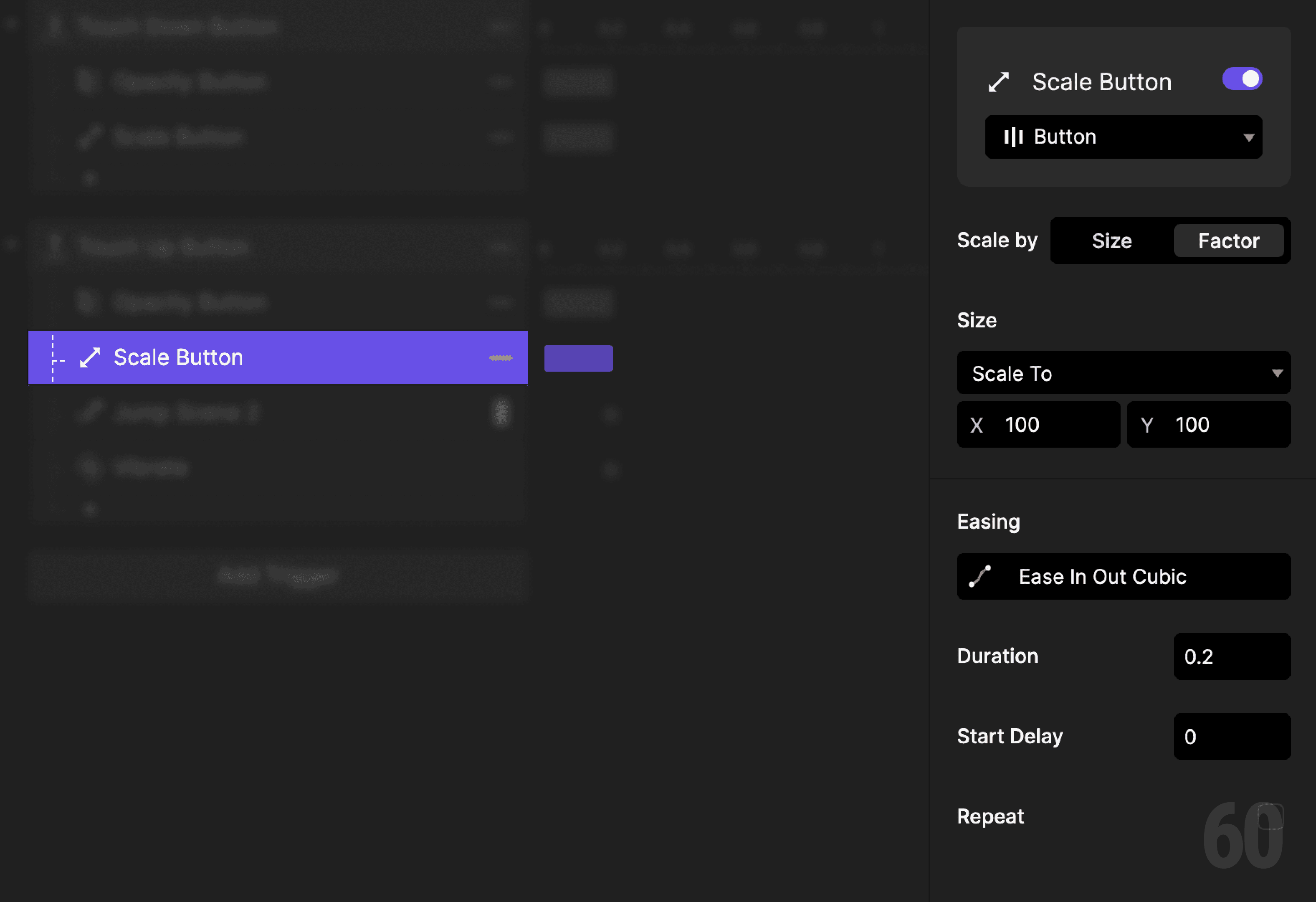

Step 6: Restore button scale
Add a Scale response.
Target: Button
Reset scale to default
Use the same easing and duration as the press down.

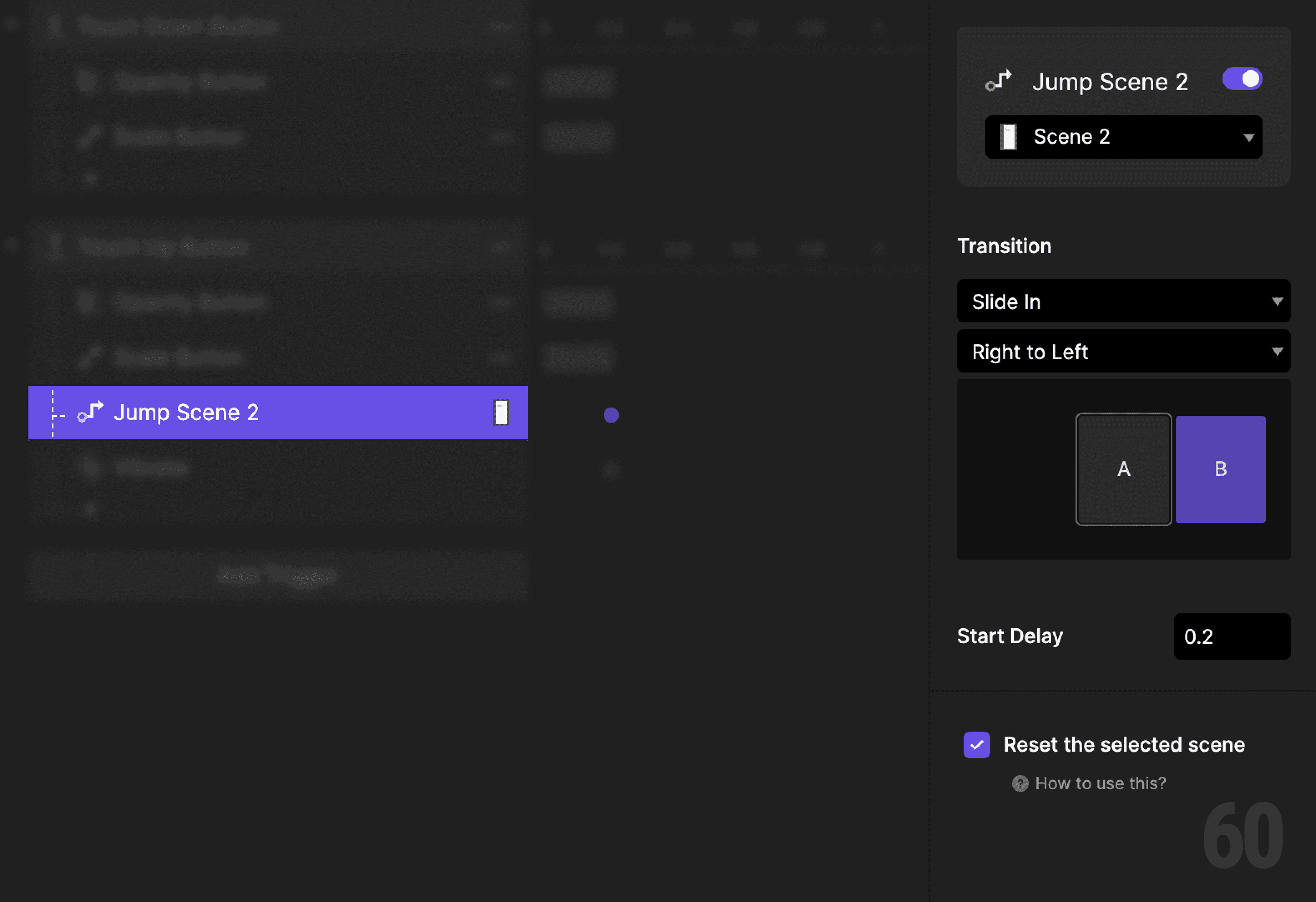

Step 7: Jump to Scene 2
Add a Jump response.
Destination: Scene 2
Transition: Slide In
Direction: Right to Left
Delay: 0.2s
The delay ensures navigation happens after the press feedback completes.

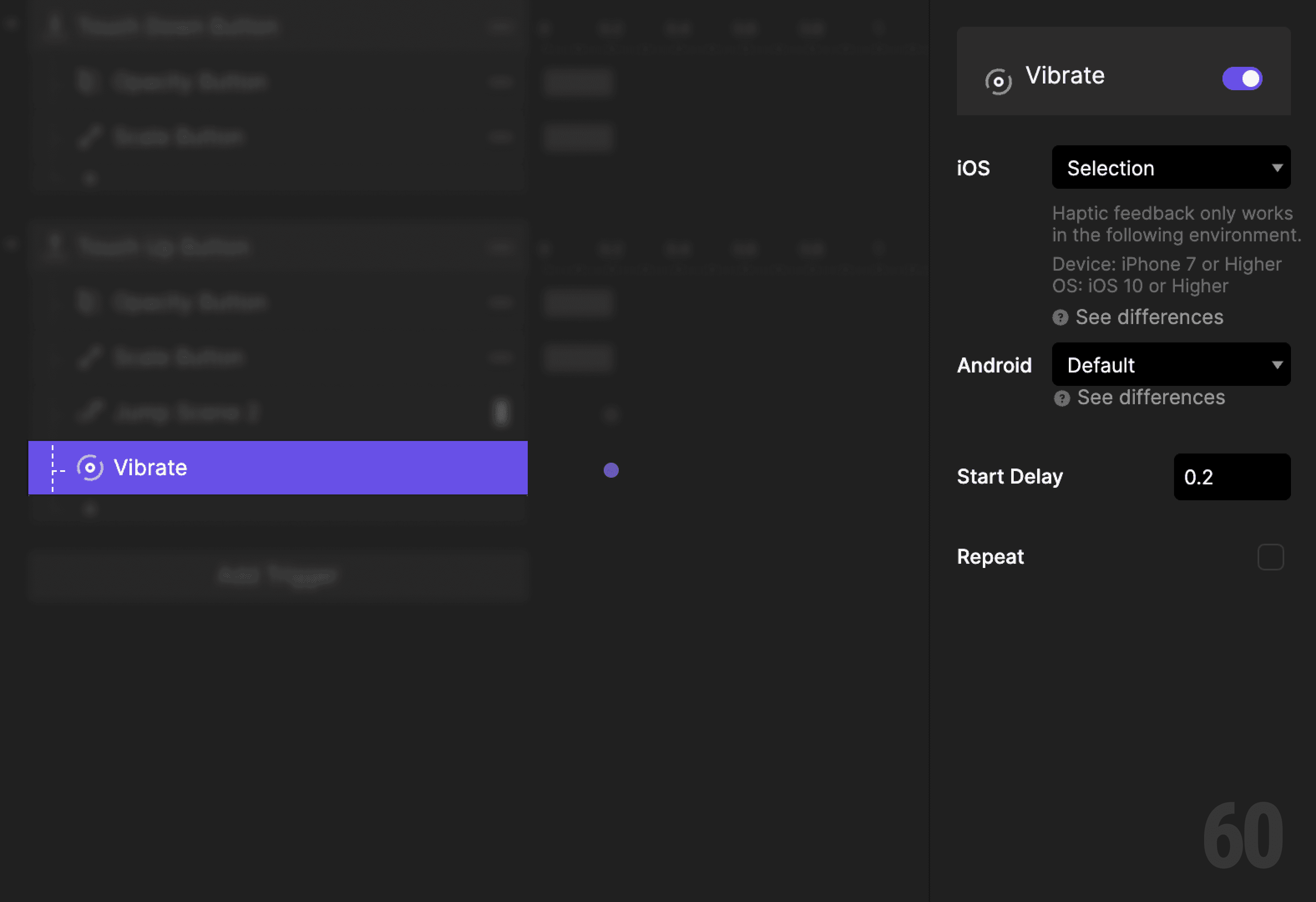

Step 8: Add haptic feedback
Add a Vibrate response.
Delay: 0.2s
The haptic should trigger at the same moment as the transition.
Scene 2: Back navigation

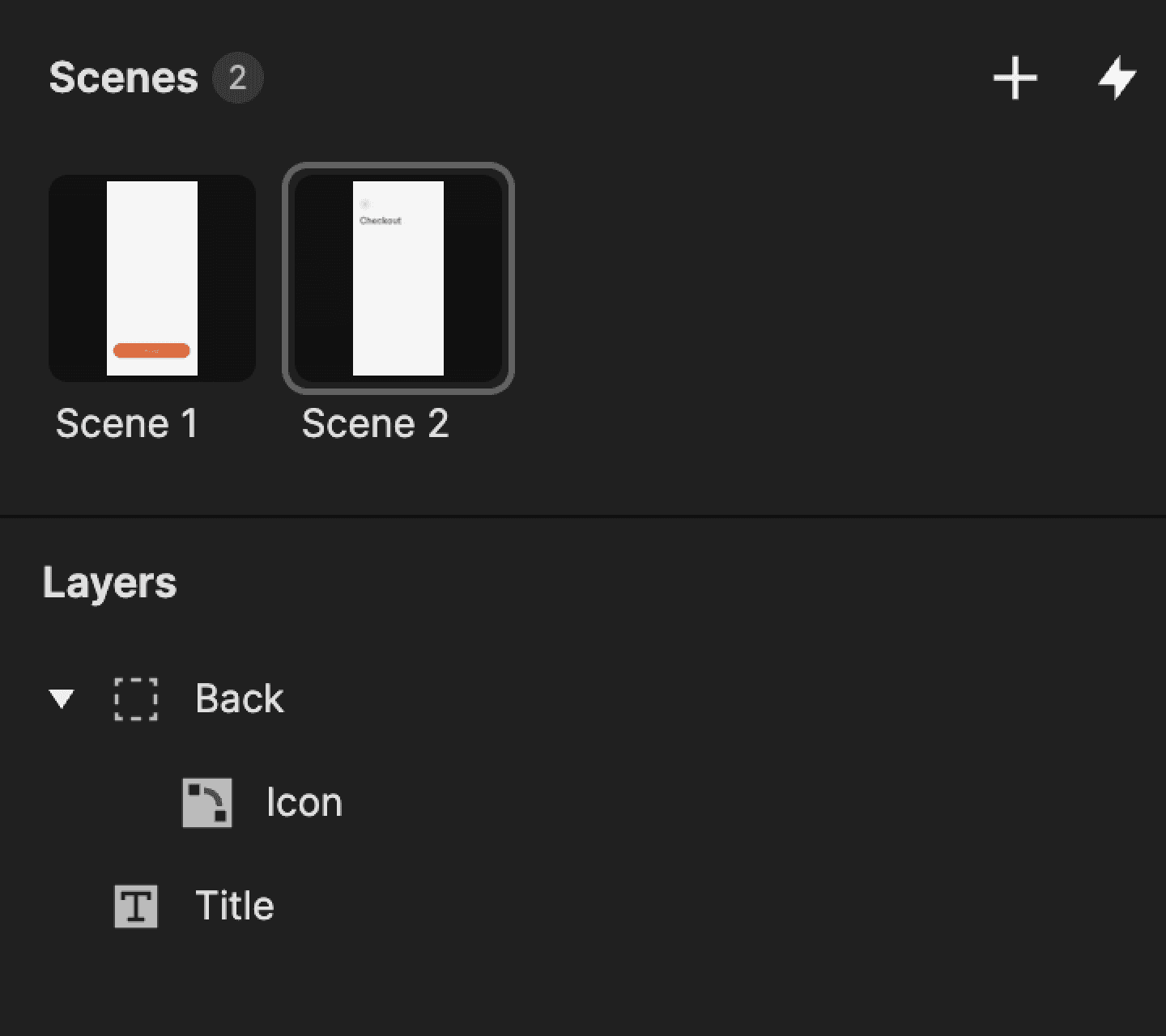

In Scene 2, create two layers:
Back: the base shape
Icon: the back arrow inside it
This returns the user to the previous screen.

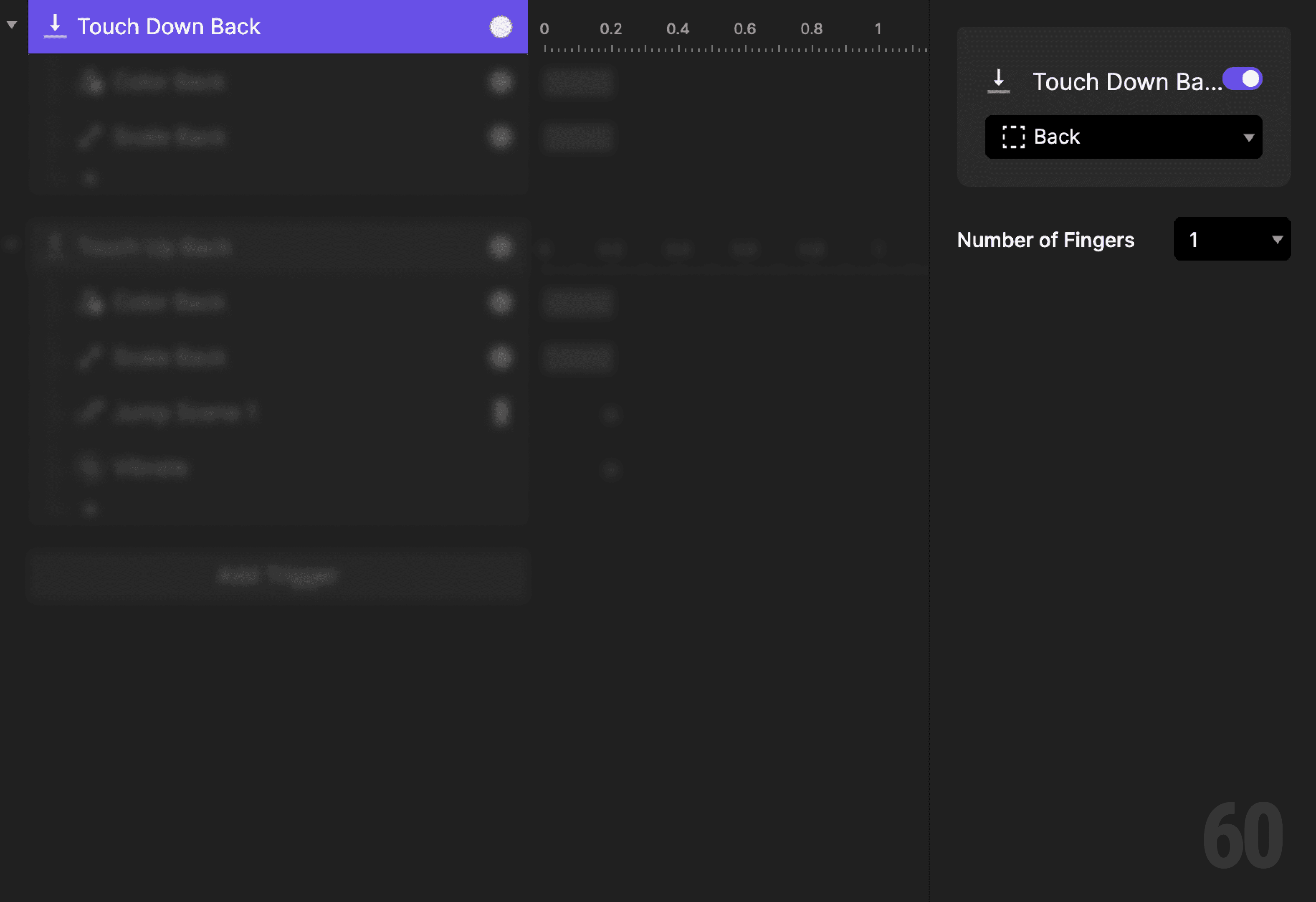

Step 9: Add touch down trigger
Select the Back layer.
Add a Touch Down trigger.

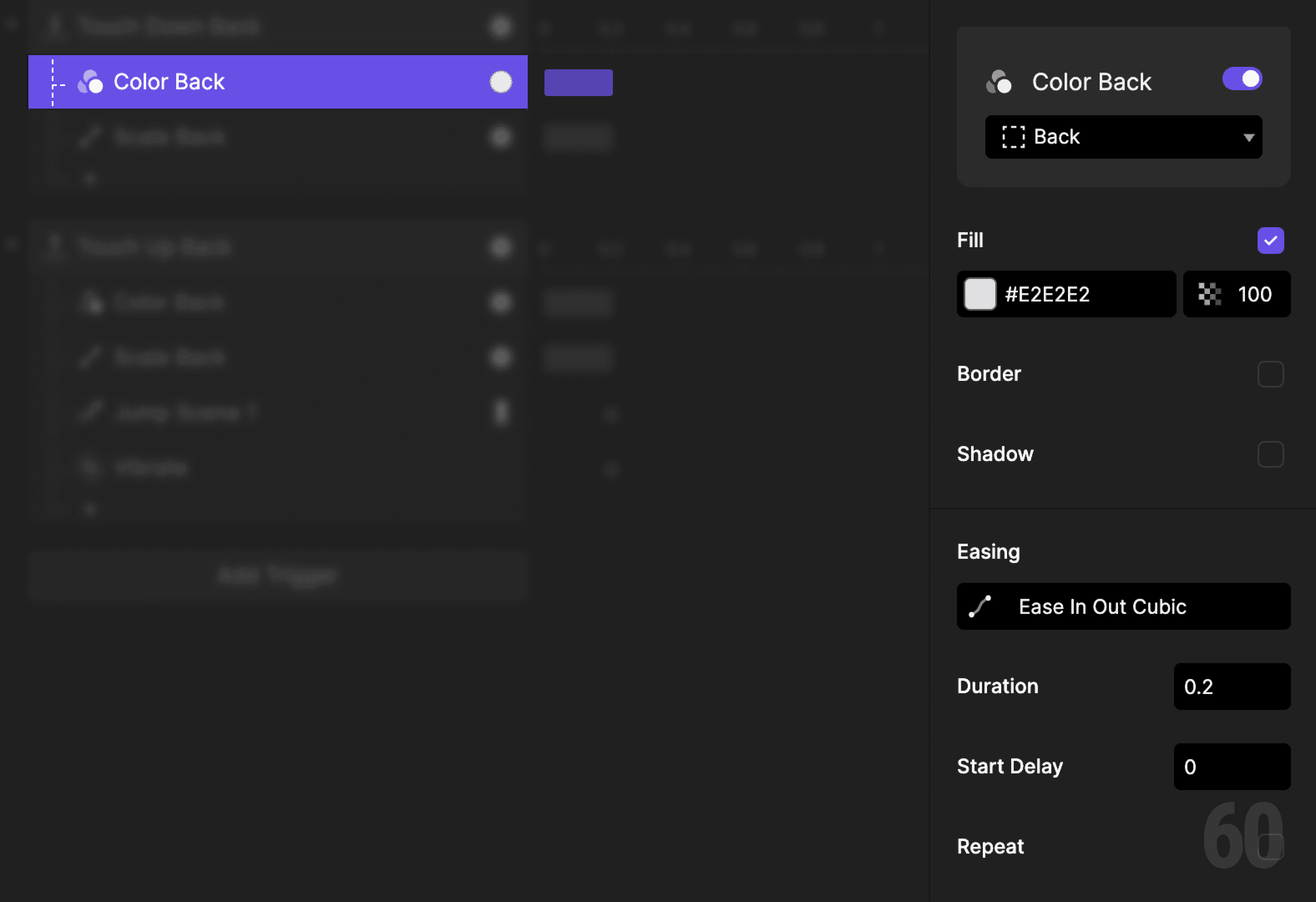

Step 10: Change back button opacity
Add a Color response.
Target: Back
Set color to darker shade.
This acknowledges the press.

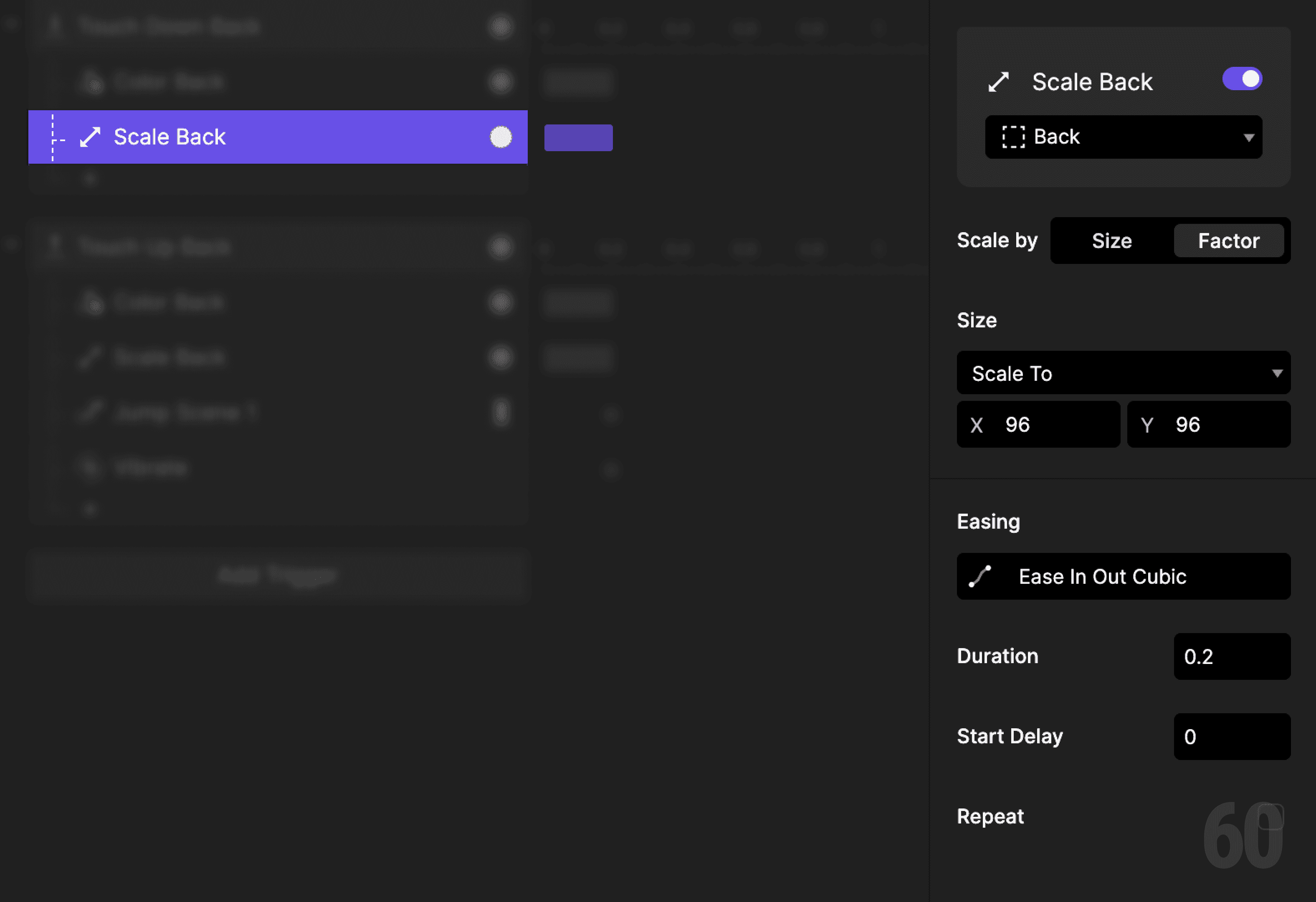

Step 11: Scale the back button down
Add a Scale response.
Target: Back
Scale by Factor
Set X and Y to 96

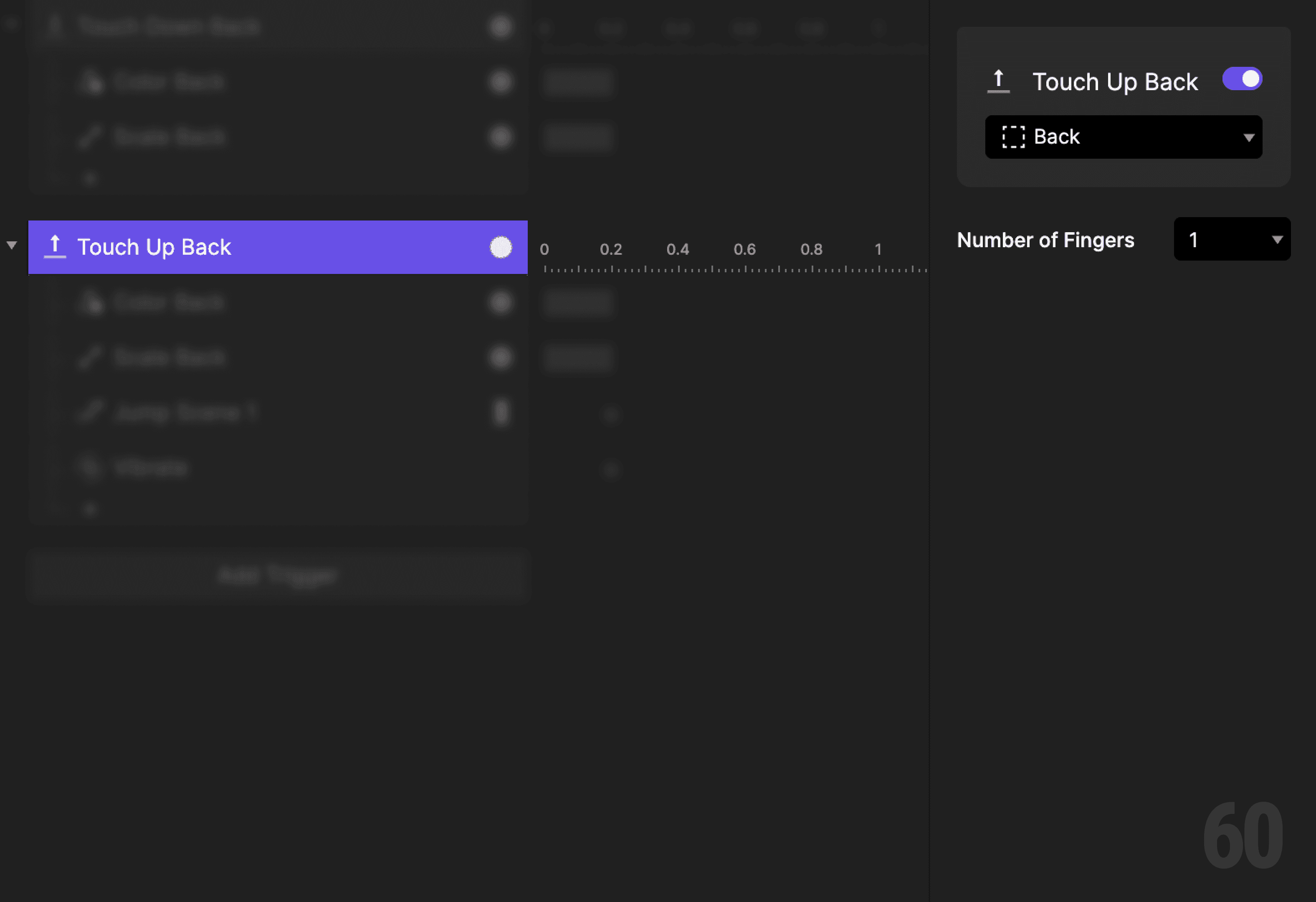

Step 12: Add touch up trigger
Add a Touch Up trigger to the Back layer.

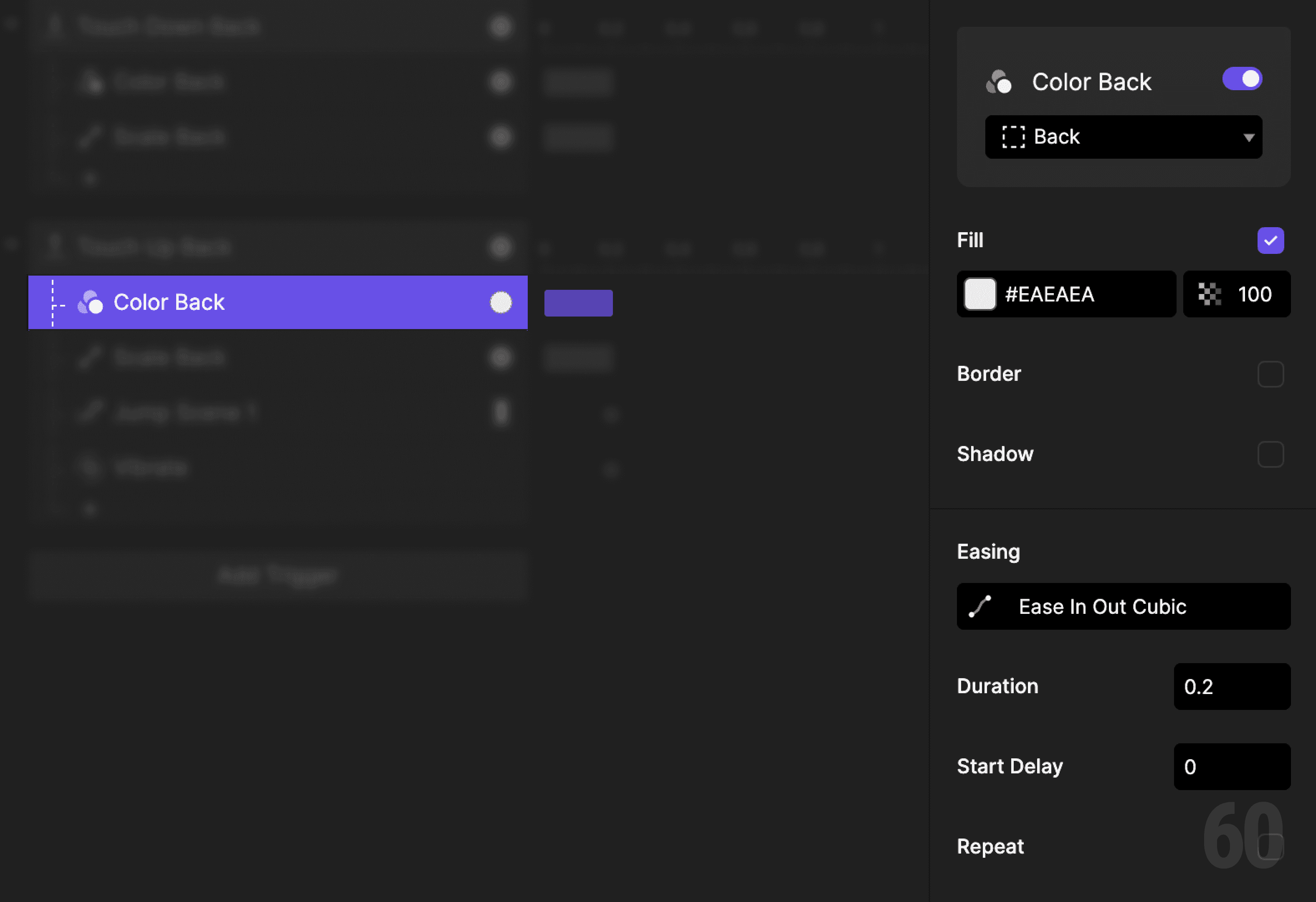

Step 13: Restore back button color
Add a Color response.
Target: Back
Reset color to default

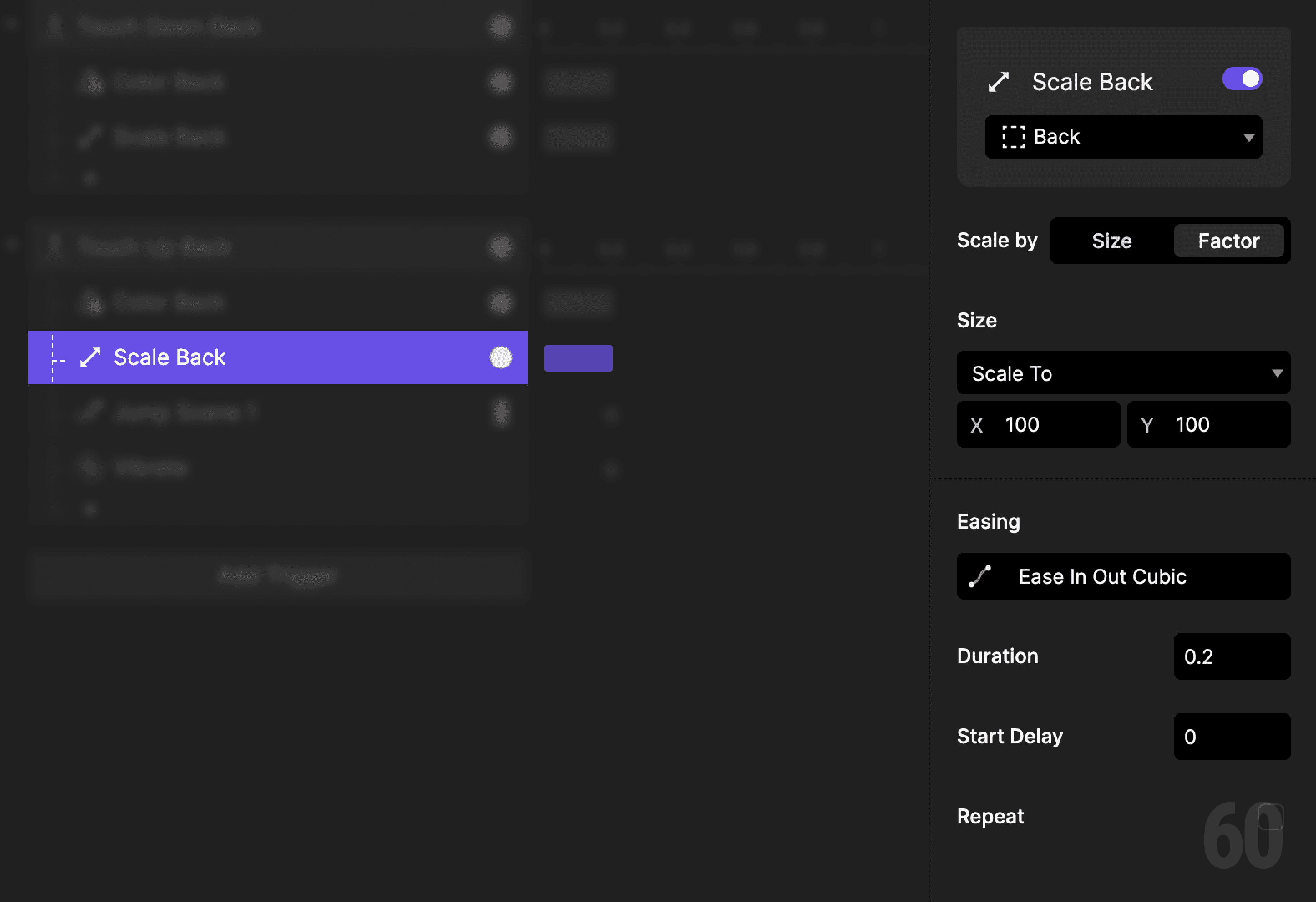

Step 14: Restore back button scale
Add a Scale response.
Target: Back
Reset scale to default

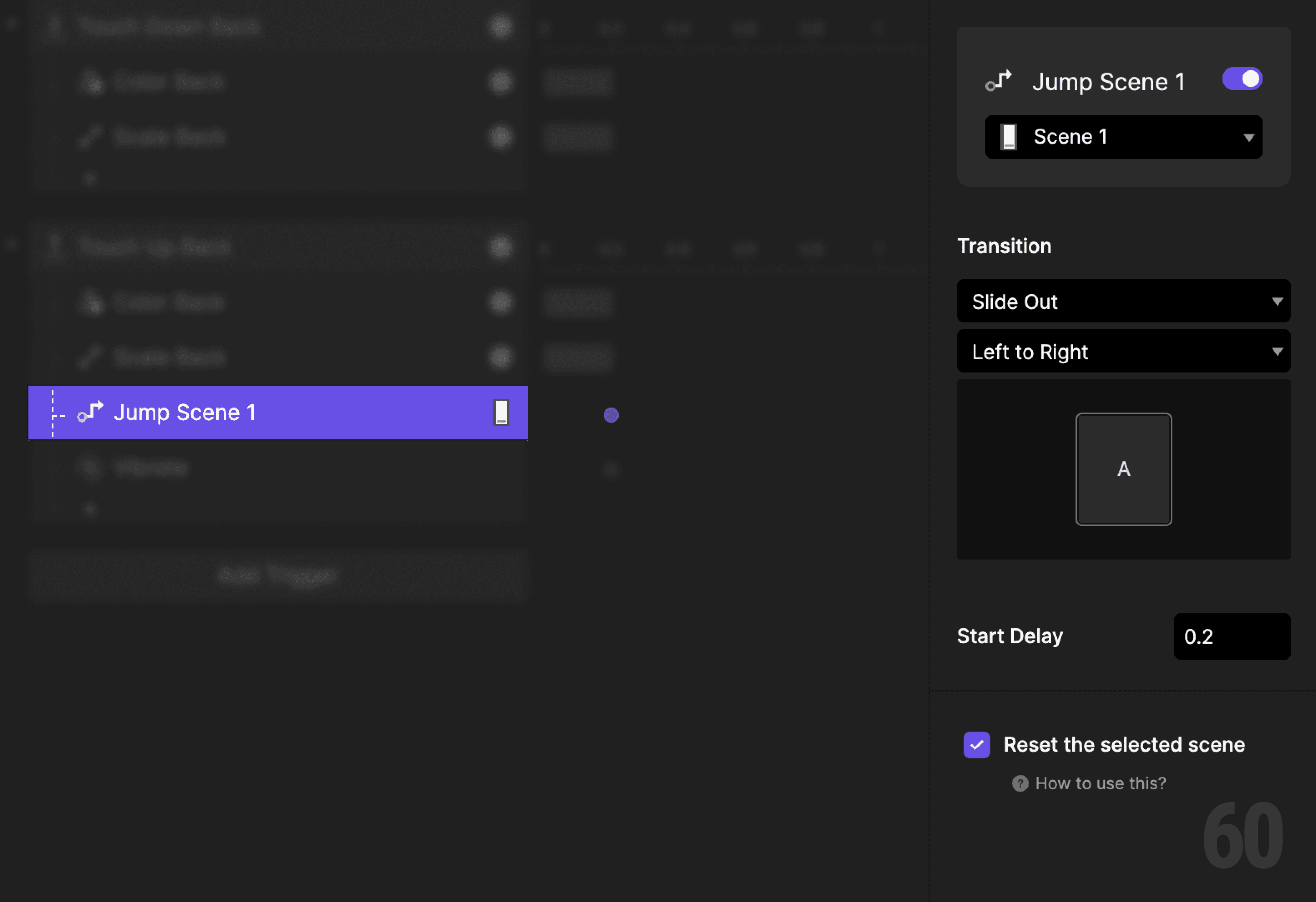

Step 15: Jump back to Scene 1
Add a Jump response.
Destination: Scene 1
Transition: Slide Out
Direction: Left to Right
Delay: 0.2s
This mirrors the forward navigation motion.

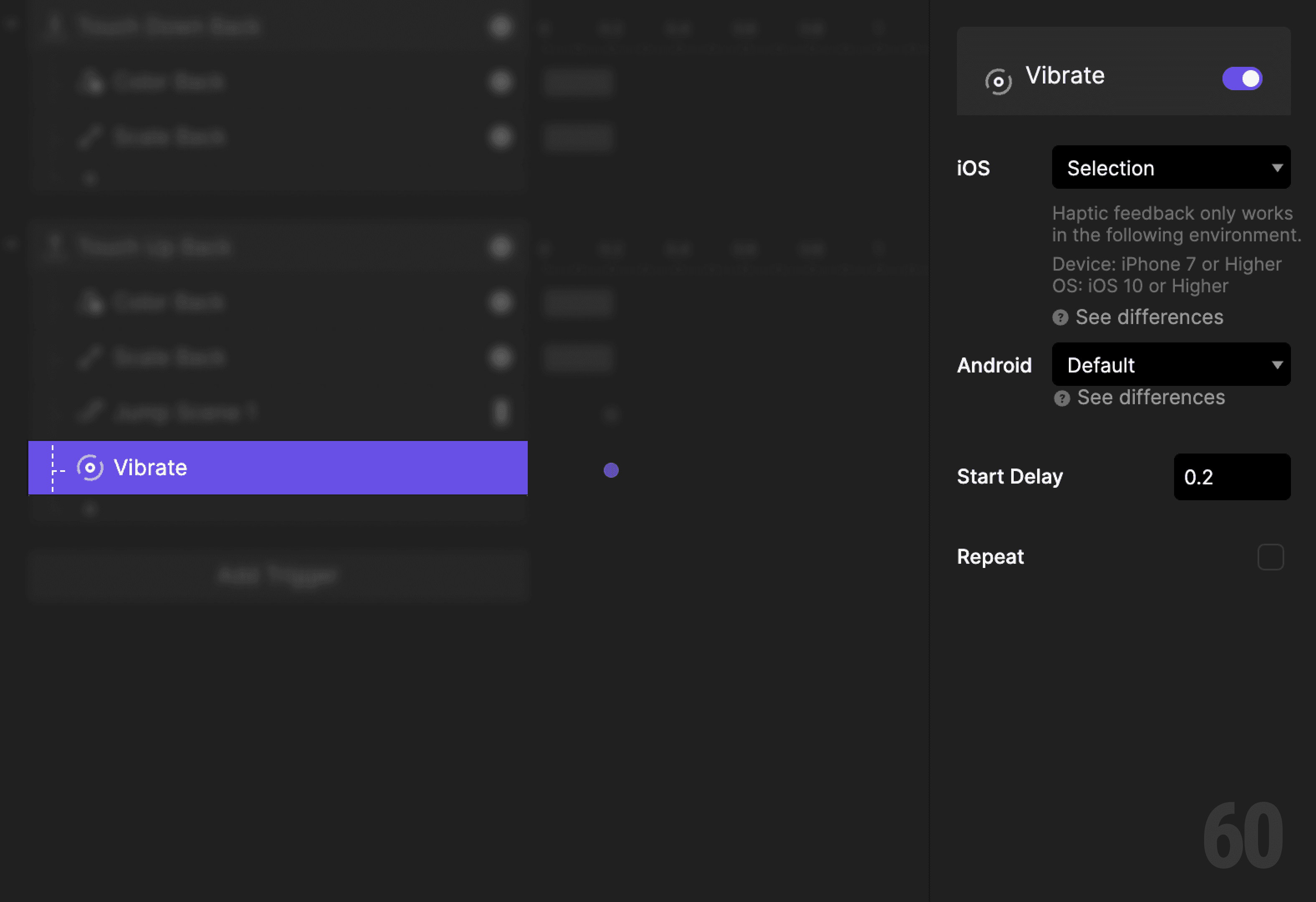

Step 16: Add haptic feedback
Add a Vibrate response.
Delay: 0.2s
The haptic should fire with the transition.
Step 17: Preview and test
Navigate forward and backward repeatedly.
Check for:
Clear press feedback before movement
Consistent transition directions
Symmetry between forward and back navigation
If the motion feels predictable, the interaction is correct.
Try this next
Adjust transition duration and compare feel
Remove delay and notice the difference
Add swipe back support
